Wheel Loader Volvo L350F
BASE MACHINE
PROD NO 31713, L350F, SER NO 1001 -
CAB
PROD NO 31715
PROD NO 33027 S/N 1250-
TRANSMISSION
Part No. 11145759, HTE400
DRIVING AXLES
Part No. 11145757, Front axle
Part No. 11145761, Front axle. 82840
Part No. 11145758, Rear axle
Part No. 11145762, Rear axle. 82840, 82841
ENGINE
Engine number 8188182, D16ELAE3. S/N - 1087
Engine number 8188187, D16E. S/N 1088 -

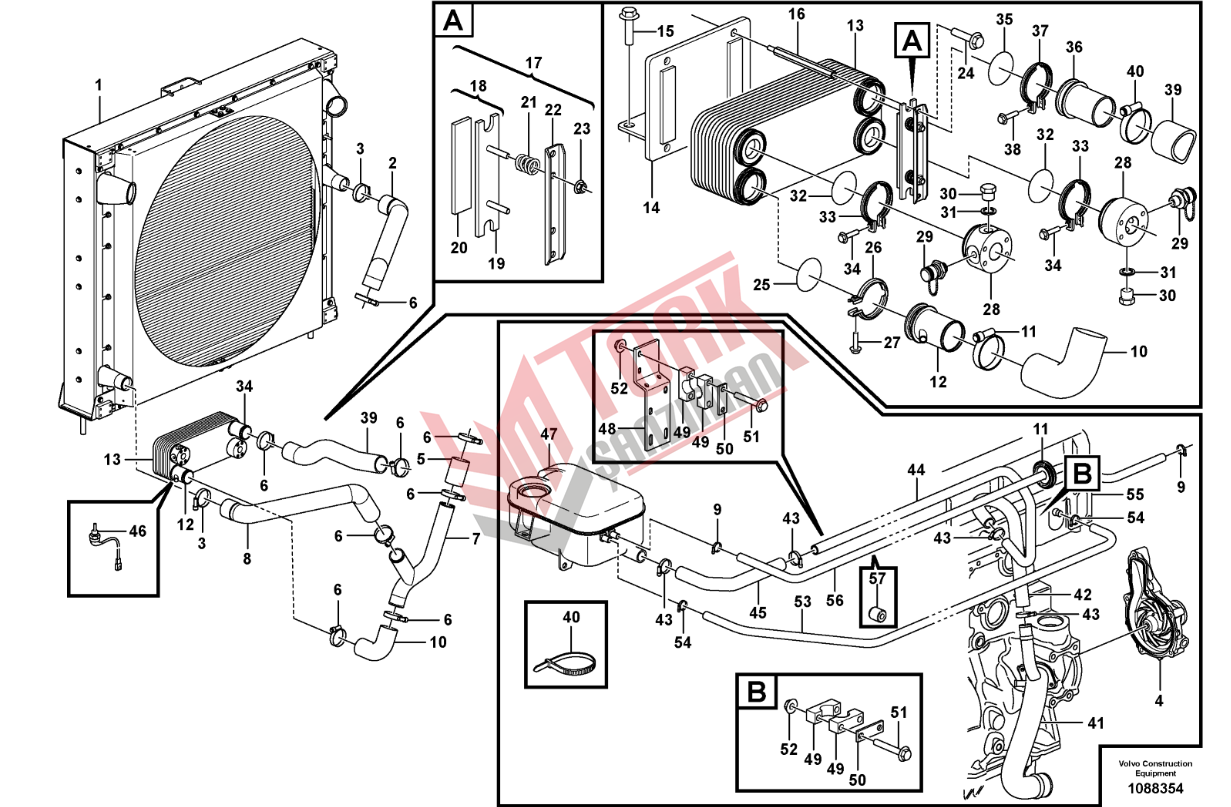

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Radiator | 1 |
| 2 | 15111667 |
Radiator hose | 1 |
| 3 | 993975 |
Hose clamp | 2 |
| 4 | |
Water Pump | 1 |
| 5 | 991663 |
Hose | 1 |
| 6 | 993975 |
Hose clamp | 8 |
| 7 | 11302414 |
Pipe Line | 1 |
| 8 | 11431657 |
Radiator hose | 1 |
| 9 | 943471 |
Hose clamp | 2 |
| 10 | 11302626 |
Radiator hose | 1 |
| 11 | 961957 |
Grommet | 1 |
| 12 | 11431457 |
Tube | 1 |
| 13 | 11033628 |
Heat exchanger | 1 |
| 14 | 11410251 |
Shelf | 1 |
| 14 | 16811722 |
Shelf | 1 |
| 15 | 13965191 |
Screw | 4 |
| 16 | 11302761 |
Spacer | 4 |
| 17 | 11130351 |
Tensioner | 2 |
| 18 | |
•Tensioning plate | 2 |
| 19 | |
••Tensioning plate | 2 |
| 20 | 11130496 |
••Rubber mat | 2 |
| 21 | 11130354 |
•Spring | 4 |
| 22 | |
•Tensioning plate | 2 |
| 23 | 948645 |
•Flange lock nut | 4 |
| 24 | 13945444 |
Screw | 4 |
| 25 | 11445263 |
O-ring | 1 |
| 26 | 1542778 |
V-clamp | 1 |
| 27 | 13948356 |
Flange screw | 1 |
| 28 | 11301132 |
Adapter | 2 |
| 29 | 936444 |
Testing nipple | 2 |
| 30 | 13960632 |
Plug | 2 |
| 31 | 13947624 |
Plane gasket | 2 |
| 32 | 11445263 |
O-ring | 2 |
| 33 | 1542778 |
V-clamp | 2 |
| 34 | 13948356 |
Flange screw | 2 |
| 35 | 11445263 |
O-ring | 1 |
| 36 | 11302406 |
Tube | 1 |
| 37 | 1542778 |
V-clamp | 1 |
| 38 | 13948356 |
Flange screw | 1 |
| 39 | 11411914 |
Radiator hose | 1 |
| 40 | 4881440 |
Cable tie | REQ |
| 41 | |
Coolant Pipe | 1 |
| 42 | 15001052 |
Hose | 1 |
| 43 | 60112443 |
Hose clamp | 4 |
| 44 | 16807186 |
Tube | 1 |
| 44 | 16853363 |
Tube | 1 |
| 45 | 15001052 |
Hose | 1 |
| 46 | 15153124 |
Temperature sensor | 1 |
| 47 | |
Expansion Tank | 1 |
| 48 | |
Bracket | 1 |
| 49 | 11043107 |
Clamp | 2 |
| 49 | 4785479 |
Clamp | 2 |
| 50 | 11003049 |
Cover plate | 2 |
| 50 | 11003050 |
Cover plate | 2 |
| 51 | 13965178 |
Screw | 4 |
| 51 | 968877 |
Flange screw | 4 |
| 52 | 13949278 |
Flange lock nut | 4 |
| 53 | 943367 |
Hose | REQ |
| 54 | 943471 |
Hose clamp | 2 |
| 55 | |
Cylinder head | 1 |
| 56 | 943367 |
Hose | REQ |
| 57 | 11033572 |
Restrictor | 1 |
