WHEEL LOADER VOLVO L250H
BASIC MACHINE
Product number 33047, L250H, Serial number 1005 - 1242
Product number 33047, L250H, Serial number 6001 - 6029
Product number 33047, L250H, Serial number 11001 - 11055
CAB
Product number 11294123
DRIVE AXLES
Part number 56037, AWB 50B, front
Part number 23967, AWB 41, rear
Part number 23968, AWB 41, rear. 84377
TRANSMISSION
Product number 22597, HTL307B
LOADER UNIT
Product number 33860
Product number 33040
ENGINE
Product number 15185564
Replacement version 17272079
Product number 15185565
Replacement version 17272080
Product number 15185566
Replacement version 17433661
Product number 15185567
Replacement version 17429062

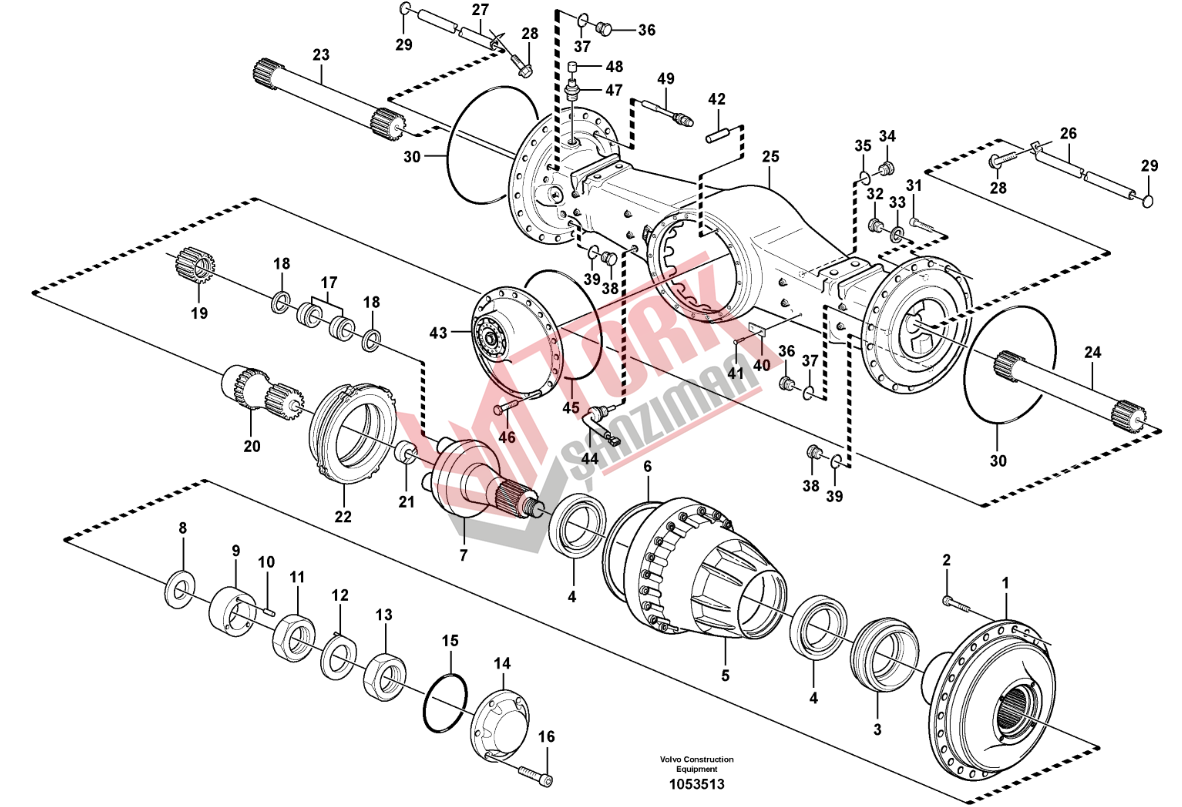

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 15123277 |
Hub | 2 |
| 2 | 15107884 |
•Wheel stud | 60 |
| 3 | 11102685 |
Sealing ring | 2 |
| 11704008 |
•O-ring | 2 | |
| 11704009 |
•O-ring | 2 | |
| 4 | 11997036 |
Roller bearing | 4 |
| 5 | 11102439 |
Hub retainer | 2 |
| 6 | 13976937 |
•Snap ring | 2 |
| 6 | 17246956 |
•Gear ring | 2 |
| 7 | 11035764 |
Planet carrier | 2 |
| 8 | 11035769 |
Shim | REQ |
| 8 | 11035768 |
Shim | REQ |
| 8 | 11035767 |
Shim | REQ |
| 8 | 11035766 |
Shim | REQ |
| 9 | 17295864 |
Washer | 2 |
| 10 | 951954 |
•Spring pin | 6 |
| 11 | 11035779 |
Nut | 2 |
| 12 | 11035960 |
Lock washer | 2 |
| 13 | 11035778 |
Nut | 2 |
| 14 | 11102396 |
Cover | 2 |
| 15 | 13980042 |
O-ring | 2 |
| 16 | 967634 |
Hex. socket screw | 12 |
| 17 | 15010933 |
Bearing | 8 |
| 18 | 914478 |
Snap ring | 8 |
| 19 | 15003253 |
Planet gear | 8 |
| 20 | 15047789 |
Sun gear | 2 |
| 21 | 11035554 |
Washer | 2 |
| 22 | 11103471 |
Brake piston | 2 |
| 23 | 11102176 |
Axle shaft | 1 |
| 24 | 11102175 |
Axle shaft | 1 |
| 25 | 17211668 |
Axle casing | 1 |
| 26 | 11102370 |
Pipe | 1 |
| 27 | 11102370 |
Pipe | 1 |
| 28 | 996328 |
Flange screw | 2 |
| 29 | 996328 |
Flange screw | 2 |
| 30 | 11034910 |
O-ring | 2 |
| 31 | 949544 |
Hex. socket screw | 52 |
| 32 | 13960632 |
Plug | 2 |
| 33 | 13947624 |
Plane gasket | 2 |
| 34 | 11034156 |
Plug | 1 |
| 35 | 958228 |
O-ring | 1 |
| 36 | 13968610 |
Plug | 2 |
| 37 | 13976109 |
O-ring | 2 |
| 38 | 11102187 |
Magnetic plug | 3 |
| 39 | 958228 |
O-ring | 3 |
| 40 | |
Sign | 1 |
| 41 | 950891 |
Drive screw | 2 |
| 42 | 950711 |
Pin | 1 |
| 43 | 15199814 |
Differential carrier | 1 |
| 44 | 15153124 |
Temperature sensor | 1 |
| 45 | 11035026 |
O-ring | 1 |
| 46 | 978952 |
Hexagon screw | 17 |
| 47 | 4871469 |
Air vent valve | 2 |
| 48 | 11034256 |
•Protecting cap | 2 |
| 49 | 11102446 |
Wear Indicator | 2 |
| 976970 |
•O-ring | 2 | |
| 17274787 |
Hub kit | 2 |
