WHEEL LOADER VOLVO L250H
BASIC MACHINE
Product number 33047, L250H, Serial number 1005 - 1242
Product number 33047, L250H, Serial number 6001 - 6029
Product number 33047, L250H, Serial number 11001 - 11055
CAB
Product number 11294123
DRIVE AXLES
Part number 56037, AWB 50B, front
Part number 23967, AWB 41, rear
Part number 23968, AWB 41, rear. 84377
TRANSMISSION
Product number 22597, HTL307B
LOADER UNIT
Product number 33860
Product number 33040
ENGINE
Product number 15185564
Replacement version 17272079
Product number 15185565
Replacement version 17272080
Product number 15185566
Replacement version 17433661
Product number 15185567
Replacement version 17429062

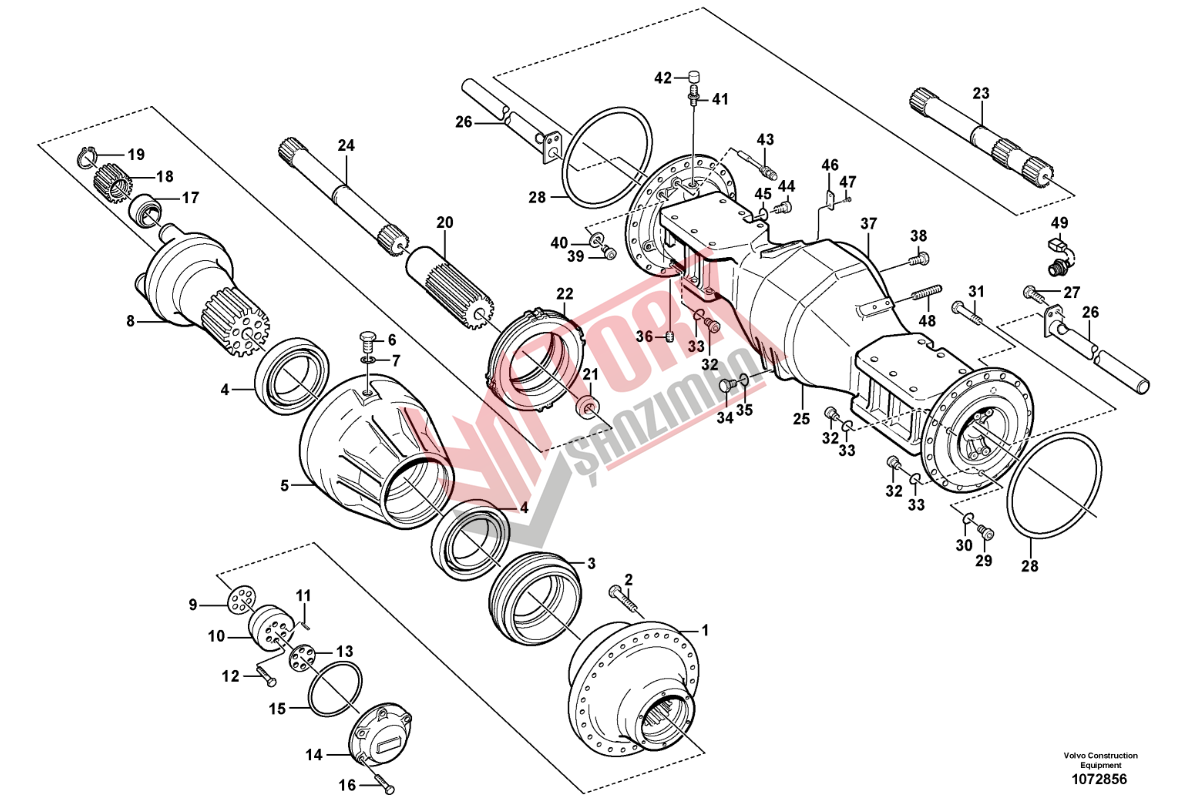

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 15123276 |
Hub | 2 |
| 2 | 15107884 |
•Wheel stud | 60 |
| 3 | 11102516 |
Face Sealing | 2 |
| 11703715 |
•O-ring | 2 | |
| 11703716 |
•O-ring | 2 | |
| 4 | 11102237 |
Roller bearing | 4 |
| 5 | 17367841 |
Hub retainer | 2 |
| 6 | 955361 |
Hexagon screw | 2 |
| 7 | 13947622 |
Plane gasket | 2 |
| 8 | 15052678 |
Planet carrier | 2 |
| 9 | 11102117 |
Shim | REQ |
| 9 | 11102116 |
Shim | REQ |
| 9 | 11102115 |
Shim | REQ |
| 9 | 11102114 |
Shim | REQ |
| 10 | 11102306 |
Washer | 2 |
| 11 | 951954 |
•Spring pin | 6 |
| 12 | 978952 |
Hexagon screw | 12 |
| 13 | 11102120 |
Lock plate | 2 |
| 14 | 11102119 |
Cover | 2 |
| 15 | 990249 |
O-ring | 2 |
| 16 | 13970949 |
Hexagon screw | 12 |
| 17 | 11102061 |
Bearing | 8 |
| 17 | 17399706 |
Roller bearing | 8 |
| 18 | 11102086 |
Planet gear | 8 |
| 18 | 17413857 |
Planet gear | 8 |
| 19 | 914482 |
Snap ring | 8 |
| 20 | 11102200 |
Sun gear | 2 |
| 21 | 11102072 |
Washer | 2 |
| 22 | 15011847 |
Brake piston | 2 |
| 23 | 11102173 |
Drive shaft | 1 |
| 24 | 11102174 |
Drive shaft | 1 |
| 25 | 15122966 |
Axle casing | 1 |
| 26 | 11102370 |
Pipe | 4 |
| 27 | 996328 |
Flange screw | 8 |
| 28 | 11035026 |
O-ring | 3 |
| 29 | 968611 |
Plug | 2 |
| 30 | 967751 |
O-ring | 2 |
| 31 | 949544 |
Hex. socket screw | 60 |
| 32 | 11102187 |
Magnetic plug | 3 |
| 33 | 958228 |
O-ring | 3 |
| 34 | 11034156 |
Plug | 1 |
| 35 | 958228 |
O-ring | 1 |
| 36 | 968145 |
Plug | 2 |
| 37 | 15199811 |
Differential carrier | 1 |
| 38 | 978952 |
Hexagon screw | 17 |
| 39 | 13960632 |
Plug | 2 |
| 40 | 13947624 |
Plane gasket | 2 |
| 41 | 4871469 |
Air vent valve | 2 |
| 42 | 11034256 |
•Protecting cap | 2 |
| 43 | 11102445 |
Wear Indicator | 2 |
| 976970 |
•O-ring | 2 | |
| 44 | 13968610 |
Plug | 2 |
| 45 | 13976109 |
O-ring | 2 |
| 46 | |
Sign | 1 |
| 47 | 950891 |
Drive screw | 2 |
| 48 | 950711 |
Pin | 1 |
| 49 | 15153124 |
Temperature sensor | 1 |
