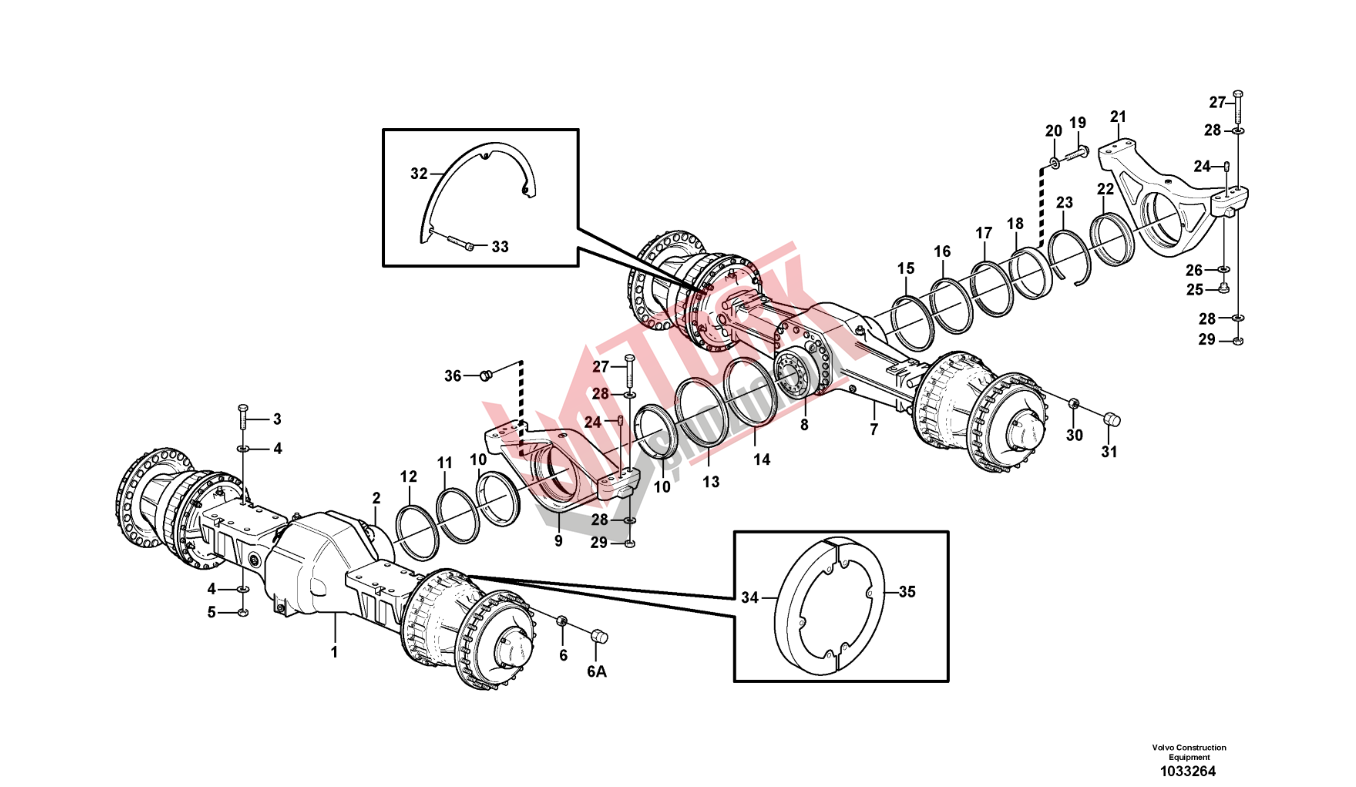

+90 552 671 32 12FRONT AXLE; REAR AXLE > 460/100 Planet axles with fitting parts 56061, 23967, 23968
WHEEL LOADER VOLVO L220G
BASIC MACHINE
PROD NO. 33013, L220G, S/N 12004 -
PROD NO. 33013, L220G, S/N 9001 -
CAB
PROD NO. 11294050
TRANSMISSION
PROD NO. 22575, HTL306
DRIVE AXLES
PROD NO. 56061, AWB 50, front
PROD NO. 23967, AWB 41, rear
PROD NO. 23968, AWB 41, rear. 84377
LOADER UNIT
PROD NO. 33863, LU L220G LUB
PROD NO. 33864, LU 220G LB, 84894
MOTOR
Part number 15049439, D13H-E, (15173113, D13H, AME/After market engine), 85420
Part number 15117870, D13H-F, (15173113, D13H, AME/After market engine), 85421
Part number 15049437, D13F-C, (15173114, D13F, AME/After market engine), 85424
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 56061 (23966) |
Planet shaft | 1 |
| 2 | |
•Diff Carrier | 1 |
| 3 | 15099334 |
Screw | 12 |
| 4 | 13930888 |
Washer | 24 |
| 5 | 11105306 |
Nut | 12 |
| 6 | 947972 |
Wheel nut | 60 |
| 6A | 11100354 |
Nut cap | 60 |
| 7 | 23967 |
Planet shaft | 1 |
| 7 | 23968 |
Planet shaft | |
| 8 | |
•Diff Carrier | 1 |
| 8 | |
•Diff Carrier | |
| 9 | 15029153 |
••Rear axle bridge | 1 |
| 10 | 11703777 |
••Roller bearing | 2 |
| 11 | 11102259 |
•Sealing ring | 1 |
| 12 | 11102262 |
•Sealing ring | 1 |
| 13 | 11102260 |
•Sealing ring | 1 |
| 14 | 11102263 |
•Sealing ring | 1 |
| 15 | 11102264 |
•Sealing ring | 1 |
| 16 | 11102544 |
•Bushing | 1 |
| 17 | 11102624 |
•Sealing ring | 1 |
| 18 | 11102219 |
•Bushing | 1 |
| 19 | 13965192 |
•Screw | 3 |
| 20 | 13947355 |
•Washer | 3 |
| 21 | 11102764 |
•Rear axle mounting | 1 |
| 22 | 11102218 |
••Bushing | 1 |
| 23 | 976935 |
••Retaining ring | 1 |
| 24 | 11102583 |
•Pin | 2 |
| 25 | 13968610 |
•Plug | 3 |
| 26 | 13976109 |
•O-ring | 3 |
| 27 | 13963367 |
Screw | 8 |
| 27 | 963368 |
Hexagon screw | 4 |
| 28 | 930853 |
Plain washer | 24 |
| 29 | 961997 |
Hexagon nut | 12 |
| 30 | 947972 |
Wheel nut | 60 |
| 31 | 11100354 |
Nut cap | 60 |
| 32 | 11180434 |
Protection | |
| 33 | 13949252 |
Allen Hd Screw | |
| 34 | 11180431 |
Protection | |
| 35 | 11180435 |
Protection | |
| 36 | 479979 |
Plug | 2 |
