WHEEL LOADER VOLVO L220G
BASIC MACHINE
PROD NO. 33013, L220G, S/N 12004 -
PROD NO. 33013, L220G, S/N 9001 -
CAB
PROD NO. 11294050
TRANSMISSION
PROD NO. 22575, HTL306
DRIVE AXLES
PROD NO. 56061, AWB 50, front
PROD NO. 23967, AWB 41, rear
PROD NO. 23968, AWB 41, rear. 84377
LOADER UNIT
PROD NO. 33863, LU L220G LUB
PROD NO. 33864, LU 220G LB, 84894
MOTOR
Part number 15049439, D13H-E, (15173113, D13H, AME/After market engine), 85420
Part number 15117870, D13H-F, (15173113, D13H, AME/After market engine), 85421
Part number 15049437, D13F-C, (15173114, D13F, AME/After market engine), 85424

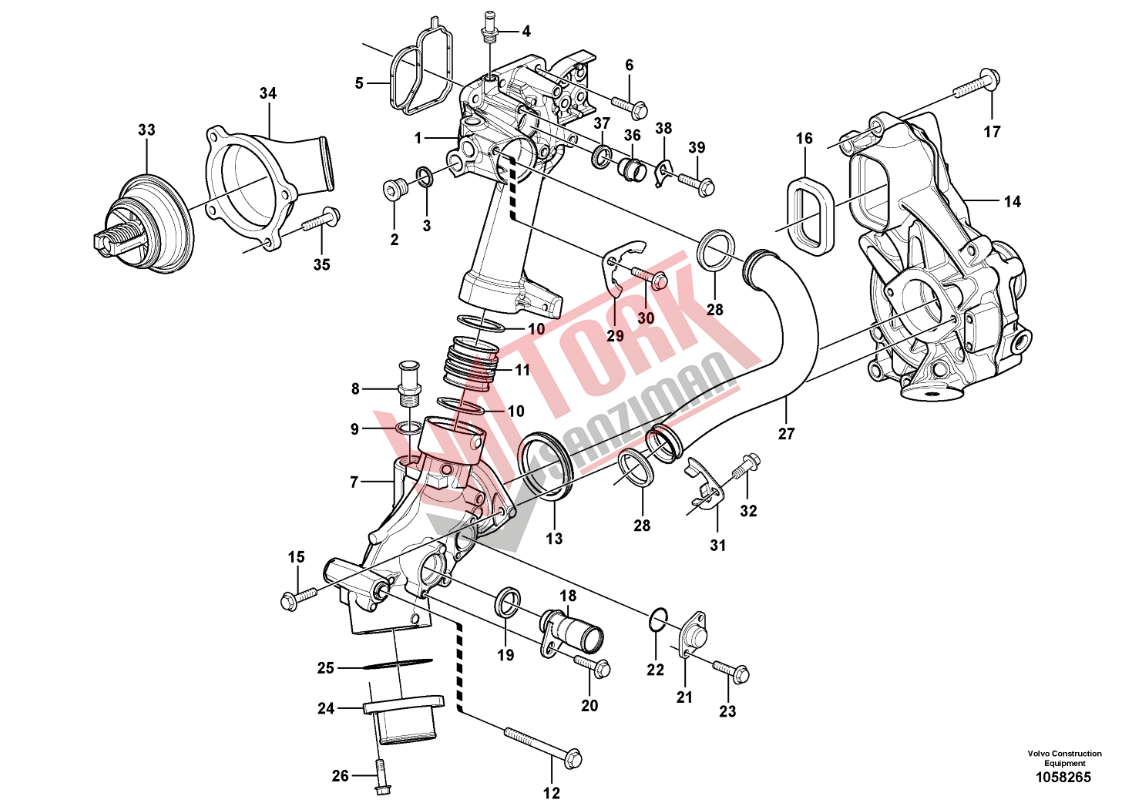

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 21394446 |
Connection pipe | 1 |
| 2 | 13966144 |
•Plug | 1 |
| 3 | 13947624 |
•Plane gasket | 1 |
| 4 | 20715491 |
Hose nipple | 1 |
| 5 | 21298915 |
Sealing strip | 1 |
| 6 | 13945444 |
Screw | 5 |
| 7 | 22531007 (20726992) |
Coolant Pipe | 1 |
| 8 | 948931 |
•Nipple | 1 |
| 9 | 976932 |
•Gasket | 1 |
| 10 | 1547254 |
Sealing ring | 1 |
| 11 | 21021925 |
Connection pipe | 1 |
| 12 | 13965190 |
Screw | 1 |
| 13 | 975697 |
O-ring | 1 |
| 14 | |
Water Pump | 1 |
| 15 | 946671 |
Flange screw | 2 |
| 16 | 20430678 |
Sealing ring | 1 |
| 17 | 13965185 |
Screw | 6 |
| 18 | 15156983 |
Connecting pipe | 1 |
| 19 | 1547252 |
Sealing ring | 1 |
| 20 | 946440 |
Flange screw | 1 |
| 21 | 471752 |
Cover | 1 |
| 22 | 975664 |
O-ring | 1 |
| 23 | 13946544 |
Screw | 2 |
| 24 | 3943401 |
Tube | 1 |
| 25 | 13975675 |
O-ring | 1 |
| 26 | 946440 |
Flange screw | 2 |
| 27 | 20879372 |
Pipe | 1 |
| 28 | 1547253 |
Sealing ring | 2 |
| 29 | 21174150 |
Lock brace | 1 |
| 30 | 946440 |
Flange screw | 1 |
| 31 | 21174150 |
Lock brace | 1 |
| 32 | 946440 |
Flange screw | 1 |
| 33 | 21412639 |
Thermostat | 1 |
| 34 | 21861948 (21519562) |
Cover | 1 |
| 35 | 13973924 |
Flange screw | 4 |
| 36 | 20845995 |
Plug | 1 |
| 37 | 1547252 |
Sealing ring | 1 |
| 38 | 1546531 (20844430) |
Lock brace | 1 |
| 39 | 13946173 |
Screw | 1 |
| 20777630 |
Decal | 1 |
