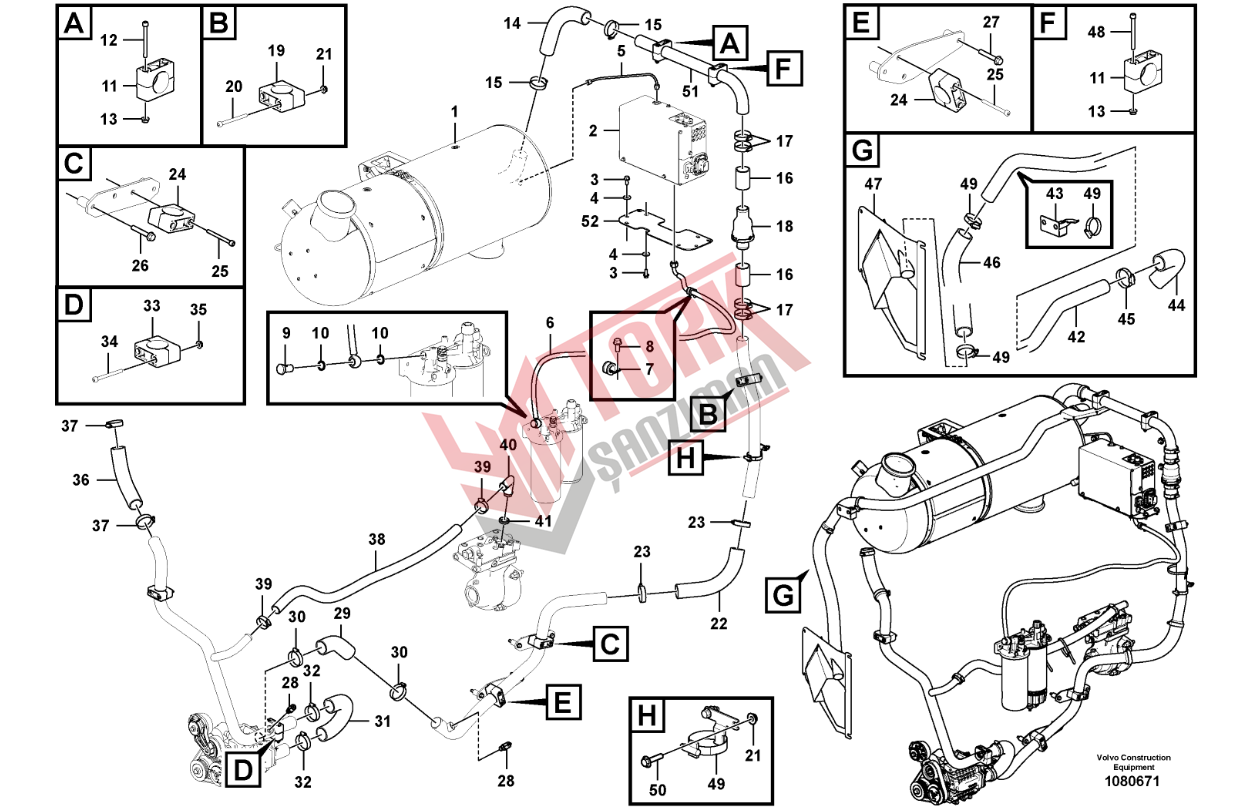

YM Güç Tork - 254/100 Combustion air system 85420, 85421 - L220G

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
1		Burner	1
2		Control Unit	1
3	946173	Flange screw	8
4	960141	Plain washer	8
5	15128035	Fuel hose	1
6	15094204	Fuel hose	1
7	949747	Clamp	1
8	946173	Flange screw	1
9	7026013	Hollow screw	1
10	7011998	Gasket	2
11	11020388	Clamp	2
12	13959215	Screw	2
13	949278	Flange lock nut	4
14	15083483	Hose	1
15	11059296	Hose clamp	2
16	15160459	Hose	2
17	11059296	Hose clamp	4
18	21327626	Non-return valve	1
19	11020388	Clamp	1
20	959214	Hex. socket screw	2
21	949278	Flange lock nut	4
22	15083483	Hose	1
23	11059296	Hose clamp	2
24	11020388	Clamp	2
25		Allen Head Screw	4
26	965179	Flange screw	2
27	965179	Flange screw	2
28	936446	Testing nipple	2
29	15083466	Hose	1
30	11059296	Hose clamp	2
31	15096831	Hose	1
32	11059296	Hose clamp	2
33	11020388	Clamp	2
34		Allen Head Screw	4
35	949278	Flange lock nut	2
36	15160939	Hose	1
37	11059296	Hose clamp	2
38	969149	Hose	REQ
39	11059294	Hose clamp	2
40	17422812	Inlet pipe	1
41	471708	Sealing ring	1
42	16871236	Pipe	1
43	16872184	Bracket	1
44	16871939	Hose	1
45	943478	Hose clamp	1
46	949478	Hose	REQ
47	16871346	Air inlet	1
48	959214	Hex. socket screw	2
49	943477	Hose clamp	4
50	946934	Flange screw	2
51	15160283	Pipe	1
52	15159487	Bracket	1
