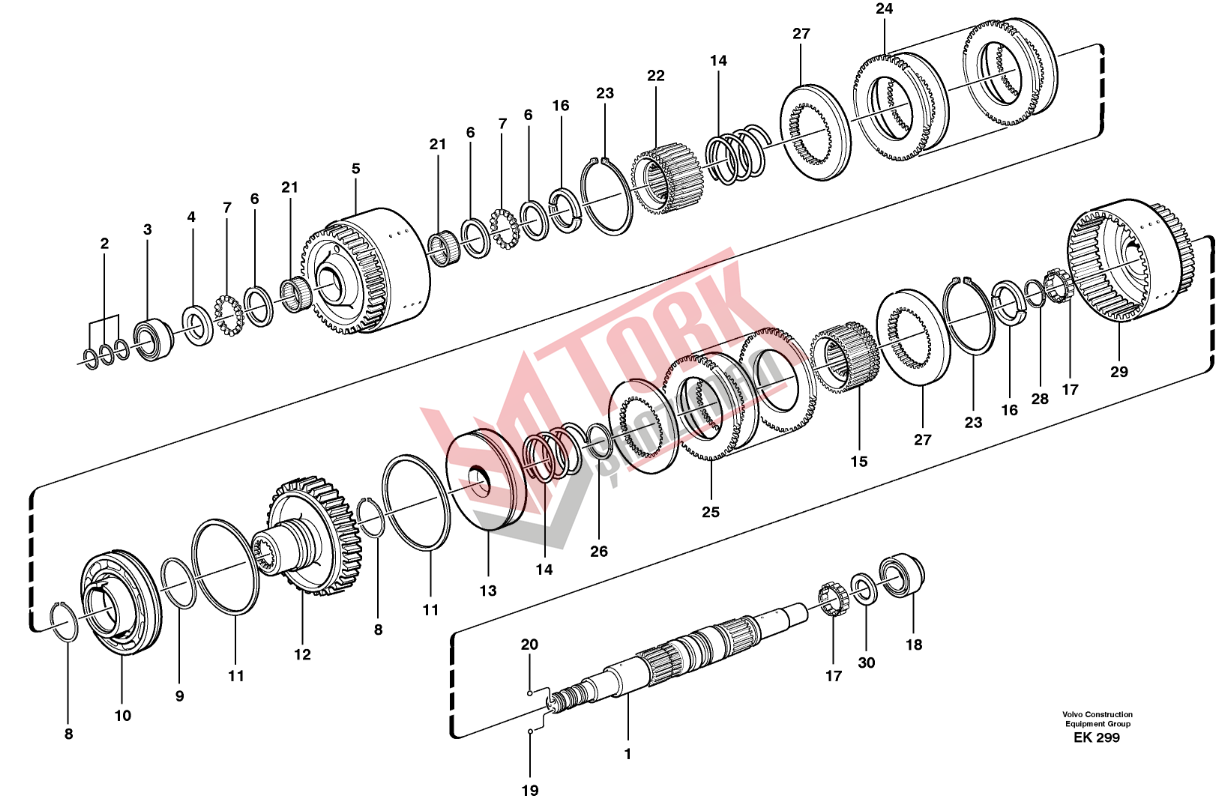

+90 552 671 32 12TRANSMISSION, HYDRAULIC CONTROL > 421/200 Hydraulic clutch, forward/ 1 st speed
WHEEL LOADER VOLVO L220E
BASIC MACHINE
PROD NO 33840, L220E, S/N 4003 - 5020
CAB
PROD NO 33827, Care Cab II
TRANSMISSION
PROD NO 22544, HTE305
DRIVING AXLE
PROD NO 23876, AWB 50, front
PROD NO 23893, AWB 50, front, 80674
PROD NO 23883, AWB 41, rear
PROD NO 23896, AWB 41, rear , 80563, 80674
LOADING UNIT
PROD NO 33812
PROD NO 33837, 82108
PROD NO 33821, Long Boom 93583
ENGINE
Part No 8188761, Type D12DLBE3
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 11144018 |
Hydraulic clutch | 1 | |
| 1 | 11703826 |
•Clutch shaft | 1 |
| 2 | 11037814 |
•Piston ring | 3 |
| 3 | 181006 |
•Roller bearing | 1 |
| 4 | 11037538 |
•Washer | 1 |
| 5 | 11038401 |
•Gear | 1 |
| 6 | 11037527 |
•Thrust washer | 3 |
| 7 | 184055 |
•Thrust needle roller assy | 2 |
| 8 | 11037595 |
•Lock ring | 2 |
| 9 | 11037515 |
•Piston ring | 1 |
| 10 | 11037517 |
•Piston | 1 |
| 11 | 11037516 |
•Piston ring | 2 |
| 12 | 11037654 |
•Partition wall | 1 |
| 13 | 11037514 |
•Piston | 1 |
| 14 | 11037652 |
•Spring | 2 |
| 15 | 11037518 |
•Clutch hub | 1 |
| 16 | 11037525 |
•Retainer | 2 |
| 17 | 11145404 |
•Roller cage | 2 |
| 18 | 11145390 |
•Bearing | 1 |
| 19 | 184645 |
•Ball | 1 |
| 20 | 11037637 |
•Ball | 1 |
| 21 | 15155241 (181564) |
•Needle roller assembly | 2 |
| 22 | 15079751 (11037521) |
•Clutch hub | 1 |
| 23 | 11037596 |
•Lock ring | 2 |
| 24 | 15035796 |
•Disc kit | 1 |
| 25 | 15035797 |
•Disc kit | 1 |
| 26 | 11037513 |
•Piston ring | 1 |
| 27 | 11037642 |
•Pressure Plate | REQ |
| 11037643 |
•Pressure Plate | REQ | |
| 11037644 |
•Pressure Plate | REQ | |
| 11037645 |
•Pressure Plate | REQ | |
| 28 | 11037622 |
•Wear ring | 1 |
| 29 | 11038402 |
•Gear | 1 |
| 30 | 15139489 (11038834) |
•Wear ring | 1 |
