WHEEL LOADER VOLVO L220E
BASIC MACHINE
PROD NO 33840, L220E, S/N 4003 - 5020
CAB
PROD NO 33827, Care Cab II
TRANSMISSION
PROD NO 22544, HTE305
DRIVING AXLE
PROD NO 23876, AWB 50, front
PROD NO 23893, AWB 50, front, 80674
PROD NO 23883, AWB 41, rear
PROD NO 23896, AWB 41, rear , 80563, 80674
LOADING UNIT
PROD NO 33812
PROD NO 33837, 82108
PROD NO 33821, Long Boom 93583
ENGINE
Part No 8188761, Type D12DLBE3

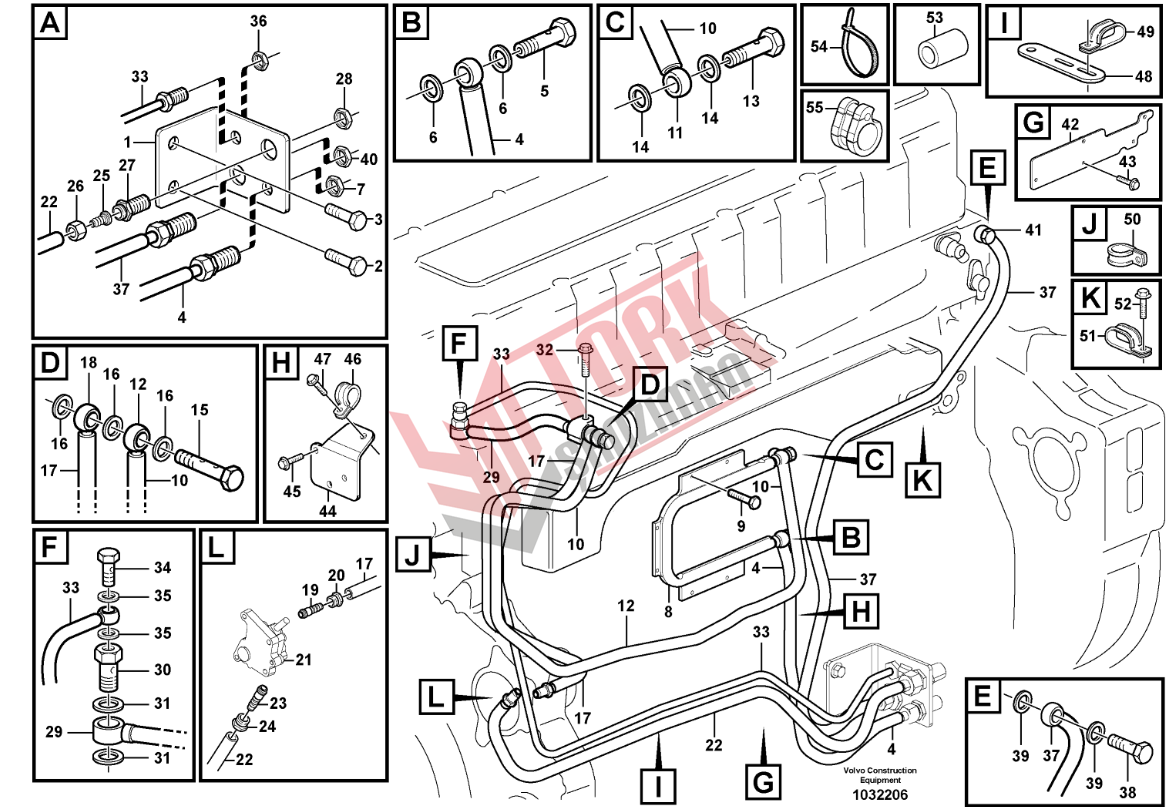

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11128967 |
Bracket | 1 |
| 2 | 13946173 |
Screw | 1 |
| 3 | 946441 |
Flange screw | 1 |
| 4 | 15015108 (11128906) |
Fuel pipe | 1 |
| 5 | 991048 |
Hollow screw | 1 |
| 6 | 20852764 |
Sealing ring | 2 |
| 7 | 957019 |
Hexagon nut | 1 |
| 8 | 20562394 |
Radiator | 1 |
| 9 | 975979 |
Six point socket screw | 6 |
| 15015105 (11128794) |
Fuel pipe | 1 | |
| 10 | 978881 |
•Tube | REQ |
| 11 | 977753 |
•Banjo nipple | 1 |
| 12 | 977754 |
•Banjo nipple | 1 |
| 13 | 991048 |
•Hollow screw | 1 |
| 14 | 20852764 |
•Sealing ring | 2 |
| 15 | 8148244 |
Overflow valve | 1 |
| 16 | 20852765 |
Sealing ring | 3 |
| 11423050 |
Fuel pipe | 1 | |
| 17 | 978881 |
•Tube | REQ |
| 18 | 977754 |
•Banjo nipple | 1 |
| 19 | 979257 |
•Nipple | 1 |
| 20 | 1677534 |
•Fitting screw | 1 |
| 21 | |
Fuel pump | 1 |
| 11128904 |
Fuel pipe | 1 | |
| 22 | 978881 |
•Tube | REQ |
| 23 | 979257 |
•Nipple | 1 |
| 24 | 1677534 |
•Fitting screw | 1 |
| 25 | 977756 |
•Nipple | 1 |
| 26 | 956985 |
•Fitting nut | 1 |
| 27 | 957084 |
•Nipple | 1 |
| 28 | 957020 |
Hexagon nut | 1 |
| 29 | 15017879 (3183366) |
Fuel pipe | 1 |
| 30 | 20478064 |
Hollow screw | 1 |
| 31 | 20852765 |
Sealing ring | 2 |
| 32 | 13947760 |
Screw | 1 |
| 33 | 11128907 |
Fuel pipe | 1 |
| 34 | 21010372 (20741620) |
Hollow screw | 1 |
| 35 | 20852762 |
Sealing ring | 2 |
| 36 | 957018 |
Hexagon nut | 1 |
| 37 | 15015107 (11128905) |
Fuel pipe | 1 |
| 38 | 991046 |
Hollow screw | 1 |
| 39 | 20852765 |
Sealing ring | 2 |
| 40 | 957021 |
Hexagon nut | 1 |
| 41 | |
Cylinder head | 1 |
| 42 | 11128962 |
Bracket | 1 |
| 43 | 13946173 |
Screw | 3 |
| 44 | 11423144 |
Bracket | 1 |
| 45 | 13946173 |
Screw | 2 |
| 46 | 13949747 |
Clamp | 6 |
| 47 | 946440 |
Flange screw | 4 |
| 48 | 13965534 |
Bracket | 1 |
| 49 | 981664 |
Clamp | 3 |
| 50 | 990732 (942542) |
Clamp | 1 |
| 51 | 13945301 |
Clamp | 1 |
| 52 | 946470 |
Flange screw | 1 |
| 13948217 |
Screw | 1 | |
| 946441 |
Flange screw | 1 | |
| 53 | 848229 |
Spacer sleeve | 1 |
| 821540 |
Spacer sleeve | 1 | |
| 54 | 4881440 |
Cable tie | REQ |
| 55 | 8143276 |
Cable Ptct | 1 |
