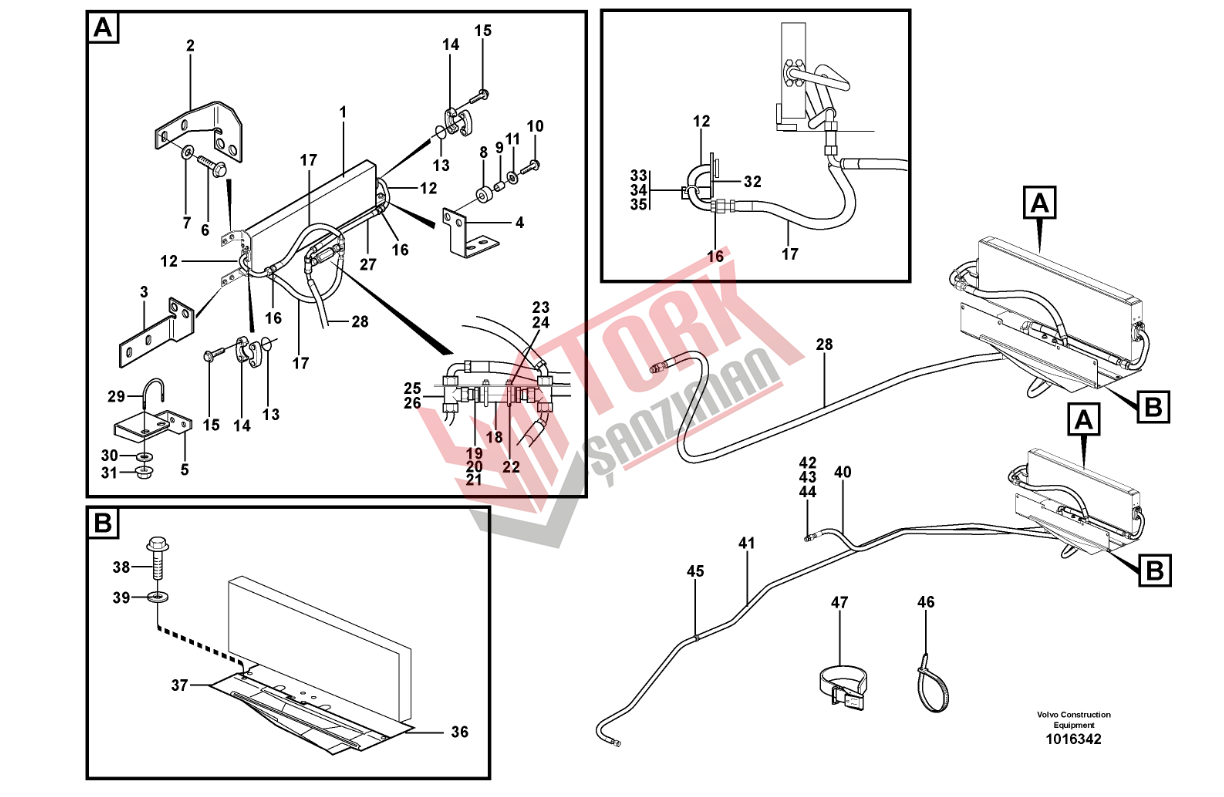

YM Güç Tork - 491/200 Oil cooler 83143, 83144 - L220E

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
1	11033360	Oil cooler	1
2	11411208	Anchorage	1
3	11410678	Anchorage	1
4	11410620	Anchorage	1
5	11410619	Anchorage	1
6	946441	Flange screw	6
7	13960143	Washer	6
8	11024753	Rubber damper	12
9	4951048	Tube	6
10	946671	Flange screw	6
11	11117464 (13960141)	Plain washer	6
12	11410630	Adapter	3
13	990756 (14215715)	Sealing ring	2
14	935730	Flange half	4
15	13945444	Screw	8
16	990739 (4880663)	O-ring	3
17	11163022	Hose assembly	2
18	15075283 (11410631)	Non-return valve	1
19	13933881	Nipple	2
20	990739 (4880663)	•O-ring	2
21	14211859	•Sealing ring	2
22	11410590	Clamp	2
23	11117464 (13960141)	Plain washer	4
24	13945408	Nut	4
25	935877	T-nipple	2
26	990739 (4880663)	•O-ring	4
27	11410591	Hose assembly	1
28	11410588	Hose assembly	1
29	4739981	Clamp	1
30	960139	Plain washer	2
31	13945407	Nut	2
32	11410593	Anchorage	1
33	4739981	Clamp	1
34	960139	Plain washer	2
35	13945407	Nut	2
36	11410681	Floor plate	1
37	11410658	Floor plate	1
38	13946173	Screw	1
39	11117464 (13960141)	Plain washer	1
40	11410690	Hose assembly
41	11410682	Hose assembly
42	935037	Nipple
43	990739 (4880663)	•O-ring
44	14211864	•Sealing ring
45	13977600 (977600)	Clamp
46	4881440	Cable tie
47	11104606	Retaining strap	-

1

Oil cooler

1

2

Anchorage

1

3
