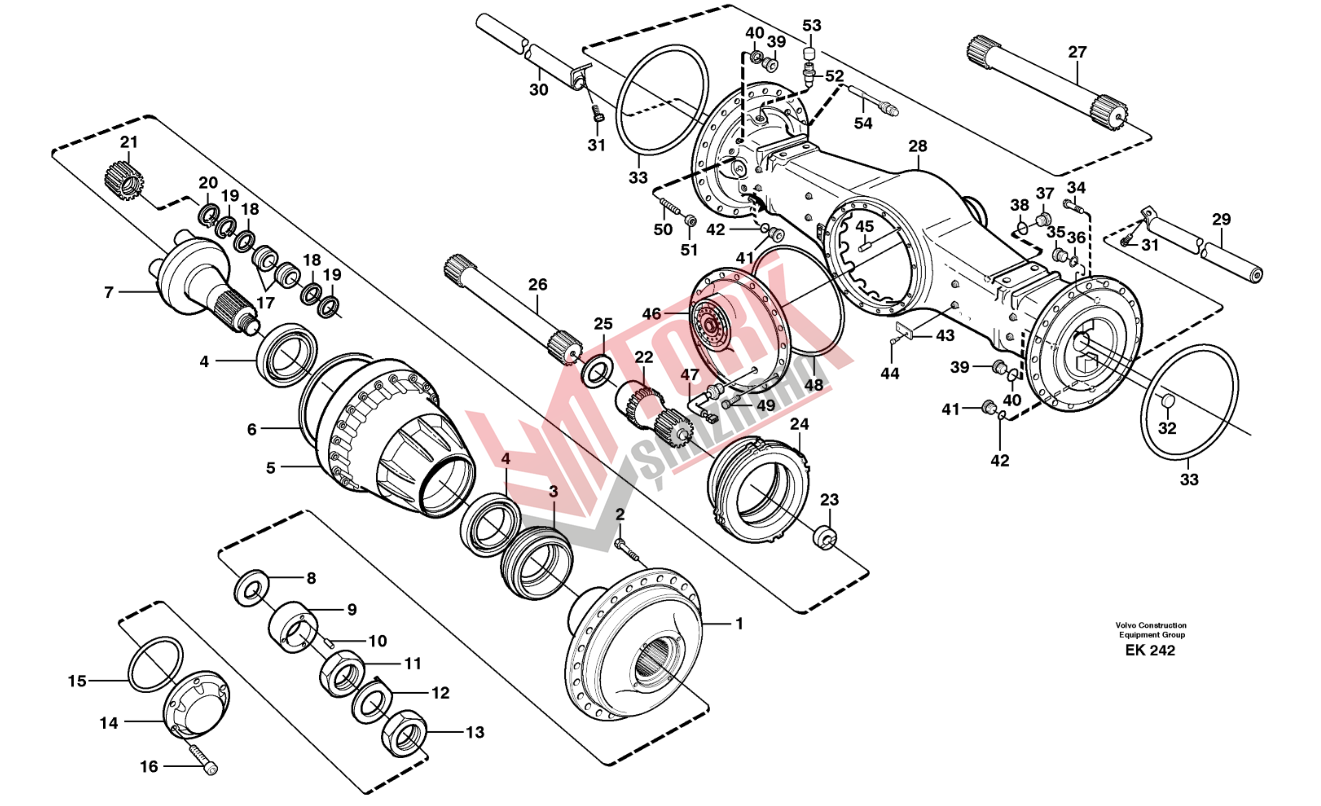

FRONT AXLE; REAR AXLE > 463/100 Planet shaft, rear 23883, 23896

WHEEL LOADER VOLVO L220E

BASIC MACHINE
PROD NO 33823, L220E, S/N 2001 - 3999

CAB
PROD NO 33827, Care Cab II
PROD NO 33822, Replacement version

TRANSMISSION
PROD NO 22534, HTE305, S/N - 2408
PROD NO 22544, HTE305, S/N 2409 -

DRIVING AXLE
PROD NO 23876, AWB 50, front
PROD NO 23893, AWB 50, front, 80674
PROD NO 23883, AWB 41, rear
PROD NO 23896, AWB 41, rear , 80563, 80674

LOADING UNIT
PROD NO 33812
PROD NO 33837
PROD NO 33821, Long Boom (93583)

ENGINE
Part No 8188169, Type D12CLBE2, S/N - 2888
Part No 8188774, Type D12CLBE2, S/N 2889 - 3999

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
	23883	Planet shaft	1
	23896	Planet shaft
1	15123277	•Hub	2
2	15107884	•Wheel stud	60
3	11102685	•Sealing ring	2
	11704008	••O-ring	2
	11704009	••O-ring	2
4	11997036	•Roller bearing	2
5	11102439	•Hub retainer	2
6	13976937	••Snap ring	2
	17246956	••Gear ring	2
7	11035764	•Planet carrier	2
8	11035769	•Shim	REQ
	11035768	•Shim	REQ
	11035767	•Shim	REQ
	11102775	•Shim	REQ
9	11102307	•Washer	2
10	951954	••Spring pin	6
11	11035779	•Nut	2
12	11035960	•Lock washer	2
13	11035778	•Nut	2
14	11102396	•Cover	2
15	13980042	•O-ring	2
16	967634	•Hex. socket screw	12
17	11035642	•Bearing	8
18	11035004	•Guide ring	16
19	13977093	•Snap ring	16
20	914478	•Snap ring	8
21	11035821	•Planet gear	8
22	11102226	•Sun gear	2
23	11035554	•Washer	2
24		•Brake	2
25	11035365	•Washer	2
26	11102176	•Axle shaft	1
27	11102175	•Axle shaft	1
28	11102438	•Axle casing	1
29	11103004	•Pipe	1
30	11102289	•Pipe	1
31	946440	•Flange screw	2
32	955102	•Expansion plug	2
33	11034910	•O-ring	2
34	949544	•Hex. socket screw	52
35	13960632	•Plug	2
36	13947624	•Plane gasket	2
37	11034156	•Plug	1
38	958228	•O-ring	1
39	13968610	•Plug	2
40	13976109	•O-ring	2
41	11102187	•Magnetic plug	3
42	958228	•O-ring	3
43		•Sign	1
44	950891	•Drive screw	2
45	950711	•Pin	1
46		•Diff Carrier	1
		•Diff Carrier
47	11419485	•Temperature sensor	1
48	11035026	•O-ring	1
49	978952	•Hexagon screw	17
50	11035450	•Screw	4
51	955793	•Hexagon nut	4
52	4871469	•Air vent valve	2
53	11034256	••Protecting cap	2
54		•Wear indicator	2
