WHEEL LOADER VOLVO L220E
BASIC MACHINE
PROD NO 33823, L220E, S/N 2001 - 3999
CAB
PROD NO 33827, Care Cab II
PROD NO 33822, Replacement version
TRANSMISSION
PROD NO 22534, HTE305, S/N - 2408
PROD NO 22544, HTE305, S/N 2409 -
DRIVING AXLE
PROD NO 23876, AWB 50, front
PROD NO 23893, AWB 50, front, 80674
PROD NO 23883, AWB 41, rear
PROD NO 23896, AWB 41, rear , 80563, 80674
LOADING UNIT
PROD NO 33812
PROD NO 33837
PROD NO 33821, Long Boom (93583)
ENGINE
Part No 8188169, Type D12CLBE2, S/N - 2888
Part No 8188774, Type D12CLBE2, S/N 2889 - 3999

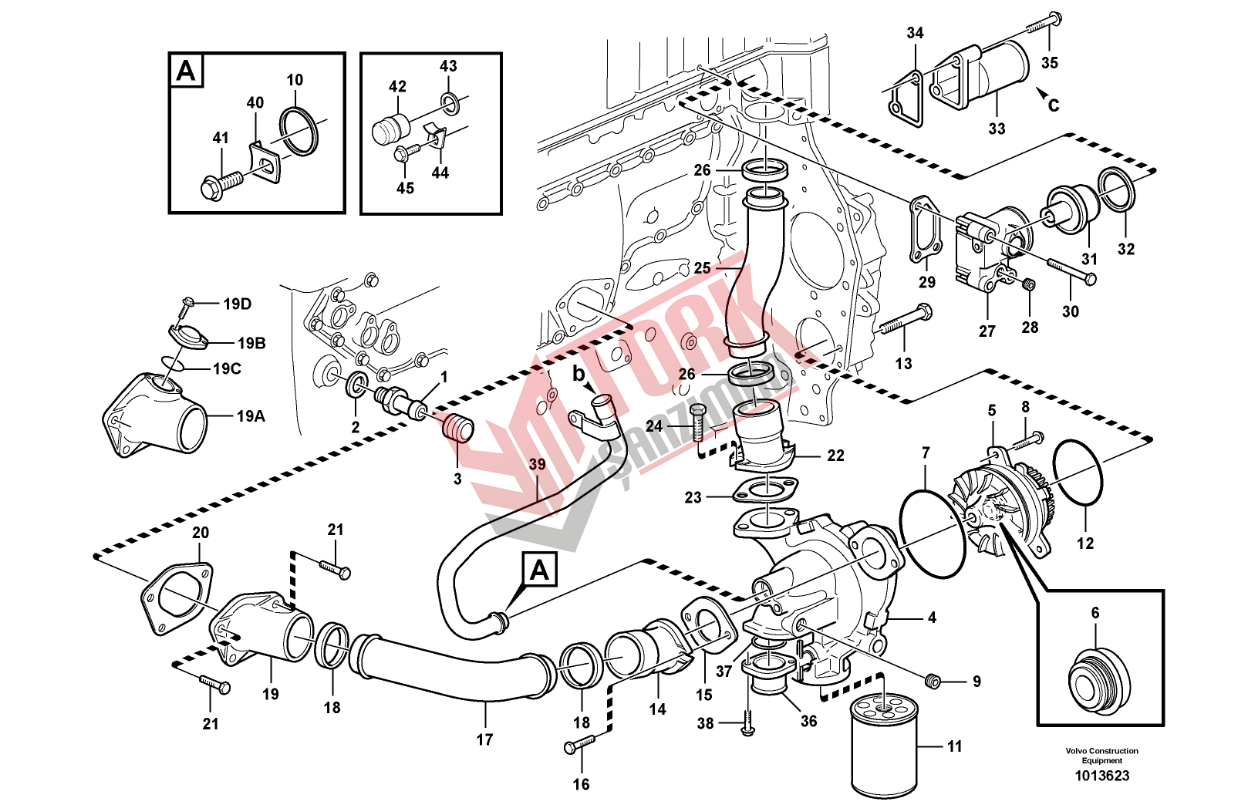

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 1676622 |
Nipple | 1 |
| 2 | 13947627 |
Plane gasket | 1 |
| 3 | 476279 |
Protecting cap | 1 |
| |
Coolant Pump | 1 | |
| 20431137 |
Coolant pump | ||
| 4 | |
•Housing | 1 |
| 5 | 20713787
(20431135) |
•Bearing housing | 1 |
| 6 | 1676432 |
••Sealing ring | 1 |
| 7 | 975687 |
•O-ring | 1 |
| 8 | 13946173 |
•Screw | 3 |
| 9 | 979947 |
Plug | 1 |
| 10 | 471708 |
Sealing ring | 1 |
| 11 | 20532237
(1699830) |
Coolant filter | 1 |
| 12 | 948980
(13948980) |
O-ring | 1 |
| 13 | 13947790 |
Screw | 4 |
| 14 | 8170513 |
Pipe connection | 1 |
| 15 | 8170514 |
Gasket | 1 |
| 16 | 13946173 |
Screw | 2 |
| 17 | 20713197
(8170314) |
Coolant pipe | 1 |
| 18 | 1547254 |
Sealing ring | 2 |
| 19 | 1677855 |
Pipe connection | 1 |
| 20441656 |
Pipe Connection | 1 | |
| 19A | 20412154 |
•Pipe connection | 1 |
| 19B | 471752 |
•Cover | 1 |
| 19C | 975664 |
•O-ring | 1 |
| 19D | 13946544 |
•Screw | 2 |
| 20 | 8170515 |
Gasket | 1 |
| 8130185 |
Gasket | 1 | |
| 21 | 13945444 |
Screw | 1 |
| 13948217 |
Screw | 2 | |
| 946671 |
Flange screw | 4 | |
| 22 | 8170513 |
Pipe connection | 1 |
| 23 | 8170514 |
Gasket | 1 |
| 24 | 13946173 |
Screw | 2 |
| 25 | 8170319 |
Coolant pipe | 1 |
| 26 | 1547254 |
Sealing ring | 2 |
| 27 | 20712338
(8170518) |
Connector | 1 |
| 28 | 13968063 |
Plug | 1 |
| 29 | 8170519 |
Gasket | 1 |
| 30 | 471734 |
Screw | 3 |
| 31 | 8149182 |
Thermostat | 1 |
| 32 | 1544710 |
Sealing ring | 1 |
| 33 | 11127449 |
Pipe | 1 |
| 34 | 8149301 |
Gasket | 1 |
| 35 | 13973924 |
Flange screw | 2 |
| 36 | 3943401 |
Tube | 1 |
| 37 | 967343 |
O-ring | 1 |
| 38 | 13946173 |
Screw | 2 |
| 39 | 11127697 |
Coolant pipe | 1 |
| 40 | 1546532 |
Lock | 1 |
| 41 | 946440 |
Flange screw | 1 |
| 42 | 1546528 |
Plug | 1 |
| 43 | 1547252 |
Sealing ring | 1 |
| 44 | 1546531 |
Lock brace | 1 |
| 45 | 946440 |
Flange screw | 1 |
