WHEEL LOADER VOLVO L220E
BASIC MACHINE
PROD NO 33823, L220E, S/N 2001 - 3999
CAB
PROD NO 33827, Care Cab II
PROD NO 33822, Replacement version
TRANSMISSION
PROD NO 22534, HTE305, S/N - 2408
PROD NO 22544, HTE305, S/N 2409 -
DRIVING AXLE
PROD NO 23876, AWB 50, front
PROD NO 23893, AWB 50, front, 80674
PROD NO 23883, AWB 41, rear
PROD NO 23896, AWB 41, rear , 80563, 80674
LOADING UNIT
PROD NO 33812
PROD NO 33837
PROD NO 33821, Long Boom (93583)
ENGINE
Part No 8188169, Type D12CLBE2, S/N - 2888
Part No 8188774, Type D12CLBE2, S/N 2889 - 3999

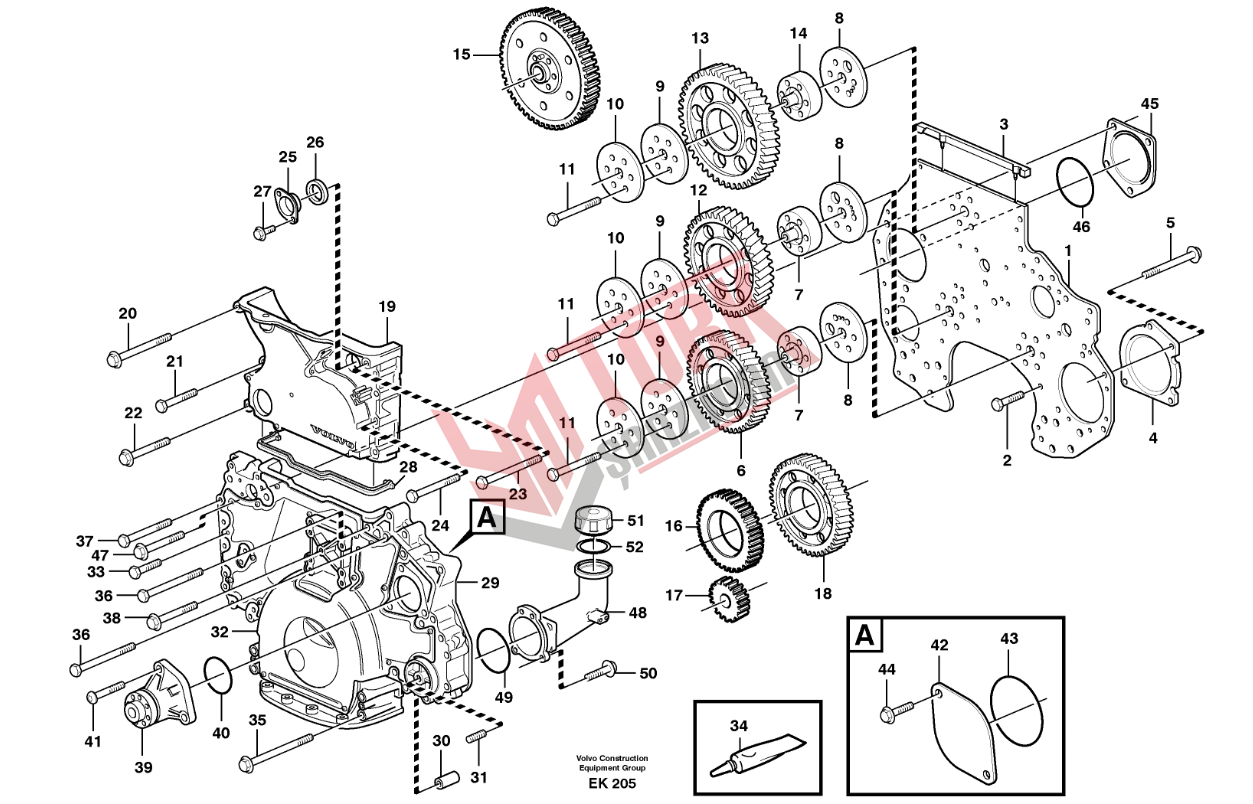

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 8170561 |
Xmsn Plate | 1 |
| 2 | 946470 |
Flange screw | 17 |
| 3 | 20489341 |
Gasket | 1 |
| 4 | 3828662 |
Cover | 1 |
| 5 | 946473 |
Flange screw | 4 |
| 6 | 8170193 |
Idler gear | 1 |
| 7 | 8170219 |
Hub | 2 |
| 8 | 8170220 |
Thrust washer | 3 |
| 9 | 3184865 |
Thrust washer | 3 |
| 10 | 3184868 |
Bearing shield | 3 |
| |
Bearing Shield | ||
| 11 | 21344754 (1547886) |
Screw | 18 |
| 12 | 8170195 |
Idler gear | 1 |
| 13 | 8170197 |
Idler gear | 1 |
| 14 | 8170199 |
Hub | 1 |
| 15 | |
Gear | 1 |
| 16 | |
Idler gear | 1 |
| 17 | |
Gear | 1 |
| 18 | |
Gear | 1 |
| 19 | 3169648 |
Timing gear cover | 1 |
| 20713791 (20512768) |
Tmg Gear Cover | 1 | |
| |
Tmg Gear Cover | ||
| 3830184 |
Seal | 1 | |
| |
Seal | ||
| 20 | 968553 |
Flange screw | 1 |
| 21 | 13965182 |
Screw | 3 |
| 22 | 13965183 |
Flange screw | 1 |
| 23 | 13965190 |
Screw | 1 |
| 24 | 13965223 |
Screw | 1 |
| 13947790 |
Screw | 2 | |
| 25 | 3964803 |
Plug | 1 |
| 26 | 22194880 (421629) |
Sealing ring | 1 |
| 27 | 946440 |
Flange screw | 2 |
| 28 | 20714247 (8170452) |
Sealing strip | 1 |
| 20714247 (20526706) |
Sealing strip | ||
| |
Timing gear cover | 1 | |
| 3165064 |
•Timing gear cover | 1 | |
| 29 | |
••Tmg gear cover | 1 |
| 30 | 1547940 |
••Pin | 2 |
| 31 | 956022 |
••Thread insert | 1 |
| 32 | 8170235 |
•Noise shield | 1 |
| 33 | 13972542 |
•Six point socket screw | 16 |
| 34 | 11713514 (1161231) |
Sealant | REQ |
| 1161277 |
Sealant | REQ | |
| 35 | 973096 |
Flange screw | 4 |
| 36 | 13947790 |
Screw | 2 |
| 37 | 955302 |
Hexagon screw | 11 |
| 13965181 |
Screw | 1 | |
| 38 | 13965183 |
Flange screw | 1 |
| 39 | |
Driving Device | 1 |
| 40 | 967344 |
O-ring | 1 |
| 41 | 969542 |
Six point socket screw | 1 |
| 13946752 |
Screw | ||
| 13965190 |
Screw | 1 | |
| 42 | 3828400 |
Cover | 1 |
| 43 | 925257 |
O-ring | 1 |
| 13925095 |
O-ring | ||
| 44 | 946441 |
Flange screw | 2 |
| 45 | 11127551 |
Cover | 1 |
| 1556208 |
Cover | 1 | |
| 1556208 |
Cover | ||
| 46 | 13948983 |
O-ring | 1 |
| 13948888 |
O-ring | 1 | |
| 13948888 |
O-ring | ||
| 47 | 946473 |
Flange screw | 4 |
| 48 | 11127415 |
Oil filler pipe | 1 |
| 49 | 13949736 |
O-ring | 1 |
| 50 | 946473 |
Flange screw | 4 |
| 51 | 11423437 (1275403) |
•Oil filler cap | 1 |
| 52 | 1275379 (940096) |
•Gasket | 1 |
