WHEEL LOADER VOLVO L220E
BASIC MACHINE
PROD NO 33823, L220E, S/N 2001 - 3999
CAB
PROD NO 33827, Care Cab II
PROD NO 33822, Replacement version
TRANSMISSION
PROD NO 22534, HTE305, S/N - 2408
PROD NO 22544, HTE305, S/N 2409 -
DRIVING AXLE
PROD NO 23876, AWB 50, front
PROD NO 23893, AWB 50, front, 80674
PROD NO 23883, AWB 41, rear
PROD NO 23896, AWB 41, rear , 80563, 80674
LOADING UNIT
PROD NO 33812
PROD NO 33837
PROD NO 33821, Long Boom (93583)
ENGINE
Part No 8188169, Type D12CLBE2, S/N - 2888
Part No 8188774, Type D12CLBE2, S/N 2889 - 3999

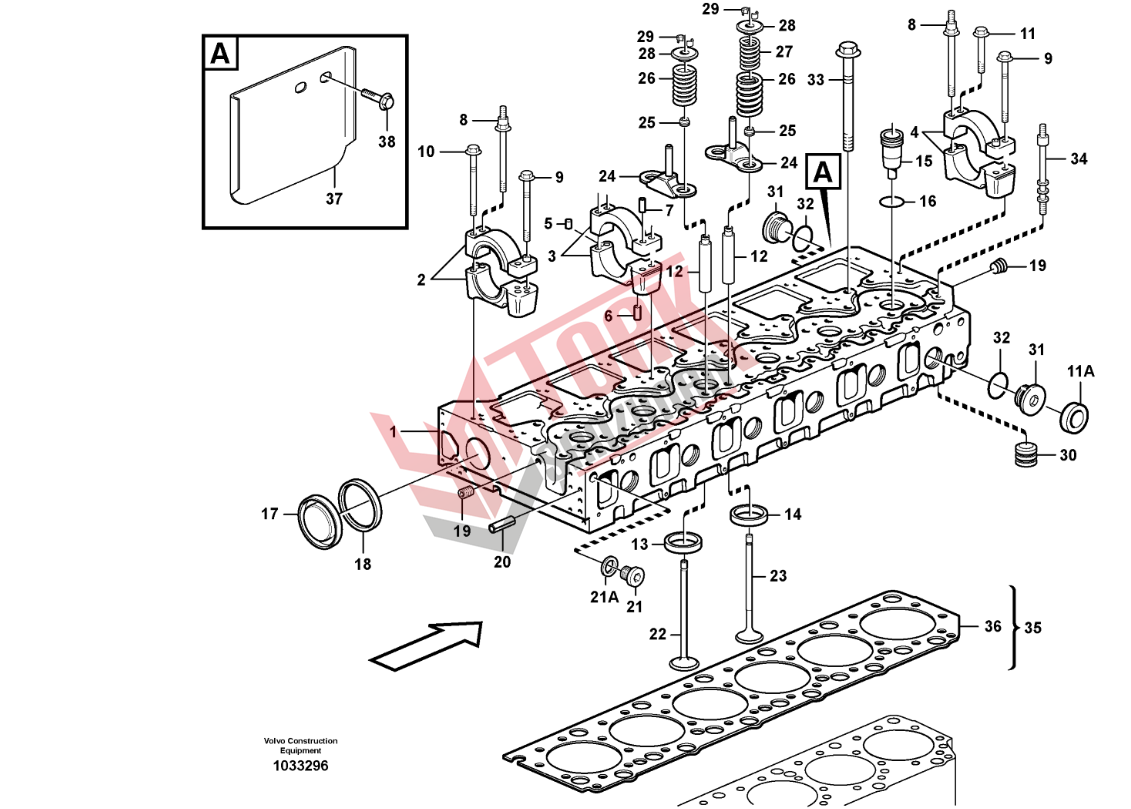

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 20560797 |
Cylinder head | 1 | |
| 1 | 24426420 |
•Cylinder head | 1 |
| 3165309 |
••Bearing housing | 1 | |
| 2 | 3165130 |
•••Bearing housing | 1 |
| 3 | 3165133 |
•••Bearing housing | 5 |
| 4 | 3165136 |
•••Bearing housing | 1 |
| 5 | 950542 |
••••Pin | 7 |
| 6 | 950562 |
•••Pin | 14 |
| 7 | 1546484 |
•••Sleeve | 14 |
| 8 | 21344812 (8170626) |
••Stud | 7 |
| 9 | 1547889 |
••Screw | 14 |
| 10 | 1547888 |
••Screw | 1 |
| 11 | 1677283 |
••Screw | 6 |
| 11A | 8131707 |
••Cap plug | 11 |
| 12 | 20905400 (3165303) |
••Valve guide | 24 |
| 13 | 20459329 |
••Valve seat | 12 |
| 20459332 |
••Valve seat | 12 | |
| 14 | 3169366 |
••Valve | 12 |
| 20411979 |
••Valve seat | 12 | |
| 15 | 3183368 |
••Sleeve | 6 |
| 20536487 |
••O-ring | 6 | |
| 17 | 8170553 |
••Cap plug | 1 |
| 18 | 1544710 |
•Sealing ring | 1 |
| 19 | 13968062 |
•Plug | 2 |
| 20 | 422426 |
•Pin | 1 |
| 21 | 20441335 |
•Plug | 1 |
| 21A | 13949721 |
•O-ring | 1 |
| 13947281 |
•Gasket | 1 | |
| 22 | 20459326 |
•Inlet valve | 12 |
| 23 | 20441945 |
•Exhaust valve | 12 |
| 24 | 1677963 |
•Guide pin | 6 |
| 25 | 21501189 (859171) |
•Valve stem seal | 24 |
| 26 | 21310068 (3183210) |
•Valve spring | 24 |
| 27 | 3183211 |
•Valve spring | 12 |
| 28 | 1546487 |
•Valve spring washer | 24 |
| 29 | 1677875 |
•Valve sleeve | 48 |
| 30 | 20463179 |
•Adapter | 1 |
| |
•Plug | 1 | |
| 31 | 3155171 |
••Plug | 1 |
| 32 | 949659 |
••O-ring | 1 |
| 33 | 21345131 (1547419) |
Flange screw | 38 |
| 34 | 21344784 (8148863) |
Stud | 9 |
| 35 | 3099100 |
Gasket kit | 1 |
| 36 | 20412953 |
•Gasket | 1 |
| 37 | |
Protecting plate | 1 |
| 38 | 946441 |
Flange screw | 2 |
