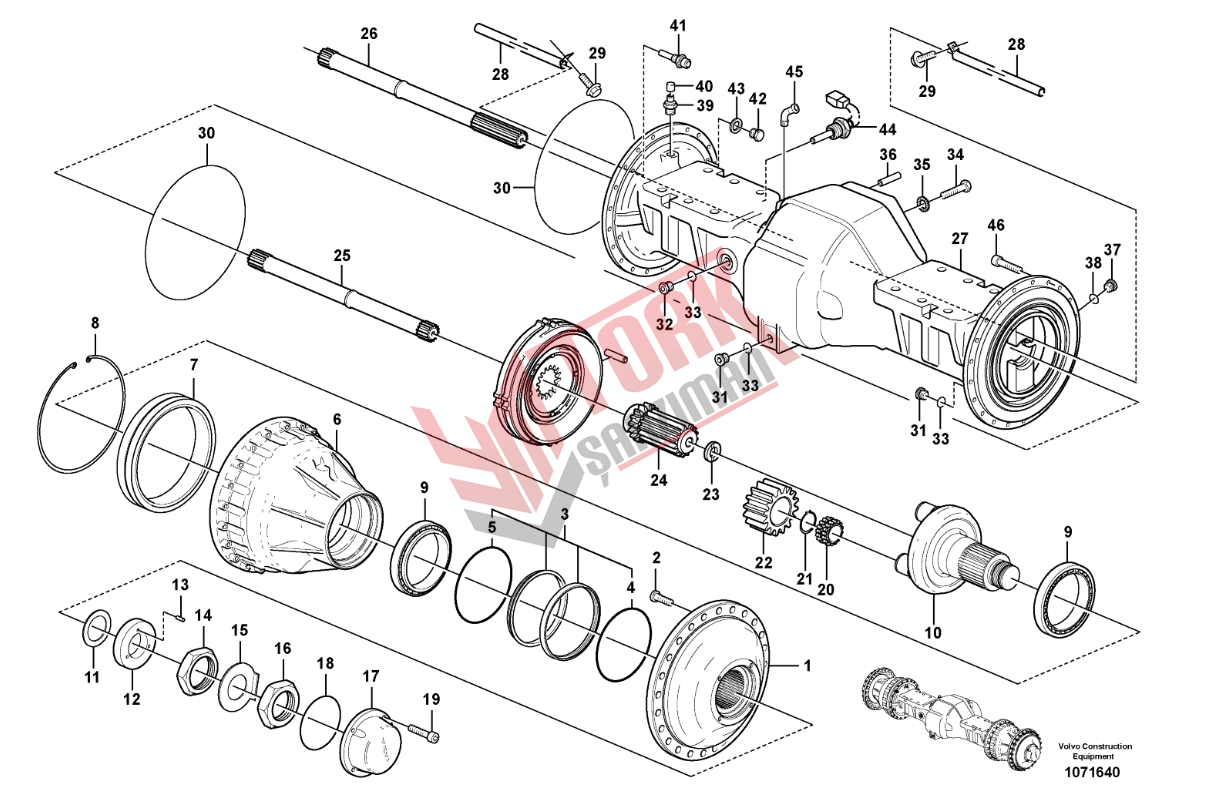

YM Güç Tork - 461/100 Planetary axle, front 56000 - L180H

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
1	15122410	Hub	2
2	15123158	•Wheel stud	48
3	11102685	Sealing ring	2
4	11704008	•O-ring	2
5	11704009	•O-ring	2
6	11102439	Hub retainer	2
7	17246956	•Gear ring	2
8	13976937	•Snap ring	2
9	11997036	Roller bearing	4
10	11035764	Planet carrier	2
11	11035769	Shim	REQ
11	11035768	Shim	REQ
11	11035767	Shim	REQ
11	11035766	Shim	REQ
11	11102775	Shim	REQ
12	17295864	Washer	2
		•Washer	2
13	951954	•Spring pin	6
14	11035779	Nut	2
15	11035960	Lock washer	2
16	11035778	Nut	2
17	11102396	Cover	2
18	13980042	O-ring	2
19	967634	Hex. socket screw	12
20	15010933	Bearing	8
21	914478	Snap ring	8
22	15003253	Planet gear	8
23	11035554	Washer	2
24	11102840	Sun gear	2
25	11102828	Drive shaft	1
26	11102827	Drive shaft	1
27	17211611	Axle casing	1
28	11102370	Pipe	2
29	996328	Flange screw	4
30	11034910	O-ring	2
31	11102187	Magnetic plug	3
32	11034156	Plug	1
33	958228	O-ring	4
34	949544	Hex. socket screw	20
35	941912	Spring washer	20
36	950711	Pin	1
37	13968610	Plug	2
38	13976109	O-ring	2
39	4871469	Air vent valve	2
40	11034256	•Protecting cap	2
41	11102446	Wear Indicator	2
42	960631	Plug	2
43	13947622	Plane gasket	2
44	15153124	Temperature sensor	1
45	942337	Nipple	1
46	949544	Hex. socket screw	52
	17279049	Hub kit	2
