WHEEL LOADER VOLVO L180GHL
BASIC MACHINE
PROD NO. 33012, L180GHL, S/N 21001 -
PROD NO. 33012, L180GHL, S/N 20002 -
CAB
PROD NO. 11294055
TRANSMISSION
PROD NO. 22574, HTL221
DRIVE AXLES
PROD NO. 56000, AWB 40B, front
PROD NO. 56049, AWB 40B, rear
PROD NO. 56052, AWB 40B, rear. 85320
MOTOR
Part number 15049439, D13H-E, (15173113, D13H, AME/After market engine), 85420
Part number 15117870, D13H-F, (15173113, D13H, AME/After market engine), 85421
Part number 15049437, D13F-C, (15173114, D13F, AME/After market engine), 85424

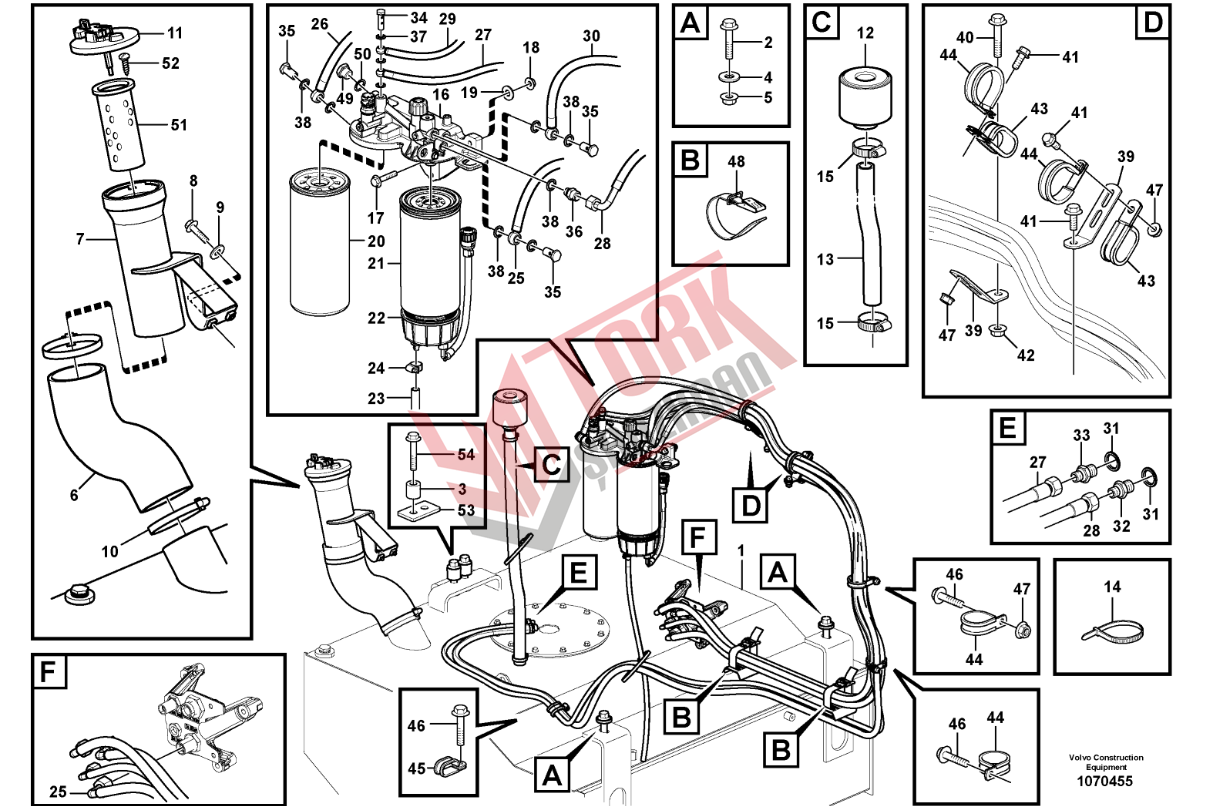

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 16811767 |
Fuel tank | 1 |
| 2 | 13968302 |
Flange screw | 2 |
| 2 | 13968302 |
Flange screw | |
| 3 | 11094551 |
Spacer | 2 |
| 4 | 1560463 |
Washer | 2 |
| 5 | 13967934
(967934) |
Flange lock nut | 2 |
| 6 | 15094448 |
Fuel hose | 1 |
| 7 | 16840705 |
Filler pipe | 1 |
| 8 | 945444 |
Flange screw | 2 |
| 9 | 960141 |
Plain washer | 2 |
| 10 | 943483 |
Hose clamp | 2 |
| 11 | 11118857 |
Filler cap | 1 |
| 12 | 11172907 |
Air filter | 1 |
| 13 | 992109 |
Hose | 1 |
| 14 | 4881440 |
Cable tie | 2 |
| 15 | 943474 |
Hose clamp | 2 |
| 16 | 21023287 |
Fuel filter housing | 1 |
| 17 | 947760 |
Flange screw | 3 |
| 18 | 948645 |
Flange lock nut | 3 |
| 19 | 960141 |
Plain washer | 3 |
| 20 | 15126069 |
Fuel filter | 1 |
| 21 | 11110683 |
Primary filter | 1 |
| 22 | 11110737 |
Bowl | 1 |
| 15195930 |
•Kit | 1 | |
| 15195958 |
•Gasket kit | 1 | |
| 23 | 949908 |
Hose | REQ |
| 24 | 13975269 |
Clamp | 1 |
| 25 | 15094012 |
Fuel hose | 1 |
| 26 | 16869680
(15094122) |
Fuel hose | 1 |
| 27 | 16809558 |
Fuel hose | 1 |
| 28 | 15094198 |
Fuel hose | 1 |
| 29 | 15094200 |
Fuel hose | 1 |
| 30 | 15094201 |
Fuel hose | 1 |
| 31 | 20852765 |
Sealing ring | 2 |
| 32 | 963948 |
Nipple | 1 |
| 33 | 973546 |
Nipple | 1 |
| 34 | 981425 |
Hollow screw | 1 |
| 35 | 7025167 |
Hollow screw | 3 |
| 36 | 946602 |
Nipple | 1 |
| 37 | 976927 |
Gasket | 3 |
| 38 | 976929 |
Gasket | 7 |
| 39 | 965576 |
Bracket | 2 |
| 40 | 965179 |
Flange screw | 1 |
| 41 | 945444 |
Flange screw | 3 |
| 42 | 948645 |
Flange lock nut | 1 |
| 43 | 968136 |
Clamp | 2 |
| 44 | 973944 |
Clamp | 4 |
| 45 | 13949386 |
Clamp | 1 |
| 46 | 946173 |
Flange screw | 3 |
| 47 | 948645 |
Flange lock nut | 3 |
| 48 | 11104606 |
Retaining strap | 5 |
| 49 | 13960632 |
Plug | 1 |
| 50 | 13947624
(11700303) |
Plane gasket | 1 |
| 51 | 15048799 |
Strainer | 1 |
| 52 | 972264 |
Six point socket screw | 3 |
| 53 | 16852864 |
Plate | 1 |
| 53 | 16852864 |
Plate | |
| 54 | 968298 |
Flange screw | 2 |
| 54 | 968298 |
Flange screw | - |
