WHEEL LOADER VOLVO L180F
BASIC MACHINE
PROD NO. 33841, L180F S/N 11001 - 15577
CAB
PROD NO. 33832, S/N - 12383
PROD NO. 33024, S/N 12384-
TRANSMISSION
PROD NO. 22554, HTE220, S/N - 12568
PROD NO. 22554, HTE220. 85086 S/N 12569 -
PROD NO, 22573, HTL220. 85087 S/N 12569 -
DRIVE AXLES
PROD NO. 23881, AWB 40B, front
PROD NO. 56000, AWB 40B, front
PROD NO. 23940, AWB 40B, rear
PROD NO. 23941, AWB 40B, rear. 83029
PROD NO. 56001, AWB 40B, rear
PROD NO. 56002, AWB 40B, rear
LOADER UNIT
PROD NO. 33846, L180F LA
PROD NO. 33849, L180F LA, long boom. 83590, 83646
MOTOR
Part number 8188740, D12DLAE3, S/N - 11269
Part number 8188743, D12D-B, S/N 11270 - 11726
Part number 8188771, D12D-L, S/N 11727 - 12568
Part number 8188771, D12D-L. 85086 S/N 12569 -
Part number 8188765, D12D-K. 85087

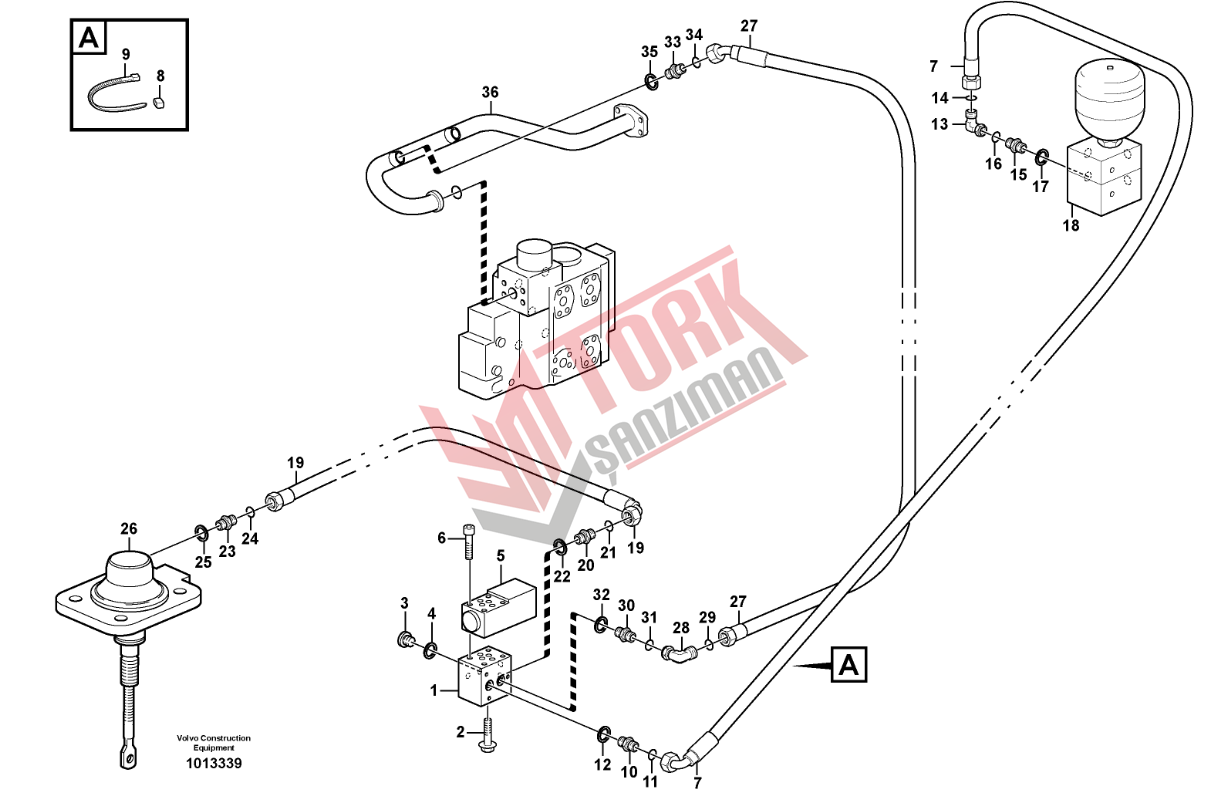

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 4974291 |
Connection block | 1 |
| 2 | 13946173 |
Screw | 1 |
| 3 | 914390 |
Plug | 3 |
| 4 | 14013067 |
Sealing washer | 3 |
| 5 | 11173166 |
Solenoid valve | 1 |
| 11708930 |
•Magnet | 1 | |
| 11993637 |
•Sealing kit | 1 | |
| 6 | 959193 |
Hex. socket screw | 4 |
| 7 | 936693 |
Hose assembly | 1 |
| 11172993 |
Hose assembly | ||
| 8 | 4881457 |
Marking sleeve | 2 |
| 9 | 14016673
(4881438) |
Strip clamp | 2 |
| 10 | 13933897 |
Nipple | 1 |
| 11 | 990737
(4880492) |
•O-ring | 1 |
| 12 | 14211856 |
•Sealing ring | 1 |
| 13 | 13933900 |
Elbow nipple | 1 |
| 14 | 990737
(4880492) |
•O-ring | 1 |
| 15 | 14345423 |
Nipple | 1 |
| 16 | 990737
(4880492) |
•O-ring | 1 |
| 17 | 14211856 |
•Sealing ring | 1 |
| 18 | |
Connection block | 1 |
| 19 | 11148958 |
Hose assembly | 1 |
| 11130856 |
Hose assembly | ||
| 20 | 13933897 |
Nipple | 1 |
| 21 | 990737
(4880492) |
•O-ring | 1 |
| 22 | 14211856 |
•Sealing ring | 1 |
| 23 | 14345423 |
Nipple | 1 |
| 24 | 990737
(4880492) |
•O-ring | 1 |
| 25 | 14211856 |
•Sealing ring | 1 |
| 26 | |
Differential lock | 1 |
| 27 | 936698 |
Hose assembly | 1 |
| 11172994 |
Hose assembly | ||
| 28 | 13933900 |
Elbow nipple | 1 |
| 29 | 990737
(4880492) |
•O-ring | 1 |
| 30 | 13933897 |
Nipple | 1 |
| 31 | 990737
(4880492) |
•O-ring | 1 |
| 32 | 14211856 |
•Sealing ring | 1 |
| 33 | 13933855 |
Nipple | 1 |
| 34 | 990737
(4880492) |
•O-ring | 1 |
| 35 | 14213676 |
•Sealing ring | 1 |
| 36 | |
Return Line | 1 |
