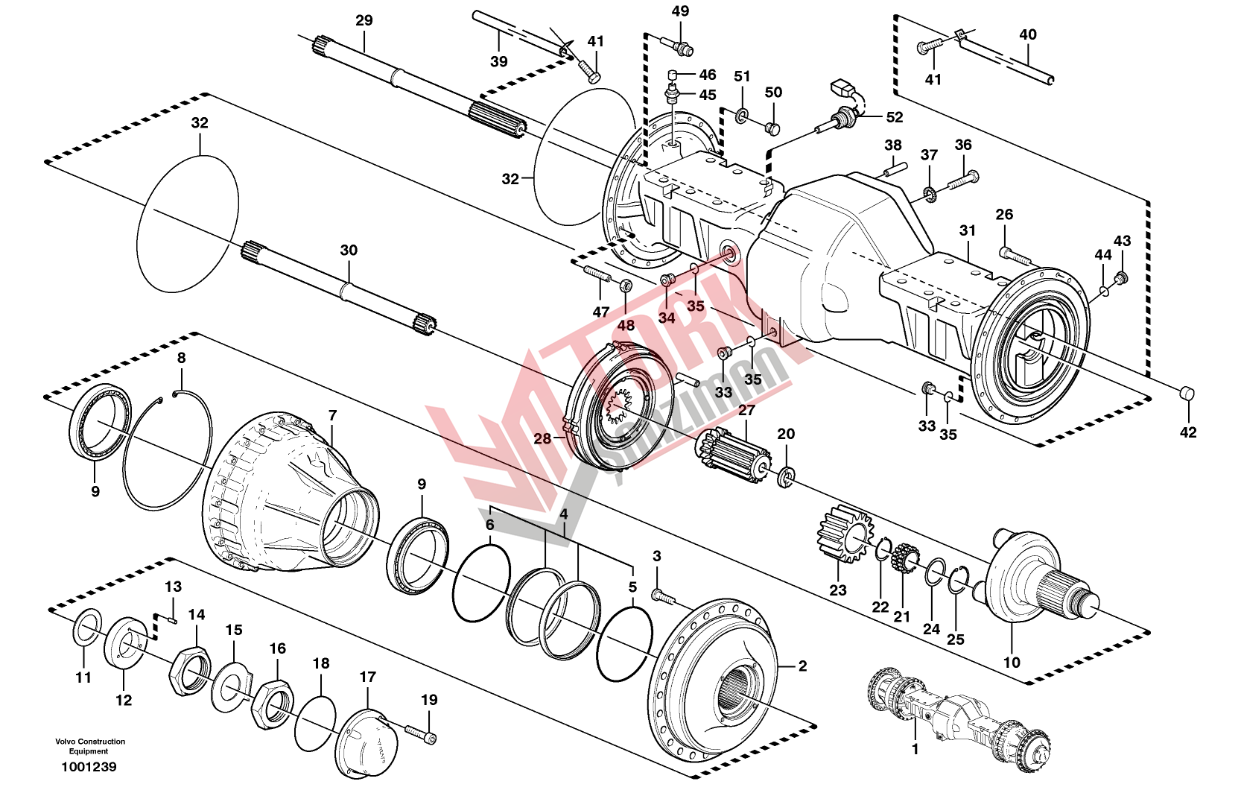

YM Güç Tork - 461/100 Planet shaft, front 23881 - L180E

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
1	23881	Planet shaft	1
	15122410 (11168055)	•Hub	2
	15122410 (11103185)	•Hub
2	11035758	••Hub	2
	11103180	••Hub
3	11102584	••Wheel stud	48
4	11102685	•Sealing ring	2
5	11704008	••O-ring	2
6	11704009	••O-ring	2
7	11102439	•Hub retainer	2
8	13976937	••Snap ring	2
9	11997036	•Roller bearing	4
10	11035764	•Planet carrier	2
11	11035766	•Shim	REQ
	11102775	•Shim	REQ
	11035767	•Shim	REQ
	11035768	•Shim	REQ
	11035769	•Shim	REQ
12	11102307	•Washer	2
13	951954	••Spring pin	6
14	11035779	•Nut	2
15	11035960	•Lock washer	2
16	11035778	•Nut	2
17	11102396	•Cover	2
18	13980042	•O-ring	2
19	967634	•Hex. socket screw	12
20	11035554	•Washer	2
21	11035642	•Bearing	8
22	914478	•Snap ring	8
23	11035821	•Planet gear	8
24	11035004	•Guide ring	16
25	13977093	•Snap ring	16
26	949544	•Hex. socket screw	52
27	11102840	•Sun gear	2
28		•Brake	2
29	11102827	•Drive shaft	1
30	11102828	•Drive shaft	1
31	17211611	•Axle casing	1
32	11034910	•O-ring	2
33	11102187	•Magnetic plug	3
34	11034156	•Plug	1
35	958228	•O-ring	4
36	949544	•Hex. socket screw	20
37	941912	•Spring washer	20
38	950711	•Pin	1
39	11034924	•Pipe	1
40	11103004	•Pipe	1
41	946440	•Flange screw	2
42	955102	•Expansion plug	2
43	13968610	•Plug	2
44	13976109	•O-ring	2
45	4871469	•Air vent valve	2
46	11034256	••Protecting cap	2
47	11035450	•Screw	4
48	955793	•Hexagon nut	4
49	11102446	•Wear Indicator	2
50	960631	•Plug	2
51	13947622	•Plane gasket	2
52	11419485	•Temperature sensor	1
