WHEEL LOADER
VOLVO L180EHL, HIGH-LIFT VERSION
BASIC MACHINE
PROD NO 33845, L180EHL, SER NO 8002 - 9407
CAB
PROD NO 33831, CAB
TRANSMISSION
PROD NO 22522, HTE220
DRIVE AXLES
PROD NO 23881, AWB 40B, front
PROD NO 23882, AWB 40B, rear
ENGINE
Part number 8188760, Type D12DLAE3 (Replaced by 8188759)
Part number 8188759, Type D12D

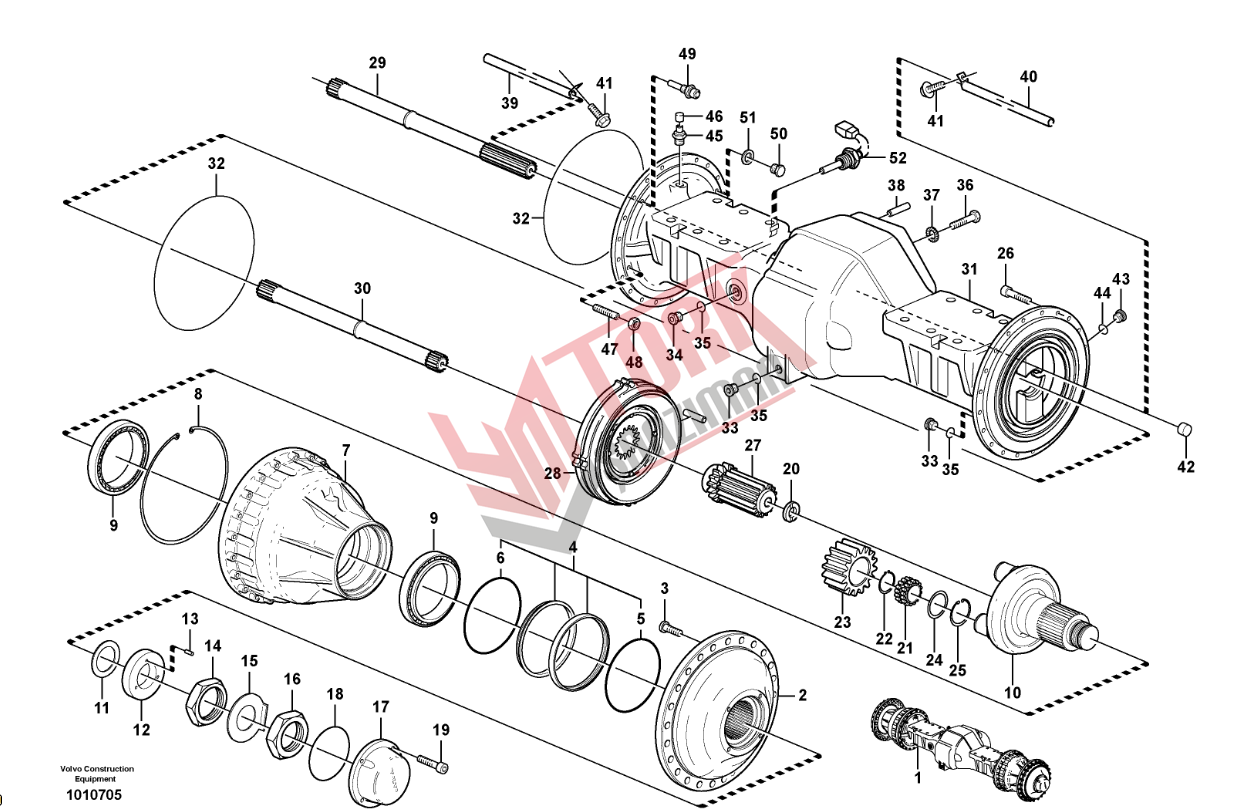

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 23881 |
Planet shaft | 1 |
| 2 | 15122410 |
•Hub | 2 |
| 3 | 15123158 |
••Wheel stud | 48 |
| 4 | 11102685 |
•Sealing ring | 2 |
| 5 | 11704008 |
••O-ring | 2 |
| 6 | 11704009 |
••O-ring | 2 |
| 7 | 11102439 |
•Hub retainer | 2 |
| 8 | 13976937 |
••Snap ring | 2 |
| 17246956 |
••Gear ring | 2 | |
| 9 | 11997036 |
•Roller bearing | 4 |
| 10 | 11035764 |
•Planet carrier | 2 |
| 11 | 11035766 |
•Shim | REQ |
| 11102775 |
•Shim | REQ | |
| 11035767 |
•Shim | REQ | |
| 11035768 |
•Shim | REQ | |
| 11035769 |
•Shim | REQ | |
| 12 | 11102307 |
•Washer | 2 |
| 13 | 951954 |
••Spring pin | 6 |
| 14 | 11035779 |
•Nut | 2 |
| 15 | 11035960 |
•Lock washer | 2 |
| 16 | 11035778 |
•Nut | 2 |
| 17 | 11102396 |
•Cover | 2 |
| 18 | 13980042 |
•O-ring | 2 |
| 19 | 967634 |
•Hex. socket screw | 12 |
| 20 | 11035554 |
•Washer | 2 |
| 21 | 11035642 |
•Bearing | 8 |
| 21 | 15010933 |
•Bearing | |
| 22 | 914478 |
•Snap ring | 8 |
| 23 | 11035821 |
•Planet gear | 8 |
| 23 | 15003253 |
•Planet gear | |
| 24 | 11035004 |
•Guide ring | 16 |
| 25 | 13977093 |
•Snap ring | 16 |
| 26 | 949544 |
•Hex. socket screw | 52 |
| 27 | 11102840 |
•Sun gear | 2 |
| 28 | |
•Brake | 2 |
| 29 | 11102827 |
•Drive shaft | 1 |
| 30 | 11102828 |
•Drive shaft | 1 |
| 31 | 17211611 |
•Axle casing | 1 |
| 32 | 11034910 |
•O-ring | 2 |
| 33 | 11102187 |
•Magnetic plug | 3 |
| 34 | 11034156 |
•Plug | 1 |
| 35 | 958228 |
•O-ring | 4 |
| 36 | 949544 |
•Hex. socket screw | 20 |
| 37 | 941912 |
•Spring washer | 20 |
| 38 | 950711 |
•Pin | 1 |
| 39 | 11103004 |
•Pipe | 1 |
| 40 | 11034924 |
•Pipe | 1 |
| 41 | 946440 |
•Flange screw | 2 |
| 42 | 955102 |
•Expansion plug | 2 |
| 43 | 13968610 |
•Plug | 2 |
| 44 | 13976109 |
•O-ring | 2 |
| 45 | 4871469 |
•Air vent valve | 2 |
| 46 | 11034256 |
••Protecting cap | 2 |
| 47 | 11035450 |
•Screw | 4 |
| 48 | 955793 |
•Hexagon nut | 4 |
| 49 | 11102446 |
•Wear Indicator | 2 |
| 50 | 960631 |
•Plug | 2 |
| 51 | 13947622 |
•Plane gasket | 2 |
| 52 | 11419485 |
•Temperature sensor | 1 |
