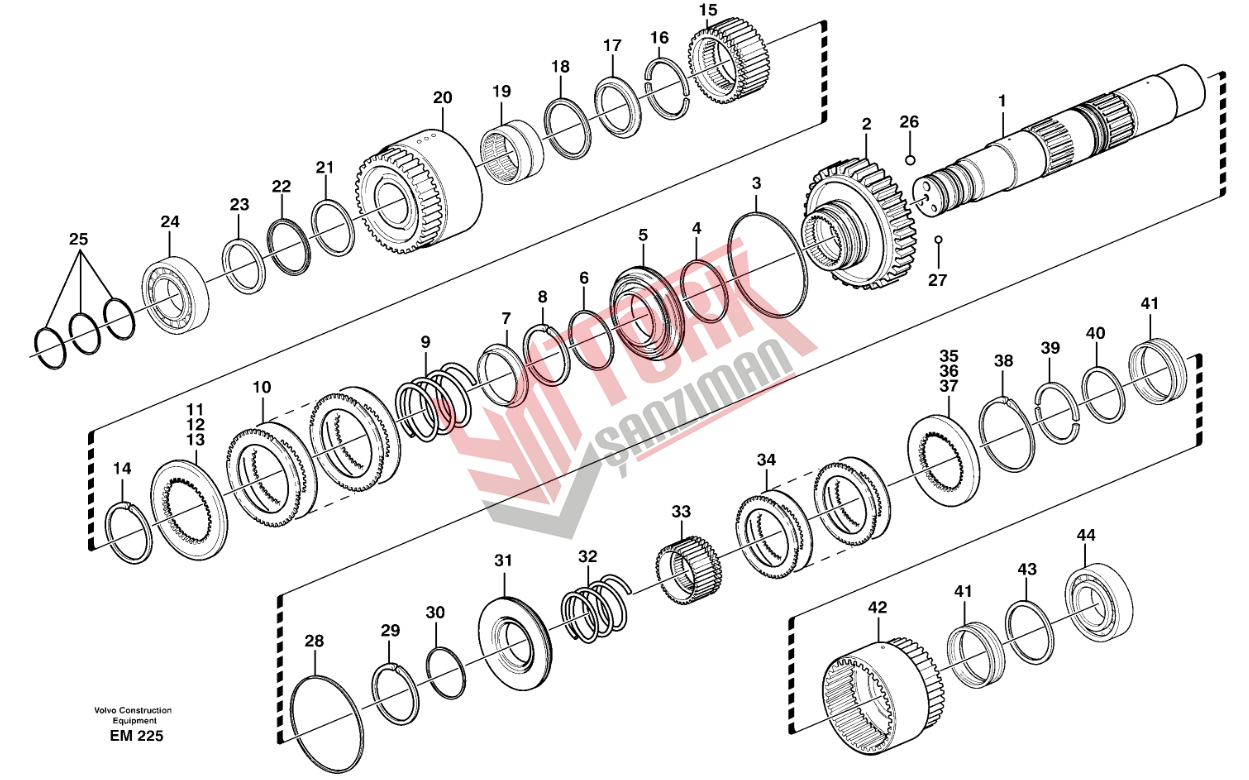

+90 552 671 32 12TRANSMISSION, HYDRAULIC CONTROL > 421/250 Hydraulic clutch, forward / 1 st speed
WHEEL LOADER
VOLVO L180EHL, HIGH-LIFT VERSION
BASIC MACHINE
PROD NO 33845, L180EHL, SER NO 8002 - 9407
CAB
PROD NO 33831, CAB
TRANSMISSION
PROD NO 22522, HTE220
DRIVE AXLES
PROD NO 23881, AWB 40B, front
PROD NO 23882, AWB 40B, rear
ENGINE
Part number 8188760, Type D12DLAE3 (Replaced by 8188759)
Part number 8188759, Type D12D
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
11145394 |
Hydraulic clutch | 1 | |
| 1 | 11144024 |
•Clutch shaft | 1 |
| 2 | 11144026 |
•Gear | 1 |
| 3 | 4720864 |
•Piston ring | 1 |
| 4 | 4720865 |
•Piston ring | 1 |
| 5 | 11144458 |
•Piston | 1 |
| 6 | 4871223 |
•Piston ring | 1 |
| 7 | 4720854 |
•Spring retainer | 1 |
| 8 | 11037189 |
•Snap ring | 1 |
| 9 | 11037195 |
•Spring | 1 |
| 10 | 11144415 |
•Disc kit | 1 |
| 11 | 11144441 |
•Pressure plate | REQ |
| 12 | 11144442 |
•Pressure plate | REQ |
| 13 | 11144443 |
•Pressure plate | REQ |
| 14 | 13949928 |
•Snap ring | 1 |
| 15 | 11448506 (11144023) |
•Clutch hub | 1 |
| 16 | 4871337 |
•Retainer | 1 |
| 17 | 11145104 |
•Thrust washer | 1 |
| 18 | 184347 |
•Thrust needle roller assy | 1 |
| 19 | 11145265 |
•Needle bearing | 1 |
| 20 | 11144481 |
•Gear | 1 |
| 21 | 4871338 |
•Thrust washer | 1 |
| 22 | 4785772 |
•Needle bearing | 1 |
| 23 | 4871208 |
•Washer | 1 |
| 24 | 181006 |
•Roller bearing | 1 |
| 25 | 11037814 |
•Piston ring | 3 |
| 26 | 11037637 |
•Ball | 1 |
| 27 | 184645 |
•Ball | 1 |
| 28 | 4720864 |
•Piston ring | 1 |
| 29 | 11037183 |
•Snap ring | 1 |
| 30 | 4871428 |
•Piston ring | 1 |
| 31 | 11144634 |
•Piston | 1 |
| 32 | 4871532 |
•Spring | 1 |
| 33 | 11144459 |
•Clutch hub | 1 |
| 34 | 11145206 |
•Disc kit | 1 |
| 35 | 11144444 |
•Pressure plate | REQ |
| 36 | 11144445 |
•Pressure plate | REQ |
| 37 | 11144446 |
•Pressure plate | REQ |
| 38 | 11037827 |
•Lock ring | 1 |
| 39 | 4871337 |
•Retainer | 1 |
| 40 | 11037622 |
•Wear ring | 1 |
| 41 | 11145404 |
•Roller cage | 2 |
| 42 | 11145204 |
•Gear | 1 |
| 43 | 15139489 (11038834) |
•Wear ring | 1 |
| 44 | 11145390 |
•Bearing | 1 |
