WHEEL LOADER
VOLVO L180EHL, HIGH-LIFT VERSION
BASIC MACHINE
PROD NO 33845, L180EHL, SER NO 8002 - 9407
CAB
PROD NO 33831, CAB
TRANSMISSION
PROD NO 22522, HTE220
DRIVE AXLES
PROD NO 23881, AWB 40B, front
PROD NO 23882, AWB 40B, rear
ENGINE
Part number 8188760, Type D12DLAE3 (Replaced by 8188759)
Part number 8188759, Type D12D

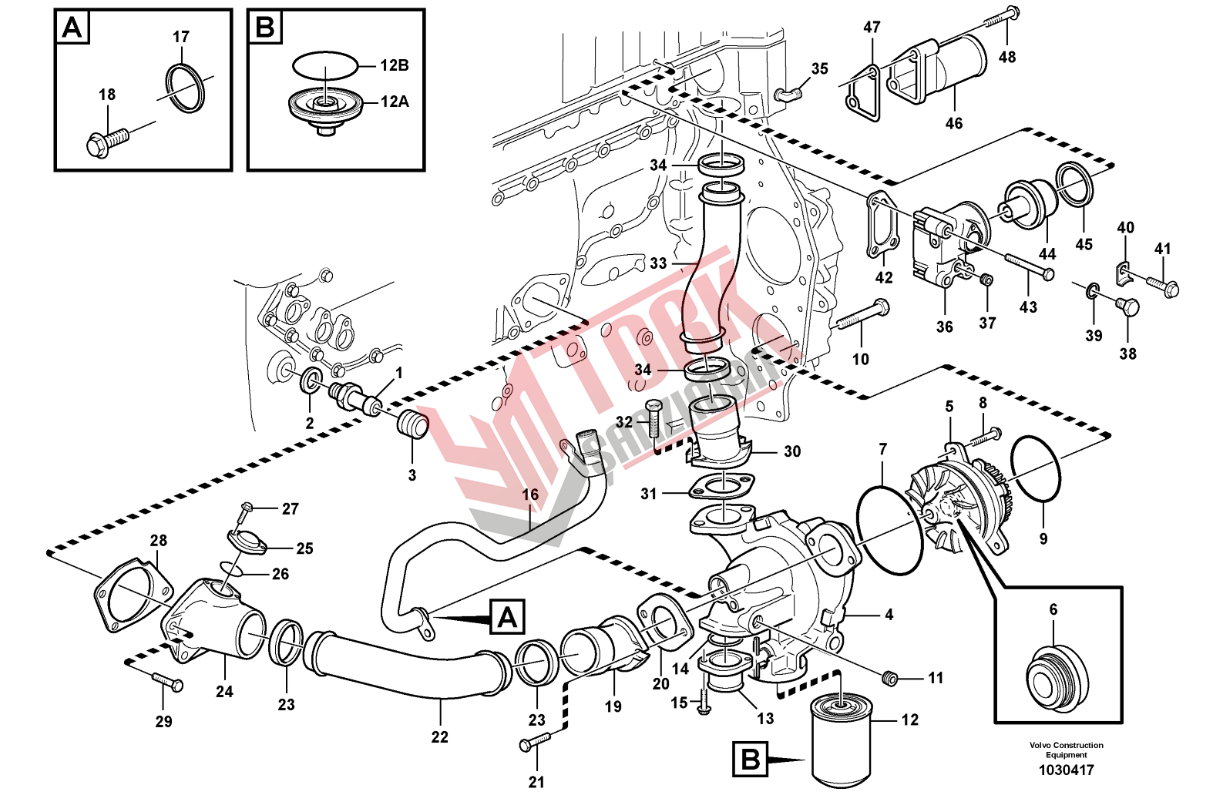

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 1676622 |
Nipple | 1 |
| 2 | 13947627 |
Plane gasket | 1 |
| 3 | 476279 |
Protecting cap | 1 |
| |
Coolant pump | 1 | |
| 4 | 20713789 |
•Housing | 1 |
| 5 | 20734268 |
•Coolant pump | 1 |
| 6 | 1676432 |
••Sealing ring | 1 |
| 7 | 975687 |
•O-ring | 1 |
| 8 | 13946173 |
•Screw | 3 |
| 9 | 948980 |
O-ring | 1 |
| 10 | 13947790 |
Screw | 4 |
| 11 | 979947 |
Plug | 1 |
| 12 | 20532237 |
Coolant filter | 1 |
| 12A | 20810238 |
Cover | 1 |
| 12B | 13975675 |
O-ring | 1 |
| 13 | 3943401 |
Tube | 1 |
| 14 | 967343 |
O-ring | 1 |
| 15 | 13946173 |
Screw | 2 |
| 16 | 11423707 |
Water pipe | 1 |
| 17 | 471708 |
Sealing ring | 1 |
| 18 | 946440 |
Flange screw | 1 |
| 19 | 8170513 |
Pipe connection | 1 |
| 20 | 8170514 |
Gasket | 1 |
| 21 | 13946173 |
Screw | 2 |
| 22 | 20713197 |
Coolant pipe | 1 |
| 23 | 1547254 |
Sealing ring | 2 |
| 20441656 |
Pipe Connection | 1 | |
| 24 | 20412154 |
•Pipe connection | 1 |
| 25 | 471752 |
•Cover | 1 |
| 26 | 975664 |
•O-ring | 1 |
| 27 | 13946544 |
•Screw | 2 |
| 28 | 8130185 |
Gasket | 1 |
| 29 | 946671 |
Flange screw | 4 |
| 30 | 8170513 |
Pipe connection | 1 |
| 31 | 8170514 |
Gasket | 1 |
| 32 | 13946173 |
Screw | 2 |
| 33 | 8170319 |
Coolant pipe | 1 |
| 34 | 1547254 |
Sealing ring | 2 |
| 35 | 990836 |
Elbow nipple | 1 |
| 36 | 20712338 |
Connector | 1 |
| 37 | 13968063 |
Plug | 1 |
| 38 | 1546528 |
Plug | 1 |
| 39 | 1547252 |
Sealing ring | 1 |
| 40 | 1546532 |
Lock | 1 |
| 41 | 946440 |
Flange screw | 1 |
| 42 | 8170519 |
Gasket | 1 |
| 43 | 471734 |
Screw | 3 |
| 44 | 8149182 |
Thermostat | 1 |
| 45 | 1544710 |
Sealing ring | 1 |
| 46 | 11127449 |
Pipe | 1 |
| 47 | 8149301 |
Gasket | 1 |
| 48 | 13973924 |
Flange screw | 2 |
