WHEEL LOADER
VOLVO L180EHL, HIGH-LIFT VERSION
BASIC MACHINE
PROD NO 33845, L180EHL, SER NO 8002 - 9407
CAB
PROD NO 33831, CAB
TRANSMISSION
PROD NO 22522, HTE220
DRIVE AXLES
PROD NO 23881, AWB 40B, front
PROD NO 23882, AWB 40B, rear
ENGINE
Part number 8188760, Type D12DLAE3 (Replaced by 8188759)
Part number 8188759, Type D12D

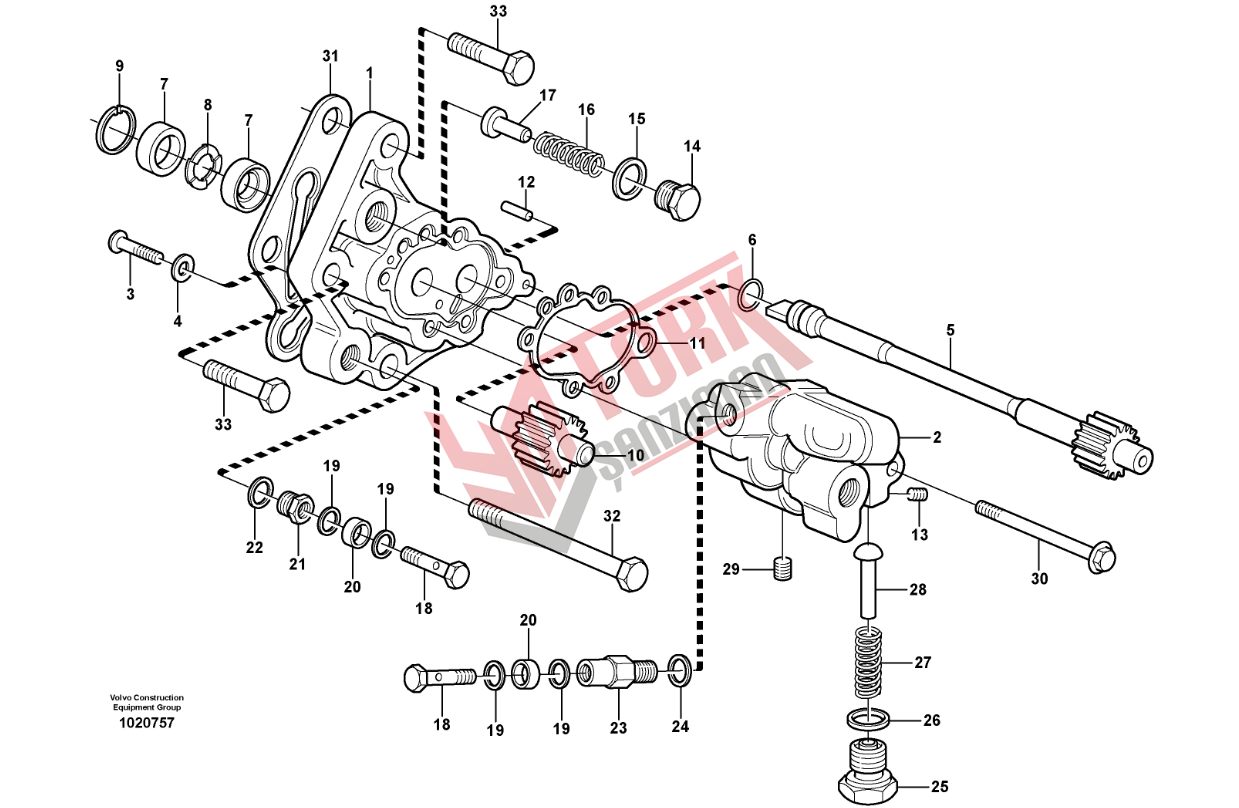

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 3092460 |
Fuel pump | 1 | |
| 21067551
(20752310) |
Fuel pump | ||
| 1 | 3165866 |
•Housing | 1 |
| 2 | |
•Cover | 1 |
| 3 | 969408 |
•Six point socket screw | 5 |
| 4 | 13940090 |
•Washer | 5 |
| 5 | 3165798 |
•Shaft | 1 |
| 6 | 976013 |
•O-ring | 1 |
| 7 | 8148471 |
•Sealing ring | 2 |
| 8 | 3165863 |
•Spacer | 1 |
| 9 | 951085 |
•Retaining ring | 1 |
| 10 | 1547946 |
•Shaft | 1 |
| 11 | 1547951 |
•Sealing ring | 1 |
| 12 | |
•Pin | 2 |
| 13 | 1677217 |
•Sealing plug | 1 |
| 14 | 1677545 |
•Plug | 1 |
| 15 | 240572 |
•Gasket | 1 |
| 13947622 |
•Plane gasket | ||
| 16 | 7076706 |
•Spring | 1 |
| 17 | 233572 |
•Valve | 1 |
| 20430099 |
•Valve peg | ||
| 18 | 7074033 |
•Hollow screw | 2 |
| 19 | 7011992 |
•Gasket | 4 |
| 20 | 13949873 |
•Spacer washer | 2 |
| 21 | 8148570 |
•Plug | 1 |
| 22 | 240572 |
•Gasket | 1 |
| 13947622 |
•Plane gasket | ||
| 23 | 21469758
(3184856) |
•Valve | 1 |
| 20430101 |
•Valve | ||
| 24 | 13947281 |
•Gasket | 1 |
| 25 | 3155523 |
•Valve seat | 1 |
| 1677545 |
•Plug | ||
| 26 | 240572 |
•Gasket | 1 |
| 13947622 |
•Plane gasket | ||
| 27 | 20431469 |
•Thrust Spring | 1 |
| 20810227 |
•Compression Spring | ||
| 28 | |
•Valve Peg | 1 |
| 29 | 20381155 |
•Sealing plug | 1 |
| 30 | 13965181
(3184837) |
•Screw | 1 |
| 31 | 3964833 |
Gasket | 1 |
| 32 | 13965190 |
Screw | 1 |
| 33 | 13965220 |
Screw | 2 |
| 20768698 |
Valve kit | 1 |
