WHEEL LOADER
VOLVO L180EHL, HIGH-LIFT VERSION
BASIC MACHINE
PROD NO 33845, L180EHL, SER NO 8002 - 9407
CAB
PROD NO 33831, CAB
TRANSMISSION
PROD NO 22522, HTE220
DRIVE AXLES
PROD NO 23881, AWB 40B, front
PROD NO 23882, AWB 40B, rear
ENGINE
Part number 8188760, Type D12DLAE3 (Replaced by 8188759)
Part number 8188759, Type D12D

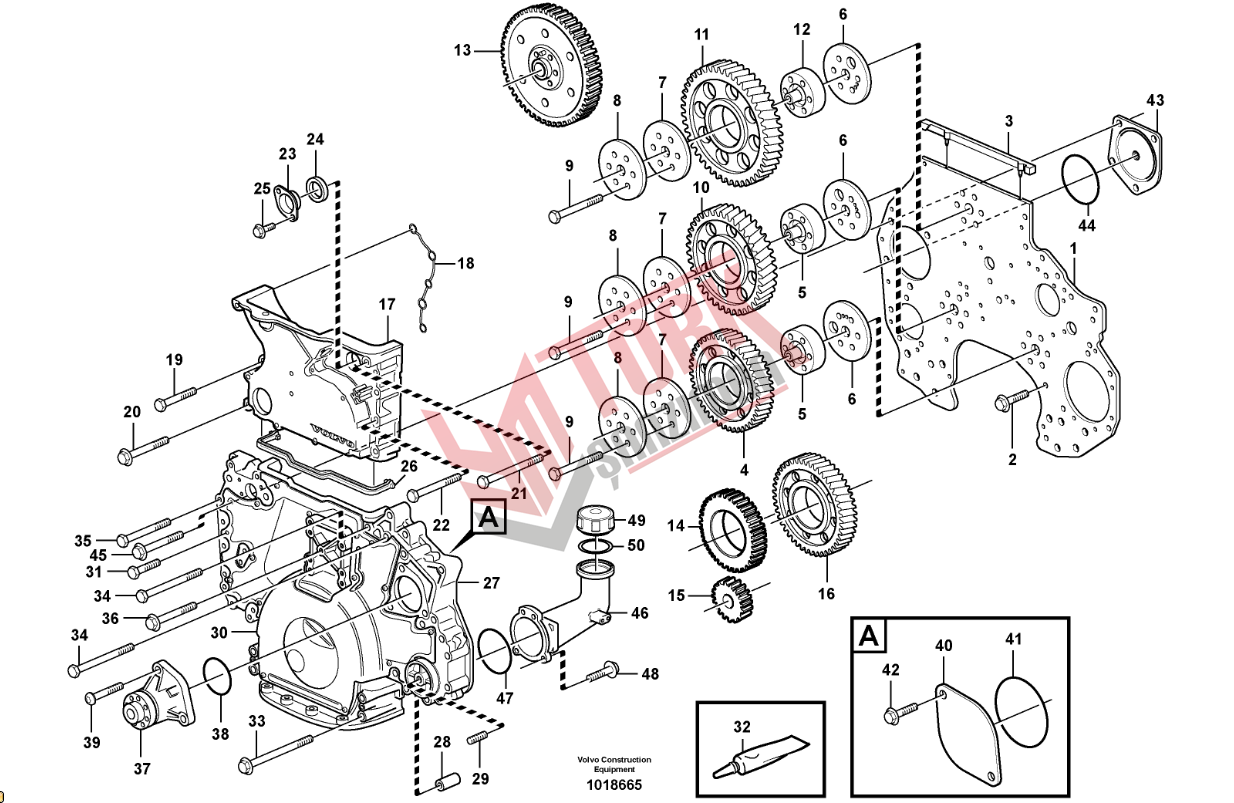

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 8170561 |
Xmsn Plate | 1 |
| 2 | 946470 |
Flange screw | 17 |
| 3 | 20489341 |
Gasket | 1 |
| 4 | 8170193 |
Idler gear | 1 |
| 5 | 8170219 |
Hub | 2 |
| 6 | 8170220 |
Thrust washer | 3 |
| 7 | 3184865 |
Thrust washer | 3 |
| 8 | 3184868 |
Bearing shield | 3 |
| 9 | 21344754
(1547886) |
Screw | 18 |
| 10 | 8170195 |
Idler gear | 1 |
| 11 | 8170197 |
Idler gear | 1 |
| 12 | 8170199 |
Hub | 1 |
| 13 | |
Gear | 1 |
| 14 | |
Idler gear | 1 |
| 15 | |
Gear | 1 |
| 16 | |
Gear | 1 |
| 17 | 20713791 |
Tmg Gear Cover | 1 |
| 18 | 3830184 |
Seal | 1 |
| 19 | 13965182 |
Screw | 3 |
| 20 | 13965183 |
Flange screw | 1 |
| 21 | 13965190 |
Screw | 1 |
| 22 | 13965223 |
Screw | 1 |
| 13947790 |
Screw | 2 | |
| 969225 |
Flange screw | 1 | |
| 23 | |
Adapter | 1 |
| 24 | 20555696 |
Sealing ring | 1 |
| 25 | 946440 |
Flange screw | 2 |
| 26 | 20714247 |
Sealing strip | 1 |
| |
Timing gear cover | 1 | |
| 3165064 |
•Timing gear cover | 1 | |
| 27 | |
••Tmg gear cover | 1 |
| 28 | 1547940 |
••Pin | 2 |
| 29 | 956022 |
••Thread insert | 1 |
| 30 | 8170235 |
•Noise shield | 1 |
| 31 | 13972542 |
•Six point socket screw | 16 |
| 32 | 11713514 |
Sealant | REQ |
| 1161277 |
Sealant | REQ | |
| 33 | 973096 |
Flange screw | 4 |
| 34 | 13947790 |
Screw | 2 |
| 35 | 955302 |
Hexagon screw | 11 |
| 13965181 |
Screw | 1 | |
| 36 | 13965183 |
Flange screw | 1 |
| 37 | |
Driving Device | 1 |
| 38 | 967344 |
O-ring | 1 |
| 39 | 13946752 |
Screw | 1 |
| 40 | 3828400 |
Cover | 1 |
| 41 | 967344 |
O-ring | 1 |
| 42 | 946441 |
Flange screw | 2 |
| 43 | 1556208 |
Cover | 1 |
| 44 | 13948888 |
O-ring | 1 |
| 45 | 946473 |
Flange screw | 3 |
| 46 | 11127415 |
Oil filler pipe | 1 |
| 15000507 |
Oil filler pipe | ||
| 47 | 13949736 |
O-ring | 1 |
| 48 | 946473 |
Flange screw | 4 |
| 49 | 11423437 |
Oil filler cap | 1 |
| 20807510 |
Oil filler cap | ||
| 50 | 1275379 |
•Gasket | 1 |
| 50 | 20365079 |
•Rubber washer | - |
