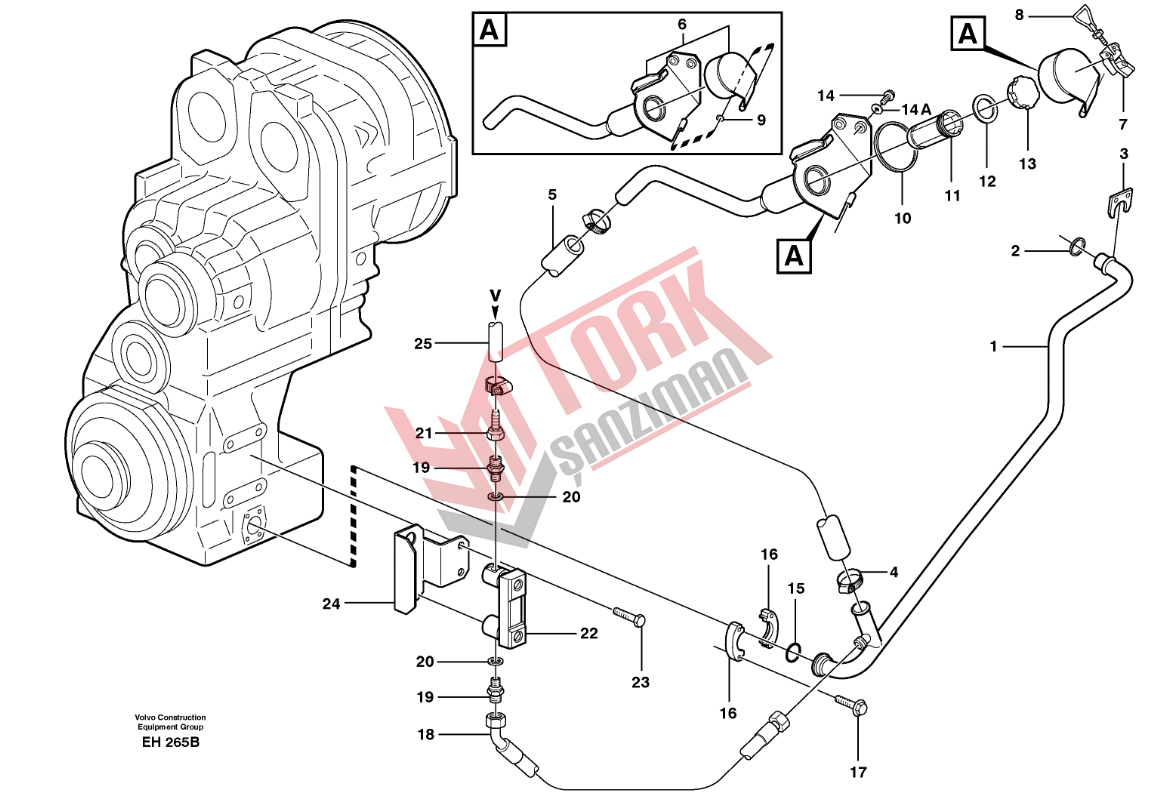

WHEEL LOADER VOLVO L180DHL, HIGH LIFT VERSION
BASIC MACHINE
PROD NO 33824, Ser No 4001 - 4710
CAB
PROD NO 33514, Care Cab II
TRANSMISSION
PROD NO 22527, HT220
PROD NO 22528, HT220R
DRIVING AXLE
PROD NO 23852, AWB 40, front
PROD NO 23854, AWB 40, front. 93523
PROD NO 23853, AWB 40, rear
PROD NO 23875, AWB 40, rear. 93523
ENGINE
Part No 8188162, Typ TD122 KHE. Low exhaust emission version.
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11173442 (11152154) |
Tube | 1 |
| 2 | 421158 |
Sealing ring | 1 |
| 3 | |
Lock washer | 1 |
| 4 | 943476 |
Hose clamp | 2 |
| 5 | 941803 |
Hose | REQ |
| 6 | 11152150 |
Cap retainer | 1 |
| 7 | 11015639 |
•Eccentric lock | 1 |
| 8 | 11015638 |
Eye bolt | 1 |
| 9 | 4936343 |
Washer | 1 |
| 10 | 4786044 |
Sealing strip | REQ |
| 11 | 11018236 |
Strainer | 1 |
| 12 | 1275379 (940096) |
Gasket | 1 |
| 13 | 421753 |
Filler cap | 1 |
| 14 | 946329 |
Flange screw | 2 |
| 14A | 13960143 |
Washer | 2 |
| 15 | 990756 (13948700) |
Sealing ring | 2 |
| 16 | 11015455 |
Flange half | 4 |
| 17 | 946472 |
Flange screw | 8 |
| 18 | 13933624 |
Hose assembly | 1 |
| 19 | 941754 |
Nipple | 2 |
| 20 | 13945653 |
Plane gasket | 2 |
| 21 | |
Hose nippel | 1 |
| 22 | 14372277 (4881442) |
Level Inspection Glass | 1 |
| 11172674 |
Level glass | 1 | |
| 23 | 13946173 |
Screw | 2 |
| 24 | |
Bracket | 1 |
| 11172652 |
Bracket | 1 | |
| 25 | 13944075 |
Rubber hose | REQ |
