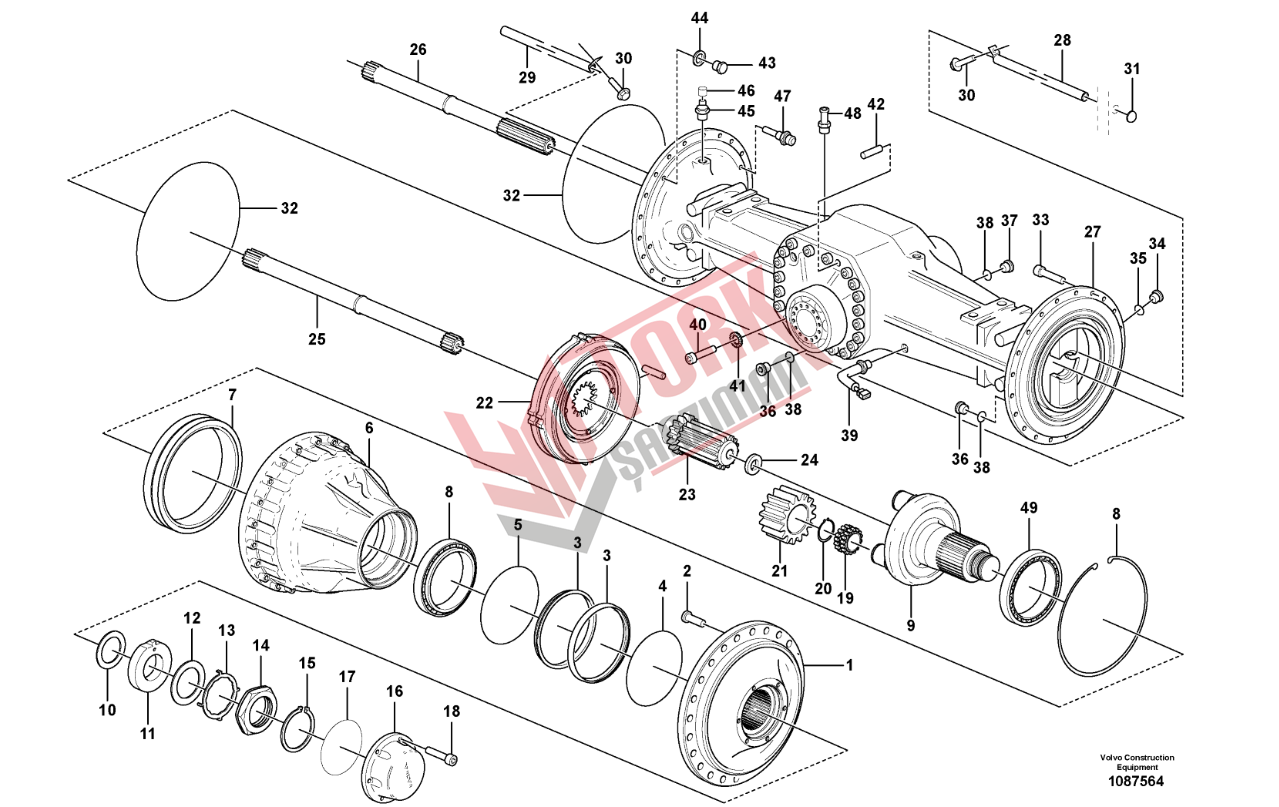

YM Güç Tork - 463/100 Planetary axle, rear 56054 - L150H - L150H Volvo 5824-5828, 5920, 9185, 14267

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
	56054	Planet shaft	1
1	15122413	•Hub	2
2	15123158	••Wheel stud	48
3	11102533	•Sealing ring	2
4	11704007	••O-ring	2
5	11704006	••O-ring	2
6	17367830	•Hub retainer	2
		••Hub retainer	2
7	17247015	••Gear ring	2
8	976936	••Retaining ring	2
9	17421171	•Planet carrier	2
10	11102823	•Shim	REQ
10	11034512	•Shim	REQ
10	11034513	•Shim	REQ
10	11034514	•Shim	REQ
11	11034507	•Washer	2
12	1523317	•Washer	2
13	1523319	•Lock washer	REQ
13	1523318	•Lock washer	REQ
14	1522293	•Nut	2
15	914484	•Snap ring	2
16	11102396	•Cover	2
17	13980042	•O-ring	2
18	967634	•Hex. socket screw	12
19	11035001	•Bearing	8
20	914474	•Snap ring	8
21	11035819	•Planet gear	8
22		•Brake	2
23	11103177	•Sun gear	2
24	11035554	•Washer	2
25	11102829	•Drive shaft	1
26	11102830	•Drive shaft	1
27	17210969	•Axle casing	1
28		•Pipe	1
29	11102370	•Pipe	2
30	996328	•Flange screw	4
31	955102	•Expansion plug	2
32	11034910	•O-ring	2
33	949544	•Hex. socket screw	40
34	13968610	•Plug	2
35	13976109	•O-ring	2
36	11102187	•Magnetic plug	3
37	11034156	•Plug	1
38	958228	•O-ring	4
39	15153124	•Temperature sensor	1
40	949544	•Hex. socket screw	20
41	994896	•Spring washer	20
42	950711	•Pin	1
43	960631	•Plug	2
44	13947622	•Plane gasket	2
45	4871469	•Air vent valve	2
46	11034256	••Protecting cap	2
47	17461352	•Wear indicator	2
	976970	••O-ring	2
48	13961656	•Nipple	1
49	184836	•Roller bearing	4
