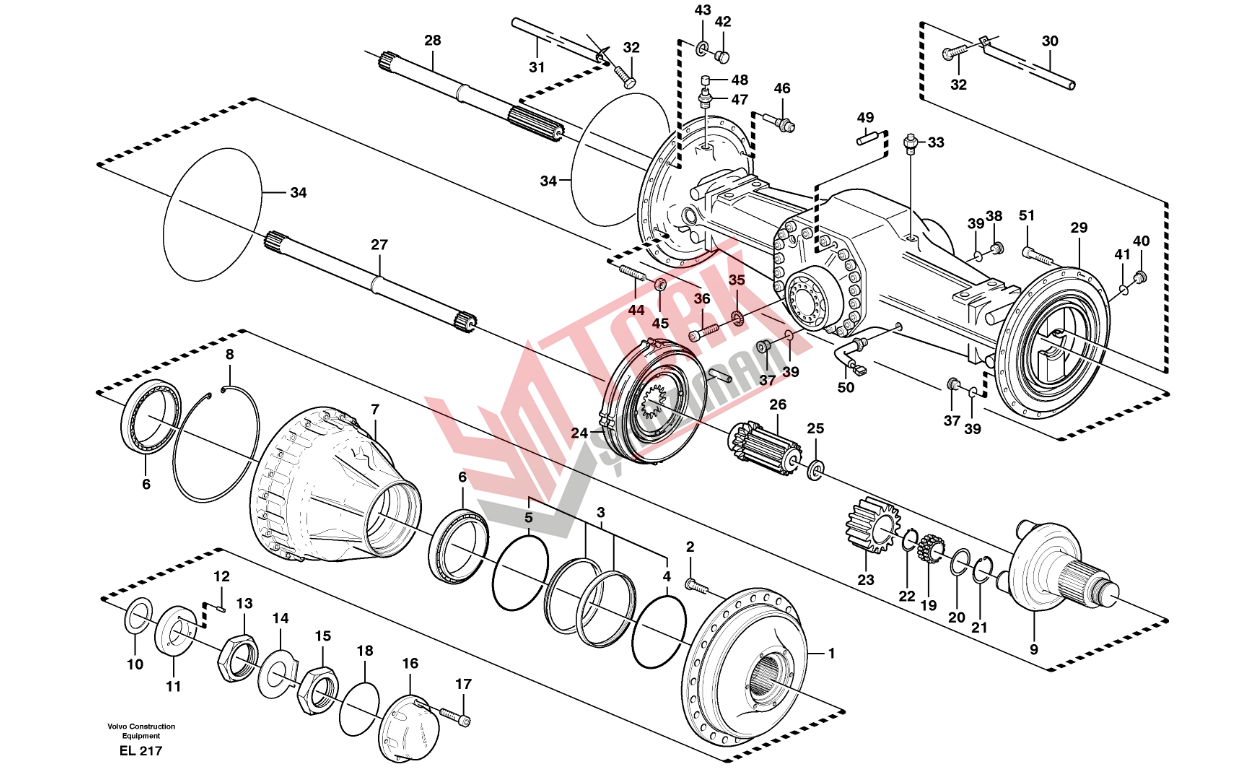

YM Güç Tork - 463/120 Planetary axle, rear 23895 - L150E

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
	23895	Planetary Axle	1
1	15122410 (11168055)	•Hub	2
2	15123158	••Wheel stud	48
3	11102685	•Sealing ring	2
4	11704008	••O-ring	2
5	11704009	••O-ring	2
6	11997036	•Roller bearing	4
7	11102439	•Hub retainer	2
8	13976937	••Snap ring	2
	17246956	••Gear ring	2
9	11035763	•Planet carrier	2
10	11035766	•Shim	REQ
	11102775	•Shim	REQ
	11035767	•Shim	REQ
	11035768	•Shim	REQ
	11035769	•Shim	REQ
11	11102307	•Washer	2
12	951954	••Spring pin	6
13	11035779	•Nut	2
14	11035960	•Lock washer	2
15	11035778	•Nut	2
16	11102396	•Cover	2
17	967634	•Hex. socket screw	12
18	13980042	•O-ring	2
19	11035642	•Bearing	6
20	11035004	•Guide ring	12
21	13977093	•Snap ring	12
22	914478	•Snap ring	6
23	11035821	•Planet gear	6
24		•Brake	2
25	11035554	•Washer	2
26	11102226	•Sun gear	2
27	11102988	•Drive shaft	1
28	11102989	•Drive shaft	1
29	11102826	•Axle casing	1
30	11034927	•Pipe	1
31	11034926	•Pipe	1
32	946440	•Flange screw	2
33	955102	•Expansion plug	2
34	11034910	•O-ring	2
35	941912	•Spring washer	20
36	949544	•Hex. socket screw	20
37	11102187	•Magnetic plug	3
38	11034156	•Plug	1
39	958228	•O-ring	4
40	13968610	•Plug	2
41	13976109	•O-ring	2
42	960631	•Plug	2
43	13947622	•Plane gasket	2
44	11035450	•Screw	4
45	955793	•Hexagon nut	4
46	11102446	•Wear Indicator	2
47	4871469	•Air vent valve	2
48	11034256	••Protecting cap	2
49	950711	•Pin	1
50	11419485	•Temperature sensor	1
51	949544	•Hex. socket screw	40
