WHEEL LOADER VOLVO L150E
BASIC MACHINE
PROD NO 33516, L150E, SER NO 6001 - 7549
PROD NO 33516, L150E, SER NO 63001 - 63085 USA
CAB
PROD NO 33517, CAB - 2666
TRANSMISSION
PROD NO 22535, HTE210
DRIVING AXLE
PROD NO 23881, AWB 40B, front
PROD NO 23894, AWB 40B, front, 80823
PROD NO 23882, AWB 40B, rear
PROD NO 23895, AWB 40B, rear, 80822, 80823
LOADING UNIT
PROD NO 33518, L150 LA
PROD NO 33519, L150 LA, long boom, 80701
ENGINE
Part No 8188146, D10 BLAE2

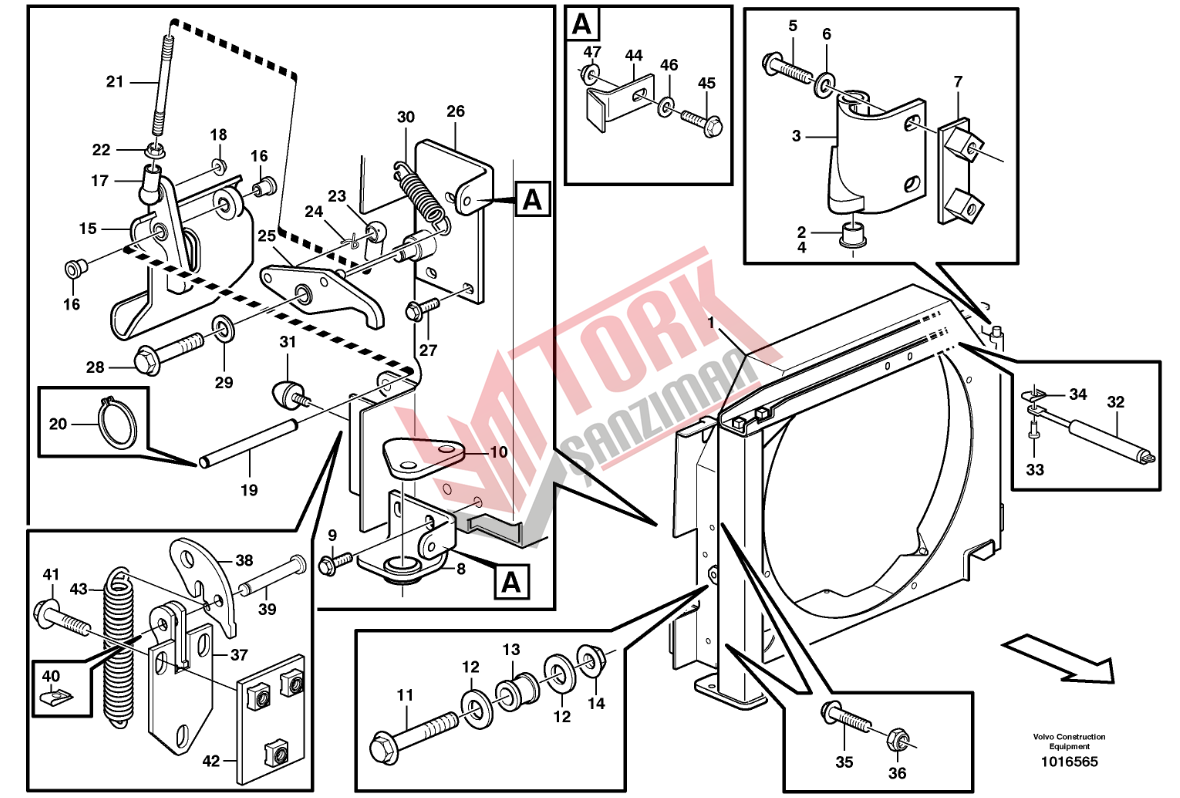

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11175788 |
Fan housing | 1 |
| 2 | 11026547 |
Slide bearing | 2 |
| 11026547 |
Slide bearing | 1 | |
| 3 | 11175191 |
Hinge | 1 |
| 11413485 |
Hinge | 1 | |
| 4 | 11026547 |
•Slide bearing | 1 |
| 5 | 965195 |
Flange screw | 2 |
| 6 | 13960145 |
Washer | 2 |
| 7 | 11148870 |
Nut plate | 1 |
| 8 | 11400925 |
Guide | 1 |
| 9 | 946472 |
Flange screw | 2 |
| 10 | |
Plate | 1 |
| 11 | 13965187 |
Screw | 1 |
| 12 | 13960143 |
Washer | 2 |
| 13960143 |
Washer | 4 | |
| 13 | 11175295 |
Lock Pin | 1 |
| 14 | 13971098 |
Flange nut | 1 |
| 15 | 11400538 |
Handle | 1 |
| 16 | 1588548 |
•Bushing | 2 |
| 17 | 959081 |
•Angle ball joint | 1 |
| 18 | 13971095 |
•Flange nut | 1 |
| 19 | 11175400 |
Shaft | 1 |
| 20 | 914446 |
Snap ring | 2 |
| 21 | 11148709 |
Control rod | 1 |
| 22 | 13971095 |
Flange nut | 1 |
| 23 | 959091 |
Ball socket | 1 |
| 24 | 959096 |
Safety brace | 1 |
| 25 | 11148487 |
Latch | 1 |
| 26 | 11400927 |
Pivot pin | 1 |
| 27 | 946472 |
Flange screw | 3 |
| 28 | 946472 |
Flange screw | 1 |
| 29 | 13960143 |
Washer | 1 |
| 30 | 4742010 |
Tension spring | 1 |
| 31 | 4881758 |
Rubber stop | 1 |
| 32 | 17208460 (11006826) |
Gas Spring | 1 |
| 33 | 13947609 |
Retaining ring bolt | 2 |
| 34 | 13969158 |
Lock brace | 2 |
| 35 | 13965185 |
Screw | 2 |
| 36 | 13971098 |
Flange nut | 2 |
| 11414303 |
Lock hook anchorage | 1 | |
| 37 | |
•Lock hook anchorage | 1 |
| 38 | |
•Pawl | 1 |
| 39 | 13947609 |
•Retaining ring bolt | 1 |
| 40 | 13969158 |
•Lock brace | 1 |
| 41 | 13946173 |
Screw | 3 |
| 42 | 11400123 |
Nut plate | 1 |
| 43 | 11175473 |
Tension spring | 1 |
| 44 | 11400924 |
Latch | 2 |
| 45 | 946472 |
Flange screw | 2 |
| 46 | 13960143 |
Washer | 2 |
| 47 | 13971098 |
Flange nut | 2 |
