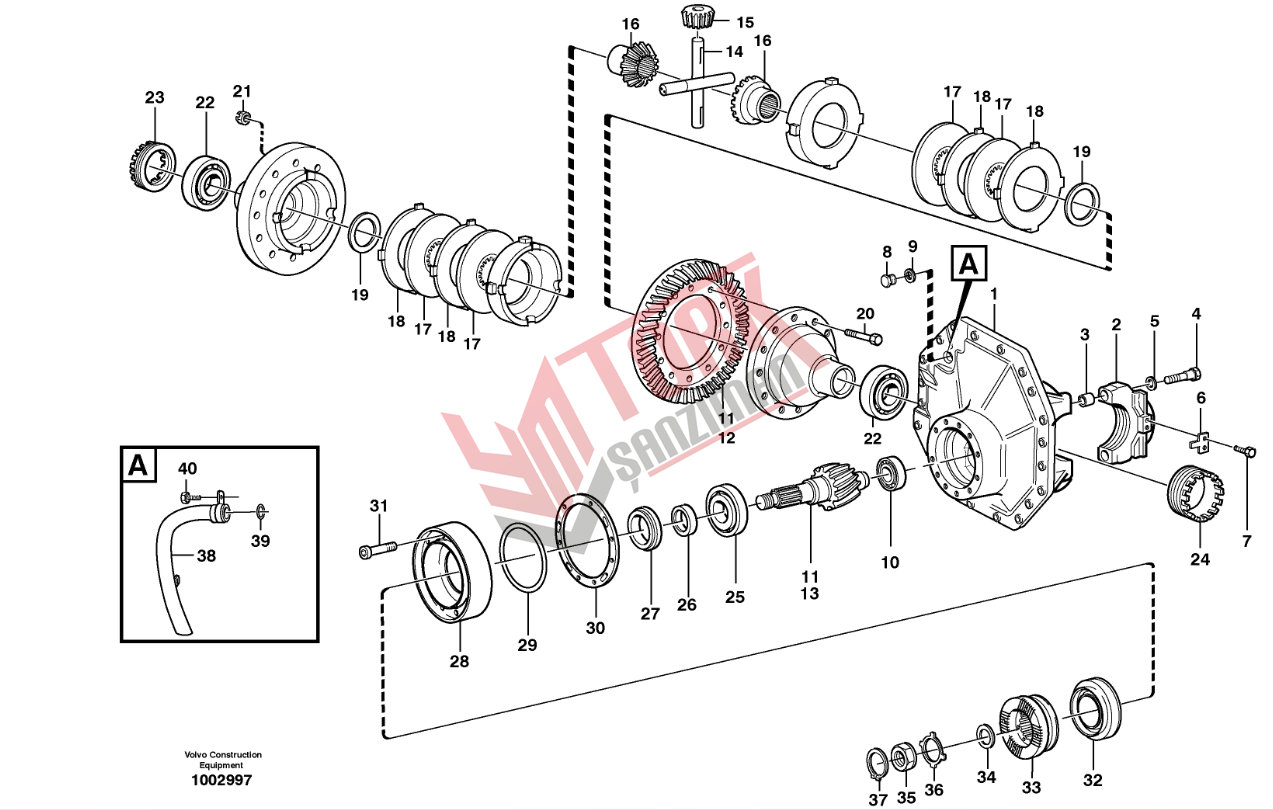

YM Güç Tork - 463/250 Final drive, rear 23895 - L150E

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
	11103005	Differential carrier	1
1	11103234 (11102831)	•Centre housing	1
2		••Cap	2
3	310719	••Bushing	4
4	1524242	••Screw	4
5	13946304	••Washer	4
6	1524631	•Lock plate	2
7	946440	•Flange screw	4
8	914396	•Plug	1
9	13947630	•Gasket	1
10	183688	•Roller bearing	1
11	11103266	•Drive gear set	1
12		••Crown wheel	1
13		••Drive pinion	1
	11102884	•Limited slip differential	1
14	11988234	••Spider	1
15	11707504	••Differential side gear	4
16	11707505	••Differential side gear	2
17	11707507	••Friction disc	4
18	11707508	••Friction plate	REQ
	11707509	••Friction plate	REQ
	11707510	••Friction plate	REQ
19	11707506	••Thrust washer	2
20	1524673	•Screw	16
21	13946363	•Lock nut	16
22	184637	•Roller bearing	2
23	1523736	•Setting nut	1
24	11102411	•Bearing adjuster	1
25	1523666	•Roller bearing	1
26	1523232	•Spacer sleeve	REQ
	1523233	•Spacer sleeve	REQ
	1523234	•Spacer sleeve	REQ
	1523235	•Spacer sleeve	REQ
	1523236	•Spacer sleeve	REQ
	1523237	•Spacer sleeve	REQ
	1523623	•Spacer sleeve	REQ
	1523624	•Spacer sleeve	REQ
27	11035994	•Roller bearing	1
28	11102842	•Pin Brg Sleeve	1
	11035389	••Bushing	1
29	13944686	•O-ring	1
30	11035603	•Shim	REQ
	11035606	•Shim	REQ
	11035607	•Shim	REQ
	11035608	•Shim	REQ
31	13977111	•Allen Hd Screw	8
32	17264219 (11102883)	•Sealing ring	1
33	11102881	•Companion flange	1
34	1523317	•Washer	1
35	1522293	•Nut	1
36	1523318	•Lock washer	REQ
	1523319	•Lock washer	REQ
37	914484	•Snap ring	1
38	11102886	•Pipe	1
39	13977183	•O-ring	1
40	946329	•Flange screw	2
