WHEEL LOADER VOLVO L150E
BASIC MACHINE
PROD NO 33525, L150E, SER NO 10002 - 11594
CAB
PROD NO 33517, CAB
TRANSMISSION
PROD NO 22553, HTE210
DRIVE AXLES
PROD NO 23881, AWB 40B, front
PROD NO 23948, AWB 40C, rear
PROD NO 23895, AWB 40B, rear, 82605
LOADER UNIT
PROD NO 33518, L150 LA
PROD NO 33519, L150 LA, long boom, 80701
PROD NO 33523, L150 LA, long boom, 82687
PROD NO 33524, L150 LA, 82141
ENGINE
Part number 8188770, D12DLDE3

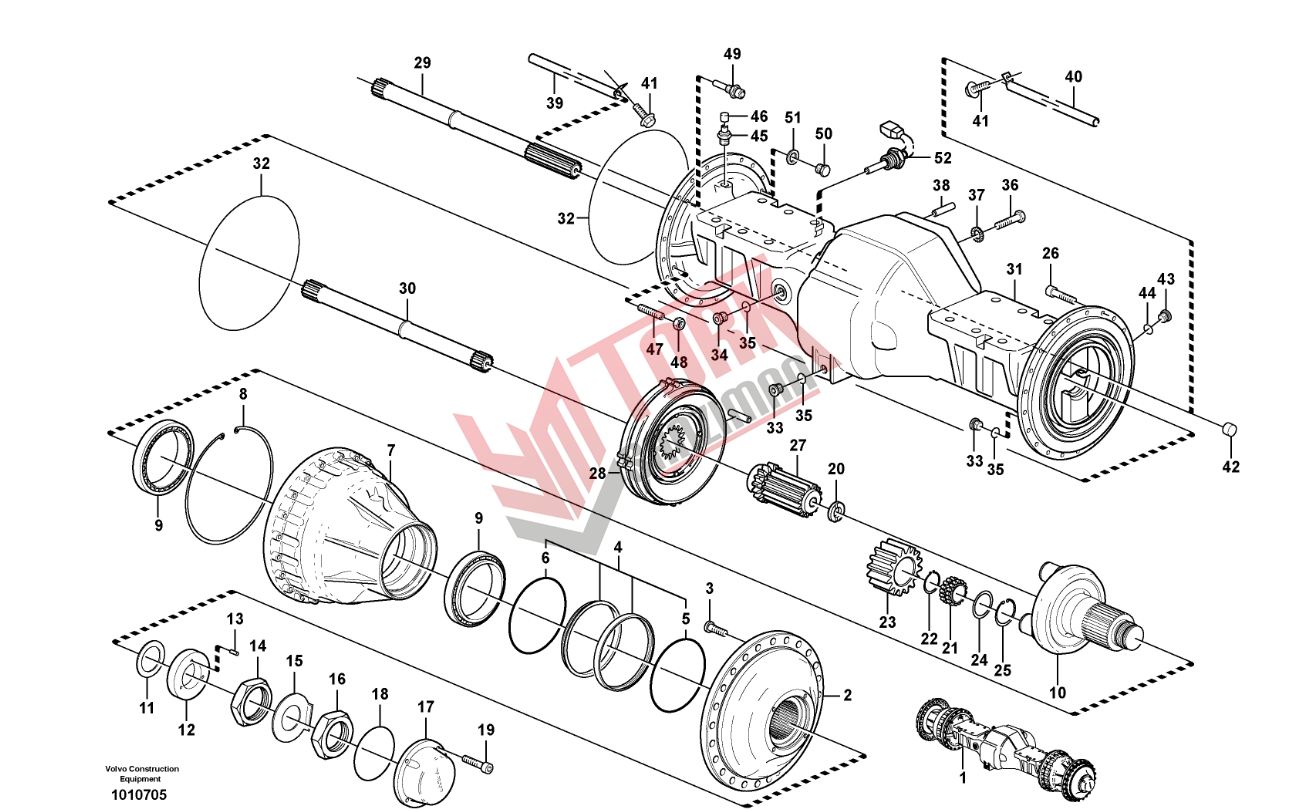

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 23881 |
Planet shaft | 1 |
| 2 | 15122410 |
•Hub | 2 |
| 3 | 15123158 |
••Wheel stud | 48 |
| 4 | 11102685 |
•Sealing ring | 2 |
| 5 | 11704008 |
••O-ring | 2 |
| 6 | 11704009 |
••O-ring | 2 |
| 7 | 11102439 |
•Hub retainer | 2 |
| 8 | 13976937 |
••Snap ring | 2 |
| 17246956 |
••Gear ring | 2 | |
| 9 | 11997036 |
•Roller bearing | 4 |
| 10 | 11035764 |
•Planet carrier | 2 |
| 11 | 11035766 |
•Shim | REQ |
| 11102775 |
•Shim | REQ | |
| 11035767 |
•Shim | REQ | |
| 11035768 |
•Shim | REQ | |
| 11035769 |
•Shim | REQ | |
| 12 | 11102307 |
•Washer | 2 |
| 13 | 951954 |
••Spring pin | 6 |
| 14 | 11035779 |
•Nut | 2 |
| 15 | 11035960 |
•Lock washer | 2 |
| 16 | 11035778 |
•Nut | 2 |
| 17 | 11102396 |
•Cover | 2 |
| 18 | 13980042 |
•O-ring | 2 |
| 19 | 967634 |
•Hex. socket screw | 12 |
| 20 | 11035554 |
•Washer | 2 |
| 21 | 11035642 |
•Bearing | 8 |
| 21 | 15010933 |
•Bearing | |
| 22 | 914478 |
•Snap ring | 8 |
| 23 | 11035821 |
•Planet gear | 8 |
| 23 | 15003253 |
•Planet gear | |
| 24 | 11035004 |
•Guide ring | 16 |
| 25 | 13977093 |
•Snap ring | 16 |
| 26 | 949544 |
•Hex. socket screw | 52 |
| 27 | 11102840 |
•Sun gear | 2 |
| 28 | |
•Brake | 2 |
| 29 | 11102827 |
•Drive shaft | 1 |
| 30 | 11102828 |
•Drive shaft | 1 |
| 31 | 17211611 |
•Axle casing | 1 |
| 32 | 11034910 |
•O-ring | 2 |
| 33 | 11102187 |
•Magnetic plug | 3 |
| 34 | 11034156 |
•Plug | 1 |
| 35 | 958228 |
•O-ring | 4 |
| 36 | 949544 |
•Hex. socket screw | 20 |
| 37 | 941912 |
•Spring washer | 20 |
| 38 | 950711 |
•Pin | 1 |
| 39 | 11103004 |
•Pipe | 1 |
| 40 | 11034924 |
•Pipe | 1 |
| 41 | 946440 |
•Flange screw | 2 |
| 42 | 955102 |
•Expansion plug | 2 |
| 43 | 13968610 |
•Plug | 2 |
| 44 | 13976109 |
•O-ring | 2 |
| 45 | 4871469 |
•Air vent valve | 2 |
| 46 | 11034256 |
••Protecting cap | 2 |
| 47 | 11035450 |
•Screw | 4 |
| 48 | 955793 |
•Hexagon nut | 4 |
| 49 | 11102446 |
•Wear Indicator | 2 |
| 50 | 960631 |
•Plug | 2 |
| 51 | 13947622 |
•Plane gasket | 2 |
| 52 | 11419485 |
•Temperature sensor | 1 |
