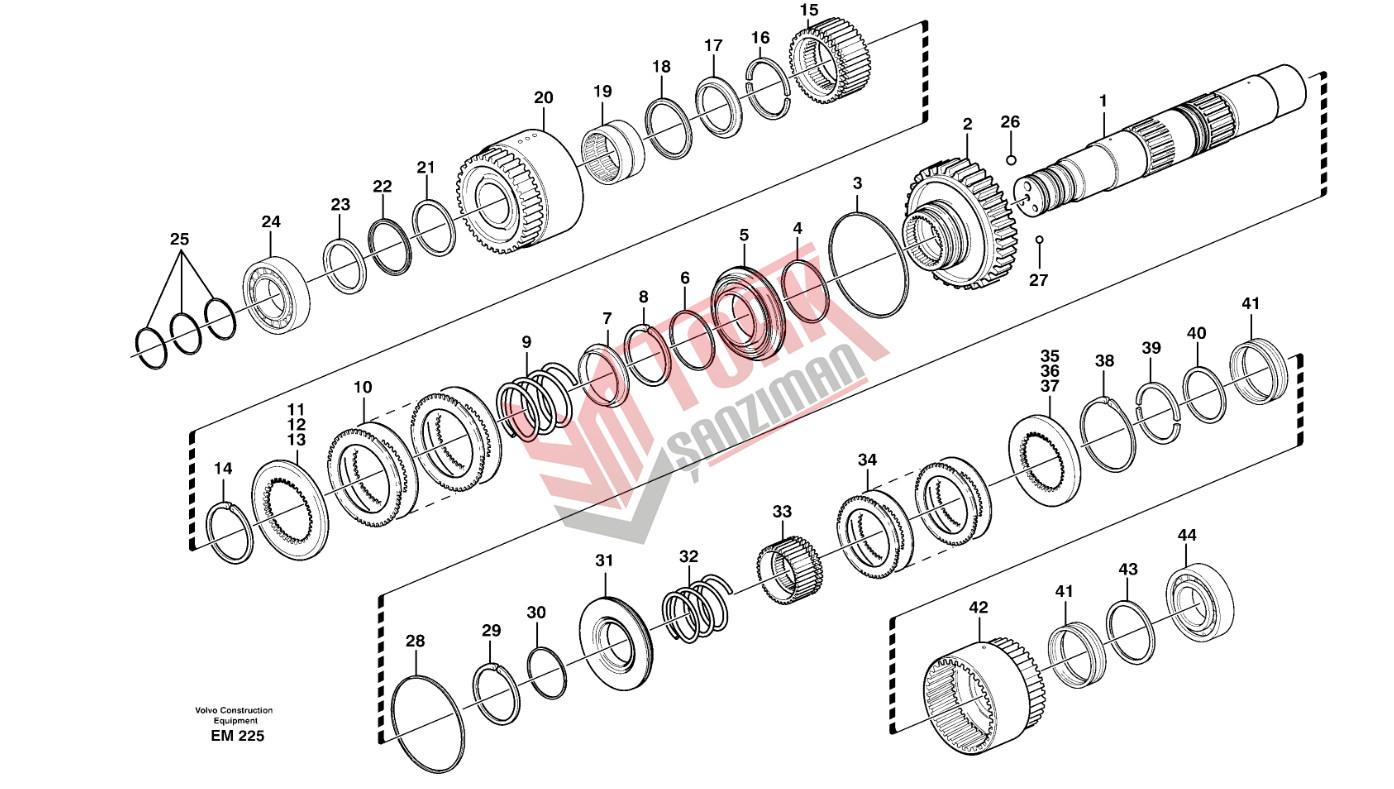

+90 552 671 32 12TRANSMISSION, HYDRAULIC CONTROL > 421/250 Hydraulic clutch, forward / 1 st speed
WHEEL LOADER VOLVO L150E
BASIC MACHINE
PROD NO 33525, L150E, SER NO 10002 - 11594
CAB
PROD NO 33517, CAB
TRANSMISSION
PROD NO 22553, HTE210
DRIVE AXLES
PROD NO 23881, AWB 40B, front
PROD NO 23948, AWB 40C, rear
PROD NO 23895, AWB 40B, rear, 82605
LOADER UNIT
PROD NO 33518, L150 LA
PROD NO 33519, L150 LA, long boom, 80701
PROD NO 33523, L150 LA, long boom, 82687
PROD NO 33524, L150 LA, 82141
ENGINE
Part number 8188770, D12DLDE3
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
11145394 |
Hydraulic clutch | 1 | |
| 1 | 11144024 |
•Clutch shaft | 1 |
| 2 | 11144026 |
•Gear | 1 |
| 3 | 4720864 |
•Piston ring | 1 |
| 4 | 4720865 |
•Piston ring | 1 |
| 5 | 11144458 |
•Piston | 1 |
| 6 | 4871223 |
•Piston ring | 1 |
| 7 | 4720854 |
•Spring retainer | 1 |
| 8 | 11037189 |
•Snap ring | 1 |
| 9 | 11037195 |
•Spring | 1 |
| 10 | 11144415 |
•Disc kit | 1 |
| 11 | 11144441 |
•Pressure plate | REQ |
| 12 | 11144442 |
•Pressure plate | REQ |
| 13 | 11144443 |
•Pressure plate | REQ |
| 14 | 13949928 |
•Snap ring | 1 |
| 15 | 11448506 (11144023) |
•Clutch hub | 1 |
| 16 | 4871337 |
•Retainer | 1 |
| 17 | 11145104 |
•Thrust washer | 1 |
| 18 | 184347 |
•Thrust needle roller assy | 1 |
| 19 | 11145265 |
•Needle bearing | 1 |
| 20 | 11144481 |
•Gear | 1 |
| 21 | 4871338 |
•Thrust washer | 1 |
| 22 | 4785772 |
•Needle bearing | 1 |
| 23 | 4871208 |
•Washer | 1 |
| 24 | 181006 |
•Roller bearing | 1 |
| 25 | 11037814 |
•Piston ring | 3 |
| 26 | 11037637 |
•Ball | 1 |
| 27 | 184645 |
•Ball | 1 |
| 28 | 4720864 |
•Piston ring | 1 |
| 29 | 11037183 |
•Snap ring | 1 |
| 30 | 4871428 |
•Piston ring | 1 |
| 31 | 11144634 |
•Piston | 1 |
| 32 | 4871532 |
•Spring | 1 |
| 33 | 11144459 |
•Clutch hub | 1 |
| 34 | 11145206 |
•Disc kit | 1 |
| 35 | 11144444 |
•Pressure plate | REQ |
| 36 | 11144445 |
•Pressure plate | REQ |
| 37 | 11144446 |
•Pressure plate | REQ |
| 38 | 11037827 |
•Lock ring | 1 |
| 39 | 4871337 |
•Retainer | 1 |
| 40 | 11037622 |
•Wear ring | 1 |
| 41 | 11145404 |
•Roller cage | 2 |
| 42 | 11145204 |
•Gear | 1 |
| 43 | 15139489 (11038834) |
•Wear ring | 1 |
| 44 | 11145390 |
•Bearing | 1 |
