WHEEL LOADER VOLVO 150
BASIC MACHINE
PROD NO 33515, Ser No 5001 - 5852
PROD NO 33515, Ser No 62501 - 62658 USA
CAB
PROD NO 33514, Care Cab II
TRANSMISSION
PROD NO 22526, HT210
PROD NO 22528, HT200R
DRIVING AXLE
PROD NO 23840, AWB 40, front
PROD NO 23851, AWB 40, front. 92952, 94632
PROD NO 23857, AWB 40, front. 80590
PROD NO 23841, AWB 40, rear
PROD NO 23853, AWB 40, rear. 92952
PROD NO 23856, AWB 40, rear. 94636
PROD NO 23875, AWB 40, rear. 80590, 94632
LOADING UNIT
PROD NO 33511
PROD NO 33513, 94575, Long boom
ENGINE
Part No 8188144, Typ TD103 KCE. Low exhaust emission version.

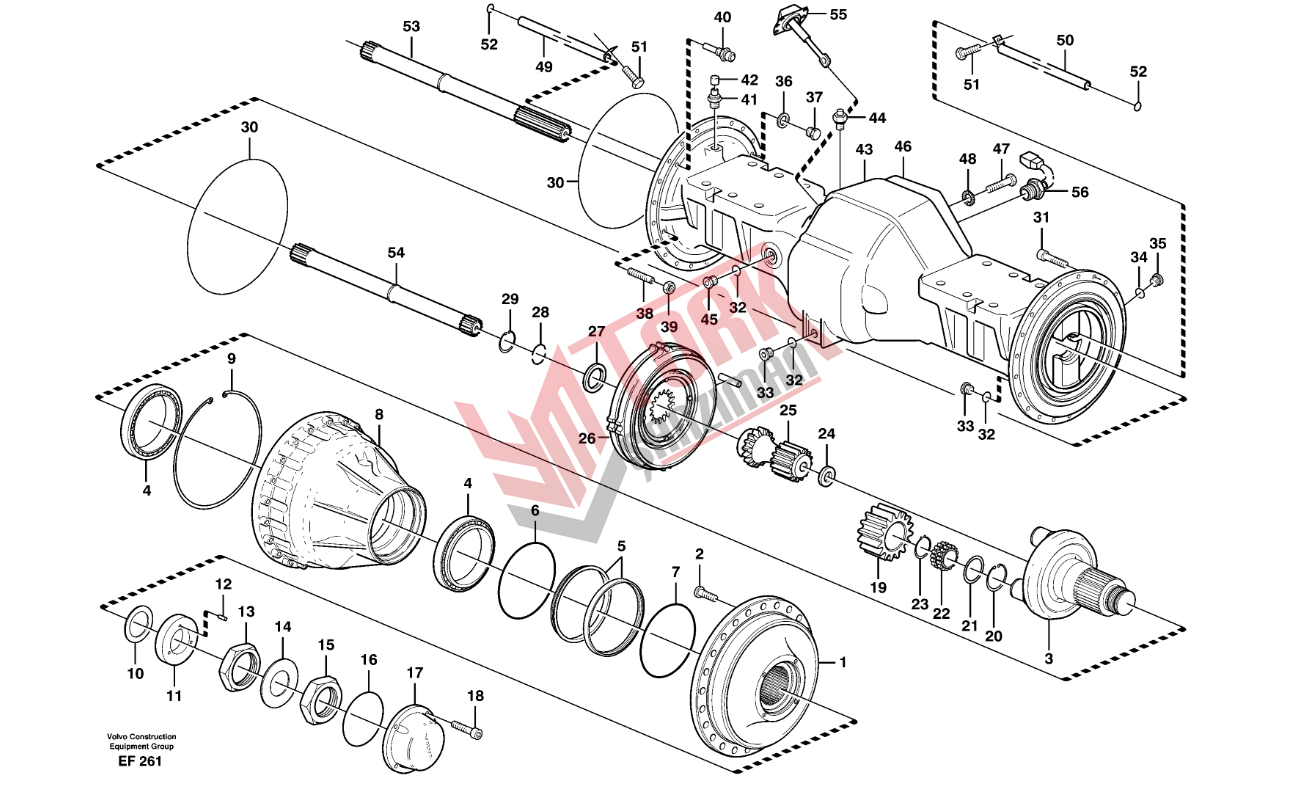

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 23840 |
Planetary Axle | 1 | |
| 23851 |
Planetary Axle | ||
| 23857 |
Planetary Axle | ||
| 15122410 (11168055) |
•Hub | 2 | |
| 1 | 11035758 |
••Hub | 2 |
| 2 | 11102584 |
••Wheel stud | 48 |
| 3 | 11035763 |
•Planet carrier | 2 |
| 4 | 11997036 |
•Roller bearing | 4 |
| 5 | 11102685 |
•Sealing ring | 2 |
| 6 | 11704008 |
••O-ring | 2 |
| 7 | 11704009 |
••O-ring | 2 |
| 8 | 11102439 (11035854) |
•Hub retainer | 2 |
| 9 | 13976937 |
••Snap ring | 2 |
| 17246956 |
••Gear ring | 2 | |
| 10 | 11035769 |
•Shim | REQ |
| 11035768 |
•Shim | REQ | |
| 11035767 |
•Shim | REQ | |
| 11102775 |
•Shim | REQ | |
| 11 | 11102307 |
•Washer | 2 |
| 12 | 951954 |
••Spring pin | 6 |
| 13 | 11035779 |
•Nut | 2 |
| 14 | 11035960 |
•Lock washer | 2 |
| 15 | 11035778 |
•Nut | 2 |
| 16 | 13980042 |
•O-ring | 2 |
| 17 | 11102396 |
•Cover | 2 |
| 18 | 967634 |
•Hex. socket screw | 12 |
| 19 | 11035821 |
•Planet gear | 6 |
| 20 | 13977093 |
•Snap ring | 12 |
| 21 | 11035004 |
•Guide ring | 12 |
| 22 | 11035642 |
•Bearing | 6 |
| 23 | 914478 |
•Snap ring | 6 |
| 24 | 11035554 |
•Washer | 2 |
| 25 | 11035820 |
•Sun gear | 2 |
| 26 | |
•Brake | 2 |
| 27 | 11035365 |
•Washer | 2 |
| 28 | 11034746 |
•Clampring half | 4 |
| 29 | 13949242 |
•Snap ring | 2 |
| 30 | 11034910 |
•O-ring | 2 |
| 31 | 949544 |
•Hex. socket screw | 40 |
| 32 | 958228 |
•O-ring | 4 |
| 33 | 11102187 |
•Magnetic plug | 3 |
| 34 | 13976109 |
•O-ring | 2 |
| 35 | 13968610 |
•Plug | 2 |
| 36 | 13947622 |
•Plane gasket | 2 |
| 37 | 960631 |
•Plug | 2 |
| 38 | 11035450 |
•Screw | 4 |
| 39 | 955793 |
•Hexagon nut | 4 |
| 40 | 11102446 |
•Wear Indicator | 2 |
| 41 | 4871469 |
•Air vent valve | 2 |
| 42 | 11034256 |
••Protecting cap | 2 |
| 43 | 11035573 |
•Axle casing | 1 |
| 11102895 |
•Axle casing | 1 | |
| 11035573 |
•Axle casing | ||
| 11102895 |
•Axle casing | ||
| 11035573 |
•Axle casing | ||
| 11102895 |
•Axle casing | ||
| 44 | 479979 |
•Plug | 1 |
| 45 | 11034156 |
•Plug | 1 |
| 46 | 11035353 |
•Differential carrier | 1 |
| 11035890 |
•Differential carrier | ||
| 11102003 |
•Final drive | ||
| 47 | 949544 |
•Hex. socket screw | 20 |
| 48 | 941912 |
•Spring washer | 20 |
| 49 | 11034924 |
•Pipe | 1 |
| 50 | 11103004 (11035176) |
•Pipe | 1 |
| 51 | 13955294 |
•Screw | 2 |
| 52 | 955102 |
•Expansion plug | 2 |
| 53 | 11035963 |
•Axle shaft | 1 |
| 54 | 11035964 |
•Axle shaft | 1 |
| 55 | |
•Differential lock | 1 |
| 56 | 11039193 |
•Temperature sensor | 1 |
