WHEEL LOADER VOLVO L150C
BASIC MACHINE
PROD NO 33502, SER NO 2768 -
PROD NO 33505, SER NO 60701 - USA
CAB
PROD NO 33503
PROD NO 33510, Replacement version
TRANSMISSION
PROD NO 30893, HT 210
PROD NO 30896, HT 200R, Replacement version
DRIVING AXLE
PROD NO 23840, front, AWB 40
PROD NO 23851, front, AWB 40. 92952, 94632
PROD NO 23857, front, AWB 40. 94634
PROD NO 23858, front, AWB 40. 94637
PROD NO 23841, rear, AWB 40
PROD NO 23853, rear, AWB 40. 92952
PROD NO 23856, rear, AWB 40. 94636, 94637
PROD NO 23875, rear, AWB 40. 94632, 94634
LOADING UNIT
PROD NO 33511
PROD NO 33513. 94575
ENGINE
Part No 8188141, TD 103KCE, Low exhaust emission version,
SER NO - 3110, 3112 - 3136, 3138 - 4000
SER NO - 61500 USA
Part No 8188144, TD 103KCE, Low exhaust emission version,
SER NO 3111, 3137, 4001 -
SER NO 61501 - USA

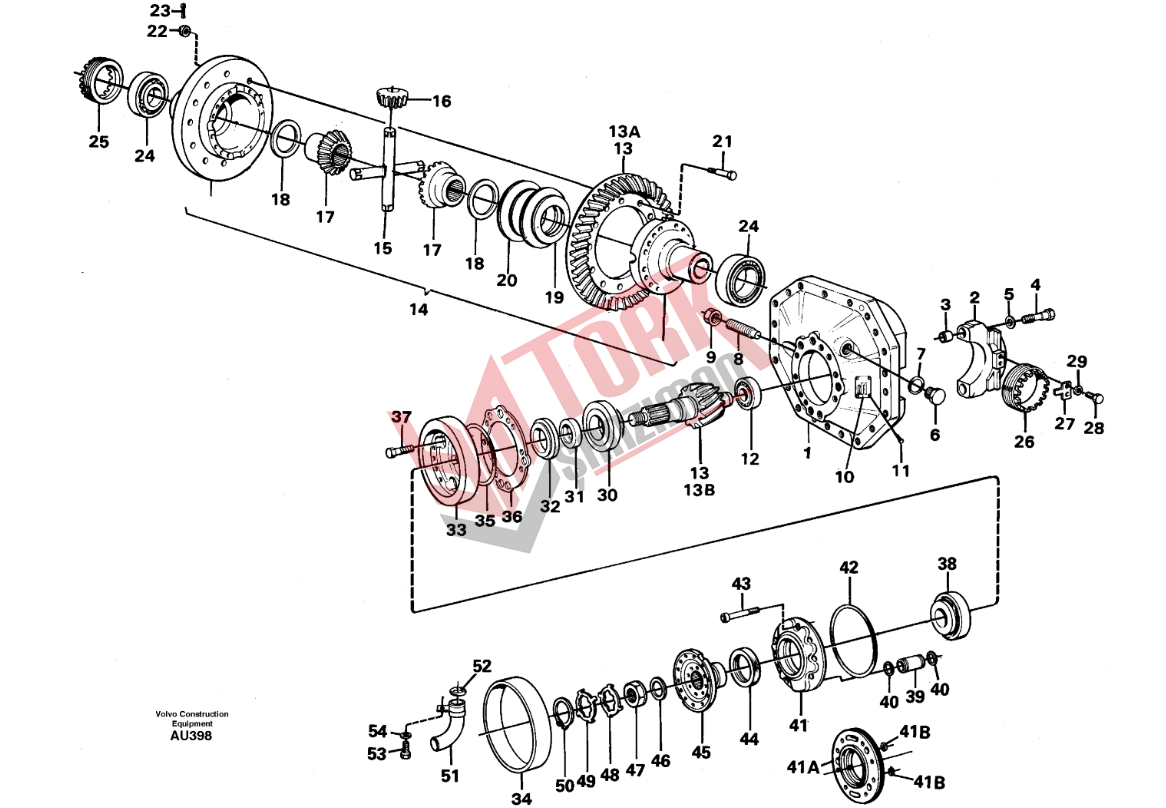

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 11102004 |
Final drive | 1 | |
| 11102002 |
Final drive | ||
| 1 | 11035117 |
•Centre housing | 1 |
| 2 | |
••Cap | 2 |
| 3 | 310719 |
••Bushing | 4 |
| 4 | 1524242 |
••Screw | 4 |
| 5 | 13946304 |
••Washer | 4 |
| 6 | 941375 |
•Plug | 1 |
| 7 | 958229 |
•O-ring | 1 |
| 8 | 1522474 |
•Screw | 1 |
| 9 | 948532 |
•Hexagon nut | 1 |
| 10 | (13934510) |
•Sign | 1 |
| 11 | 950891 |
•Drive screw | 2 |
| 12 | 183688 |
•Roller bearing | 1 |
| 13 | 11035269 |
•Drive gear set | 1 |
| 13A | |
••Crown wheel | 1 |
| 13B | |
••Drive pinion | 1 |
| 14 | 11035992 |
•Limited slip differential | 1 |
| 15 | 11701934 |
••Spider | 2 |
| 16 | 11701935 |
••Differential side gear | 4 |
| 17 | 11701936 |
••Differential side gear | 2 |
| 18 | 11701937 |
••Thrust washer | 2 |
| 19 | 11701938 |
••Friction disc | 4 |
| 20 | 11701939 |
••Friction plate | REQ |
| 11701940 |
••Friction plate | REQ | |
| 11701941 |
••Friction plate | REQ | |
| 21 | 946300 |
•Screw | 16 |
| 22 | 13946301 |
•Nut | 16 |
| 23 | 13907860 |
•Cotter Pin | 16 |
| 24 | 184637 |
•Roller bearing | 2 |
| 25 | 1522101 (384118) |
•Setting nut | 1 |
| 26 | 1522101 |
•Setting nut | 1 |
| 27 | 1524631 (7307451) |
•Lock plate | 2 |
| 28 | 13955294 |
•Screw | 4 |
| 29 | 955949 |
•Toothed washer | 4 |
| 30 | 184636 |
•Roller bearing | 1 |
| 31 | 1522000 |
•Spacer ring | REQ |
| 1522001 |
•Spacer ring | REQ | |
| 1522002 |
•Spacer ring | REQ | |
| 1522003 |
•Spacer ring | REQ | |
| 1522004 |
•Spacer ring | REQ | |
| 1522005 |
•Spacer ring | REQ | |
| 1522006 |
•Spacer ring | REQ | |
| 1522007 |
•Spacer ring | REQ | |
| 32 | 383524 |
•Oil plate | 1 |
| 11035646 |
•Pin Brg Sleeve | 1 | |
| 33 | 11035390 |
••Pin Brg Sleeve | 1 |
| 34 | 11035389 |
••Bushing | 1 |
| 35 | 13944686 |
•O-ring | 1 |
| 36 | 11034902 |
•Shim | REQ |
| 11034903 |
•Shim | REQ | |
| 11034904 |
•Shim | REQ | |
| 11034905 |
•Shim | REQ | |
| 37 | 4755949 |
•Hex. socket screw | 4 |
| 38 | 184634 |
•Roller bearing | 1 |
| 39 | 11034898 |
•Pipe | 3 |
| 40 | 958228 |
•O-ring | 6 |
| 41 | 11035352 |
•Oil pump | 1 |
| 41A | 11034897 |
•Cover | |
| 41B | 925066 |
•O-ring | 1 |
| 13978355 |
•O-ring | 1 | |
| 42 | 13967942 |
•O-ring | 1 |
| 43 | 13978797 |
•Allen Hd Screw | 4 |
| 13977111 |
•Allen Hd Screw | 4 | |
| 44 | 11034600 |
•Sealing ring | 1 |
| 45 | 11034114 |
•Companion flange | 1 |
| 46 | 941700 |
•Washer | 1 |
| 47 | 943805 |
•Hexagon nut | 1 |
| 48 | 382779 |
•Lock washer | REQ |
| 49 | 383992 |
•Lock washer | REQ |
| 50 | 914480 |
•Snap ring | 1 |
| 51 | 11034899 |
•Pipe | 1 |
| 52 | 13977183 |
•O-ring | 1 |
| 53 | 13955294 |
•Screw | 1 |
| 54 | 955949 |
•Toothed washer | 1 |
