WHEEL LOADER VOLVO L120H
BASIC MACHINE
PROD NO 33042, L120H, S/N 15722
PROD NO 33042, L120H, S/N 15841 -
PROD NO 33042, L120H, S/N 632321 -
CAB
PROD NO. 11294118
TRANSMISSION
PROD NO. 22726, HTE206E
PROD NO. 22727, HTL206D
DRIVE AXLES
PROD NO. 56005, AWB 31, front
PROD NO. 56006, AWB 30, rear
PROD NO. 56007, AWB 30, rear. 83041
LOADER UNIT
PROD NO. 33028, LU L120H LUB
PROD NO. 33038, LU L120H LB LUB
ENGINE
Part number 17211904, 85821, D8, EU
Part number 17256093, 86022, D8, EU
Part number 17480979, 87256, D8, USA
Part number 17480983, 87257, D8, USA

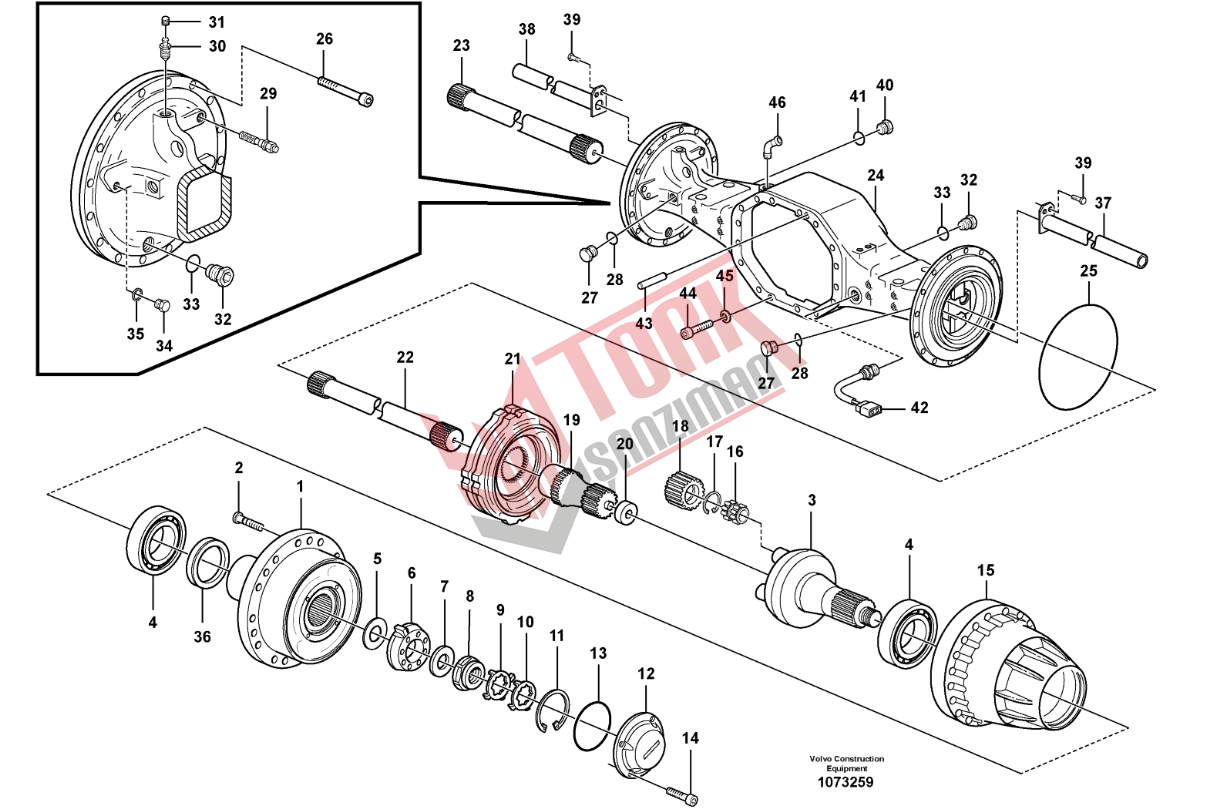

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 56007 |
Planet shaft | 1 | |
| 1 | 15122323 |
•Hub | 2 |
| 2 | 15107881 |
••Wheel stud | 36 |
| 3 | 17421171 |
•Planet carrier | 2 |
| 4 | 184836 |
•Roller bearing | 4 |
| 5 | 11034514 |
•Shim | REQ |
| 5 | 11034513 |
•Shim | REQ |
| 5 | 11034512 |
•Shim | REQ |
| 5 | 11102823 |
•Shim | REQ |
| 6 | 11034507 |
•Washer | 2 |
| 7 | 1523317 |
•Washer | 2 |
| 8 | 1522293 |
•Nut | 2 |
| 9 | 1523318 |
•Lock washer | REQ |
| 10 | 1523319 |
•Lock washer | REQ |
| 11 | 914484 |
•Snap ring | 2 |
| 12 | 11102336 |
•Cover | 2 |
| 13 | 13946442 |
•O-ring | 2 |
| 14 | 967634 |
•Hex. socket screw | 8 |
| 15 | 17395815 |
•Hub retainer | 2 |
| 17247015 |
••Gear ring | 2 | |
| 976936 |
••Retaining ring | 2 | |
| 16 | 11035001 |
•Bearing | 8 |
| 17 | 914474 |
•Snap ring | 8 |
| 18 | 11035819 |
•Planet gear | 8 |
| 19 | 11168079 |
•Sun gear | 2 |
| 20 | 11035554 |
•Washer | 2 |
| 21 | 15010225 |
•Brake plate | 2 |
| 22 | 11102622 |
•Drive shaft | 1 |
| 23 | 11102806 |
•Drive shaft | 1 |
| 24 | 17200499 |
•Axle casing | 1 |
| 25 | 11103303 |
•O-ring | 2 |
| 26 | 949544 |
•Hex. socket screw | 32 |
| 27 | 13960632 |
•Plug | 2 |
| 28 | 13947624 |
•Plane gasket | 2 |
| 29 | 17461352 |
•Wear indicator | 2 |
| 976970 |
••O-ring | 2 | |
| 30 | 4871469 |
•Air vent valve | 2 |
| 31 | 11034256 |
••Protecting cap | 2 |
| 32 | 11102187 |
•Magnetic plug | 3 |
| 33 | 958228 |
•O-ring | 3 |
| 34 | 960630 |
•Plug | 2 |
| 35 | 13969011 |
•Gasket | 2 |
| 36 | 11168122 |
•Sealing ring | 2 |
| 37 | 11102370 |
•Pipe | 1 |
| 38 | 11102370 |
•Pipe | 1 |
| 39 | 996328 |
•Flange screw | 4 |
| 40 | 11034156 |
•Plug | 1 |
| 41 | 958228 |
•O-ring | 1 |
| 42 | 15153124 |
•Temperature sensor | 1 |
| 43 | 950711 |
•Pin | 1 |
| 44 | 4782860 |
•Hex. socket screw | 16 |
| 45 | 994896 |
•Spring washer | 16 |
| 46 | 942337 |
•Nipple | 1 |
