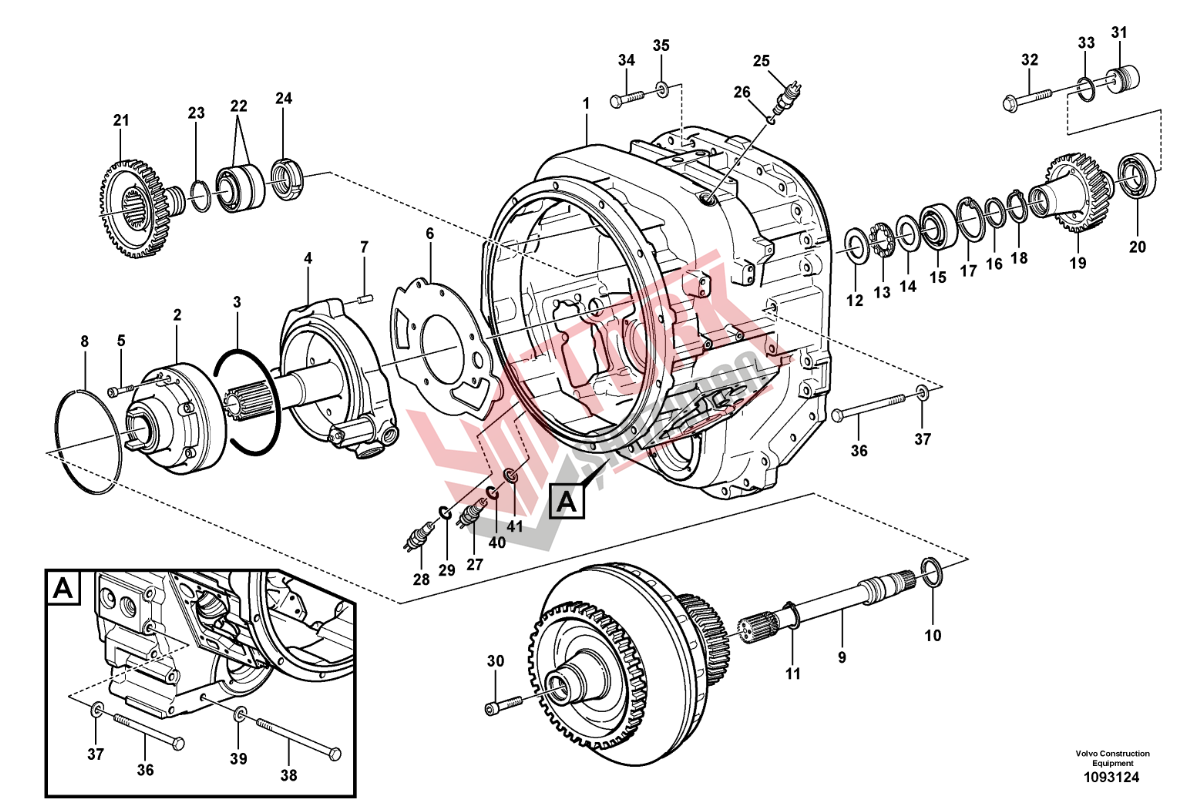

+90 552 671 32 12TRANSMISSION, HYDRAULIC CONTROL > 421/100 Converter housing, gears and shafts
WHEEL LOADER VOLVO L120H
BASIC MACHINE
PROD NO 33042, L120H, S/N 15722
PROD NO 33042, L120H, S/N 15841 -
PROD NO 33042, L120H, S/N 632321 -
CAB
PROD NO. 11294118
TRANSMISSION
PROD NO. 22726, HTE206E
PROD NO. 22727, HTL206D
DRIVE AXLES
PROD NO. 56005, AWB 31, front
PROD NO. 56006, AWB 30, rear
PROD NO. 56007, AWB 30, rear. 83041
LOADER UNIT
PROD NO. 33028, LU L120H LUB
PROD NO. 33038, LU L120H LB LUB
ENGINE
Part number 17211904, 85821, D8, EU
Part number 17256093, 86022, D8, EU
Part number 17480979, 87256, D8, USA
Part number 17480983, 87257, D8, USA
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 15112296 |
Converter housing | 1 | |
| 17218945 |
Converter housing | ||
| 2 | 15093008 |
Pump | 1 |
| 3 | 11706833 |
•O-ring | 1 |
| 4 | 11038738 |
Converter base | 1 |
| 4 | 15101564 |
Converter base | |
| 5 | 60112985 |
Hex. socket screw | 6 |
| 6 | 17429964 |
Gasket | 1 |
| 7 | 11036468 |
Locating pin | 1 |
| 8 | 11419318 |
Piston ring | 1 |
| 9 | 11037660 |
Shaft | 1 |
| 9 | 17206667 |
Turbine shaft | |
| 10 | 11037019 |
Piston ring | 1 |
| 11 | 13947902 |
Lock ring | 1 |
| 11 | 17208637 |
Snap ring | |
| 12 | 184230 |
Housing washer | 1 |
| 12 | 15160296 |
Thrust washer | |
| 13 | 184336 |
Roller and cage assembly | 1 |
| 14 | 184212 |
Shaft washer | 1 |
| 14 | 15162536 |
Thrust washer | |
| 15 | 183124 |
Roller bearing | 1 |
| 16 | 11037682 |
Washer | 1 |
| 17 | 13949905 |
Snap ring | 1 |
| 18 | 11038728 |
Snap ring | 1 |
| 19 | 17206148 |
Gear | 1 |
| 20 | 184853 |
Roller bearing | 1 |
| 21 | 15034972 |
Gear | 2 |
| 22 | 11037809 |
Roller bearing | 2 |
| 23 | 17443129 |
Snap ring | 2 |
| 24 | 60114228 |
Round nut | 2 |
| 25 | 15090257 |
Induction sensor | 1 |
| 26 | 13976109 |
O-ring | 1 |
| 27 | 15090261 |
Induction sensor | 1 |
| 28 | 15090274 |
Induction sensor | 1 |
| 29 | 13976109 |
O-ring | 1 |
| 30 | 996329 |
Hex. socket screw | 3 |
| 30 | 15043955 |
Screw | |
| 31 | 15110003 |
Adapter sleeve | |
| 32 | 60113077 |
Flange screw | |
| 33 | 15009097 |
Sealing ring | |
| 34 | 997452 |
Hexagon screw | 23 |
| 35 | 60112791 |
Spring washer | 23 |
| 36 | 997957 |
Hexagon screw | 5 |
| 37 | 60112791 |
Spring washer | 5 |
| 38 | 997959 |
Hexagon screw | 3 |
| 39 | 60112791 |
Spring washer | 3 |
| 40 | |
O-ring | 1 |
| 41 | 11038735 |
Spacer washer | 1 |
