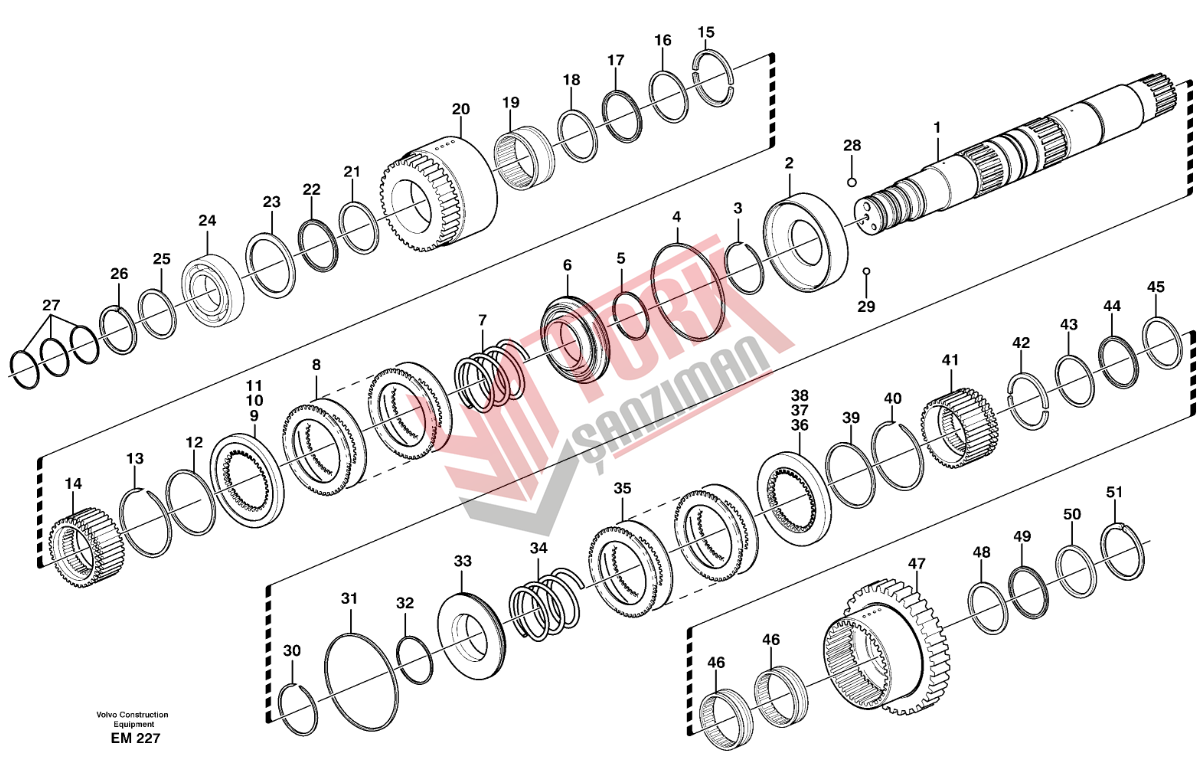

YM Güç Tork - 421/350 Hydraulic clutch, 3rd/4th speed - L120E

SEÇ/NO	PARÇA KOD	PARÇA ADI	PARÇA SAYISI
	11144440	Hydraulic clutch	1
1	11144450	•Clutch shaft	1
2	11144002	•Partition wall	1
3	4786535	•Lock ring	1
4	4720869	•Piston ring	1
5	4871048	•Piston ring	1
6	11144403	•Piston	1
7	4871533	•Spring	1
8	11144487	•Disc kit	1
9	11144447	•Pressure plate	REQ
10	11144448	•Pressure plate	REQ
11	11144449	•Pressure plate	REQ
12	4786536	•Lock ring	1
13	11037147	•Lock ring	1
14	11145103	•Clutch hub	1
15	4871337	•Retainer	1
16	4880972	•Thrust washer	1
17	4785772	•Needle bearing	1
18	4871338	•Thrust washer	1
19	11144006	•Needle bearing	1
20	11144463	•Gear	1
21	4871338	•Thrust washer	1
22	4785772	•Needle bearing	1
23	4718008	•Washer	1
24	183592	•Ball bearing	1
25	13949851	•Washer	1
26	11037179	•Snap ring	1
27	11037814	•Piston ring	3
28	11037637	•Ball	1
29	184645	•Ball	1
30	4786535	•Lock ring	1
31	4720869	•Piston ring	1
32	4871048	•Piston ring	1
33	11144403	•Piston	1
34	4871532	•Spring	1
35	11144486	•Disc kit	1
36	11144447	•Pressure plate	REQ
37	11144448	•Pressure plate	REQ
38	11144449	•Pressure plate	REQ
39	4786536	•Lock ring	1
40	11037147	•Lock ring	1
41	11144459	•Clutch hub	1
42	4871337	•Retainer	1
43	4880972	•Thrust washer	1
44	4785772	•Needle bearing	1
45	4871338	•Thrust washer	1
46	11145380	•Needle holder	1
47	11144464	•Gear	1
48	4871338	•Thrust washer	1
49	4785772	•Needle bearing	1
50	15175558 (4718930)	•Thrust washer	1
51	11037181	•Snap ring	1
