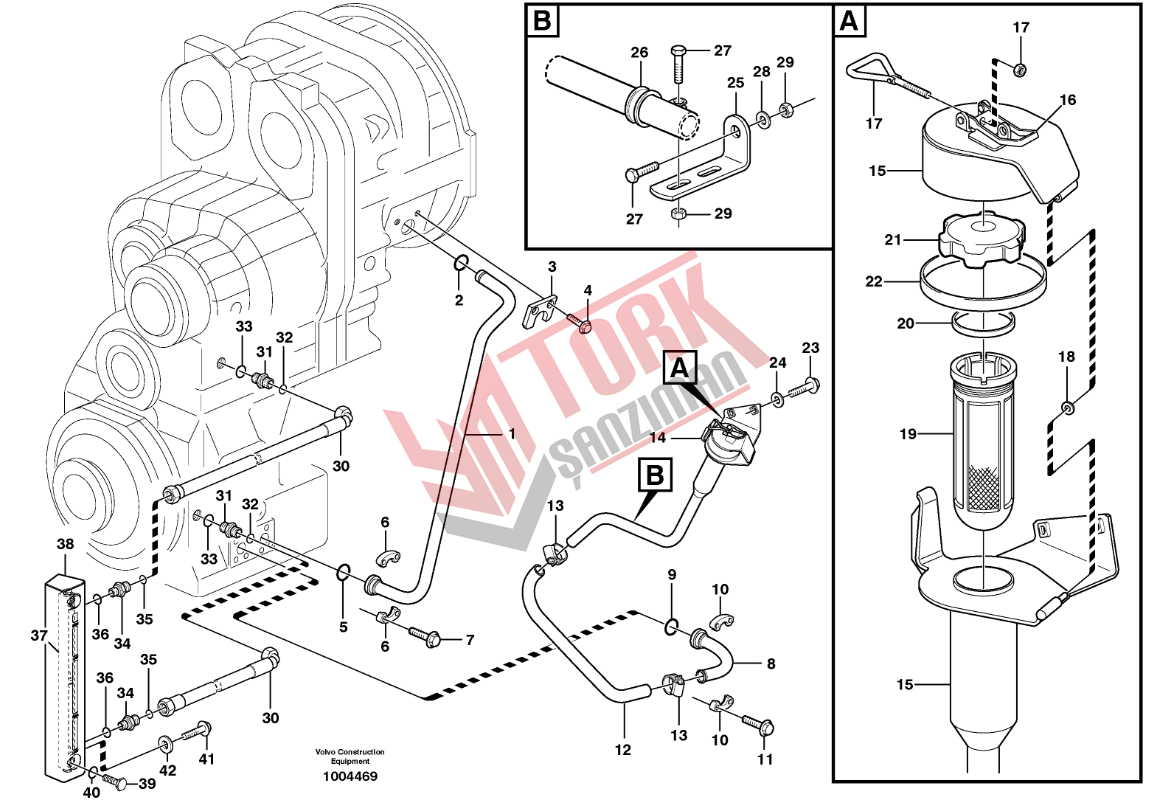

Wheel Loader Volvo L120E
BASIC MACHINE
PROD NO. 33380 L120E, SER NO. 19804 - SWE
PROD NO. 33380 L120E, SER NO. 66001 - USA
PROD NO. 33380 L120E, SER NO. 71401 - BRAZIL
CAB
PROD NO. 33357
PROD NO. 33366 USA
TRANSMISSION
PROD NO. 22521, HTE205
DRIVING AXLE
PROD NO. 23897, AWB 31, front
PROD NO. 23898, AWB 30, rear
LOADING UNIT
PROD NO. 33360
ENGINE
Part No. 11410957, VOLVO D7 ELAE 3
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 11410041 |
Return pipe | 1 |
| 2 | 421158 |
Sealing ring | 1 |
| 3 | 11031769 |
Lock washer | 1 |
| 4 | 946440 |
Flange screw | 2 |
| 5 | 990756 |
Sealing ring | 1 |
| 6 | 11015455 |
Flange half | 2 |
| 7 | 984080 |
Hex. socket screw | 4 |
| 8 | 11173586 |
Connecting pipe | 1 |
| 9 | 990756 |
Sealing ring | 1 |
| 10 | 11015455 |
Flange half | 2 |
| 11 | 984080 |
Hex. socket screw | 4 |
| 12 | 941799 |
Hose | 1 |
| 13 | 943476 |
Hose clamp | 2 |
| 14 | |
Filler cap | 1 |
| 11438029 |
Filler cap | ||
| 15 | 11173376 |
•Cap retainer | 1 |
| |
•Cap Retainer | ||
| 16 | 11015639 |
••Eccentric lock | 1 |
| 17 | 11015638 |
•Eye bolt | 1 |
| 18 | 4936343 |
•Washer | 1 |
| 19 | 11018236 |
•Strainer | 1 |
| 20 | 1275379 |
•Gasket | 1 |
| 21 | 421753 |
•Filler cap | 1 |
| 22 | 4786044 |
•Sealing strip | REQ |
| 23 | 946329 |
Flange screw | 2 |
| 13947760 |
Screw | ||
| 24 | 960148 |
Plain washer | 2 |
| 25 | 13965558 |
Bracket | 1 |
| 26 | 943717 |
Clamp | 1 |
| 27 | 13946173 |
Screw | 2 |
| 28 | 11117464 (13960141) |
Plain washer | 1 |
| 29 | 13945408 |
Nut | 2 |
| 30 | 11148957 |
Hose assembly | 2 |
| 31 | 13933855 |
Nipple | 2 |
| 32 | 990737 (4880492) |
•O-ring | 2 |
| 33 | 14213676 |
•Sealing ring | 2 |
| 11173956 |
Level indicator | 1 | |
| 34 | 14345423 |
•Nipple | 2 |
| 35 | 990737 (4880492) |
••O-ring | 2 |
| 36 | 14211856 |
••Sealing ring | 2 |
| 37 | 11145327 |
•Level sight glass | 1 |
| 38 | 11173957 |
•Bracket | 1 |
| 39 | 11145321 |
•Hollow screw | 2 |
| 40 | 3537521 |
•O-ring | 4 |
| 41 | 946329 |
Flange screw | 2 |
| 42 | 960148 |
Plain washer | 2 |
