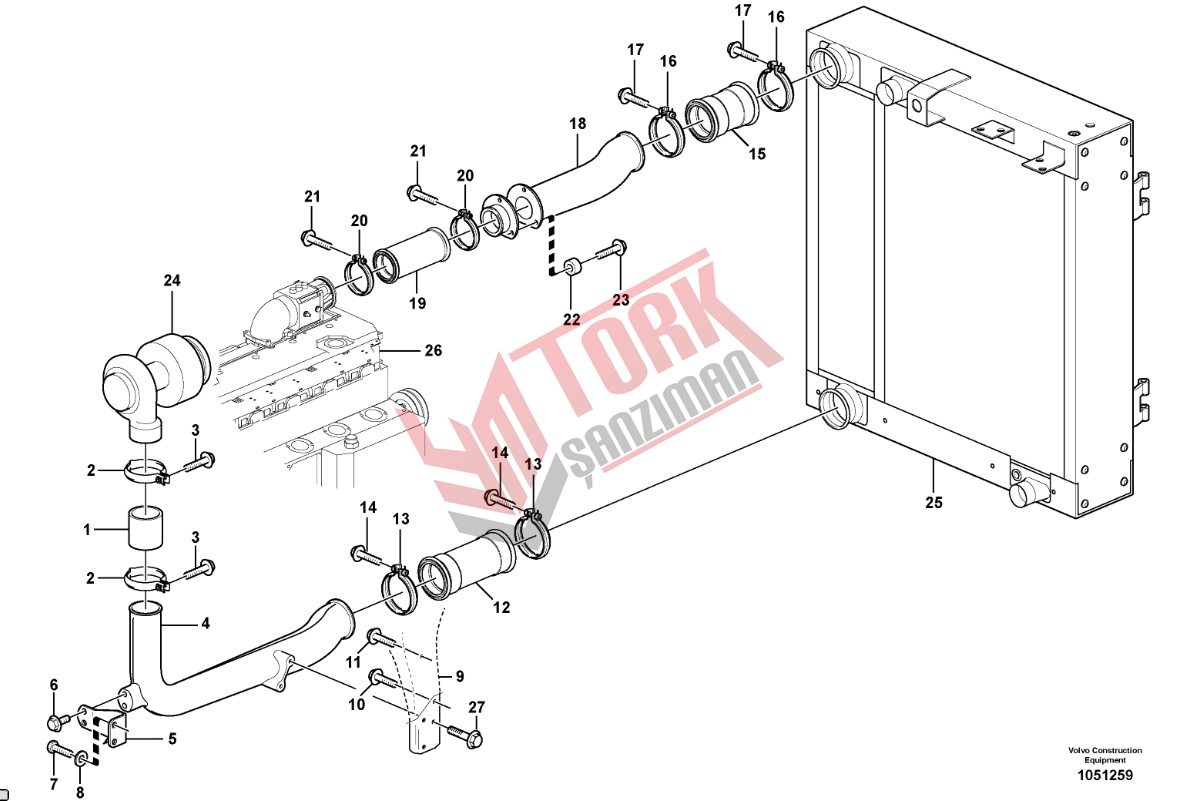

Wheel Loader Volvo L120E
BASIC MACHINE
PROD NO. 33380 L120E, SER NO. 19804 - SWE
PROD NO. 33380 L120E, SER NO. 66001 - USA
PROD NO. 33380 L120E, SER NO. 71401 - BRAZIL
CAB
PROD NO. 33357
PROD NO. 33366 USA
TRANSMISSION
PROD NO. 22521, HTE205
DRIVING AXLE
PROD NO. 23897, AWB 31, front
PROD NO. 23898, AWB 30, rear
LOADING UNIT
PROD NO. 33360
ENGINE
Part No. 11410957, VOLVO D7 ELAE 3
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 3183620 |
Charge air hose | 1 |
| 2 | 1542778 |
V-clamp | 2 |
| 3 | 13965176 |
Screw | 2 |
| 4 | 17299995 (11411266) |
Charge air pipe | 1 |
| 5 | 11411625 |
Bracket | 1 |
| 6 | 13945444 |
Screw | 2 |
| 7 | 983242 |
Hexagon screw | 2 |
| 8 | 930840 |
Plain washer | 4 |
| 8 | 930840 |
Plain washer | 3 |
| 9 | 11411160 |
Alternator anchorage | 1 |
| 10 | 13947760 |
Screw | 2 |
| 11 | 13965181 |
Screw | 1 |
| 12 | 15084140 (11110495) |
Charge air hose | 1 |
| 13 | 20787709 (1676424) |
V-clamp | 2 |
| 14 | 13948356 |
Flange screw | 2 |
| 15 | 11110594 |
Charge air hose | 1 |
| 16 | 20787709 |
V-clamp | 2 |
| 17 | 13948356 |
Flange screw | 2 |
| 18 | 11411638 |
Charge air pipe | 1 |
| 19 | 11110598 |
Charge air hose | 1 |
| 20 | 20739572 (8149651) |
V-clamp | 2 |
| 21 | 13948356 |
Flange screw | 2 |
| 22 | 930431 |
Spacer ring | 3 |
| 22 | 13949873 |
Spacer washer | 3 |
| 23 | 946671 |
Flange screw | 3 |
| 24 | |
Turbo | 1 |
| 25 | |
Radiator | 1 |
| 26 | |
Cylinder head | 1 |
| 27 | 946470 |
Flange screw | 2 |
