WHEEL LOADER VOLVO L120D
BASIC MACHINE
PROD NO 33351, L120D S/N 14001- 15418
PROD NO 33351, L120D USA S/N 63001- 63291
PROD NO 33351, L120D BRAZIL S/N 70501- 70615
PROD NO 33361, L120D IRAN S/N 52000 -
CAB
PROD NO 33264 Care Cab II
PROD NO 33281 SPARE PART CAB
PROD NO 33279 SEMI OPEN CAB
PROD NO 33370 CAB IRAN
TRANSMISSION
PROD NO 22525, HT205
PROD NO 22525, HT205 IRAN
DRIVING AXLE
PROD NO 23890, AWB 31, front
PROD NO 23891, AWB 30, rear
LOADING UNIT
PROD NO 33352
PROD NO 33354, Long Boom, oval stay bar 80158
ENGINE
Part No 8188126, Typ TD73 KDE. Low exhaust emission version.
Part No 8188127, Typ TD73 KDE, 93961

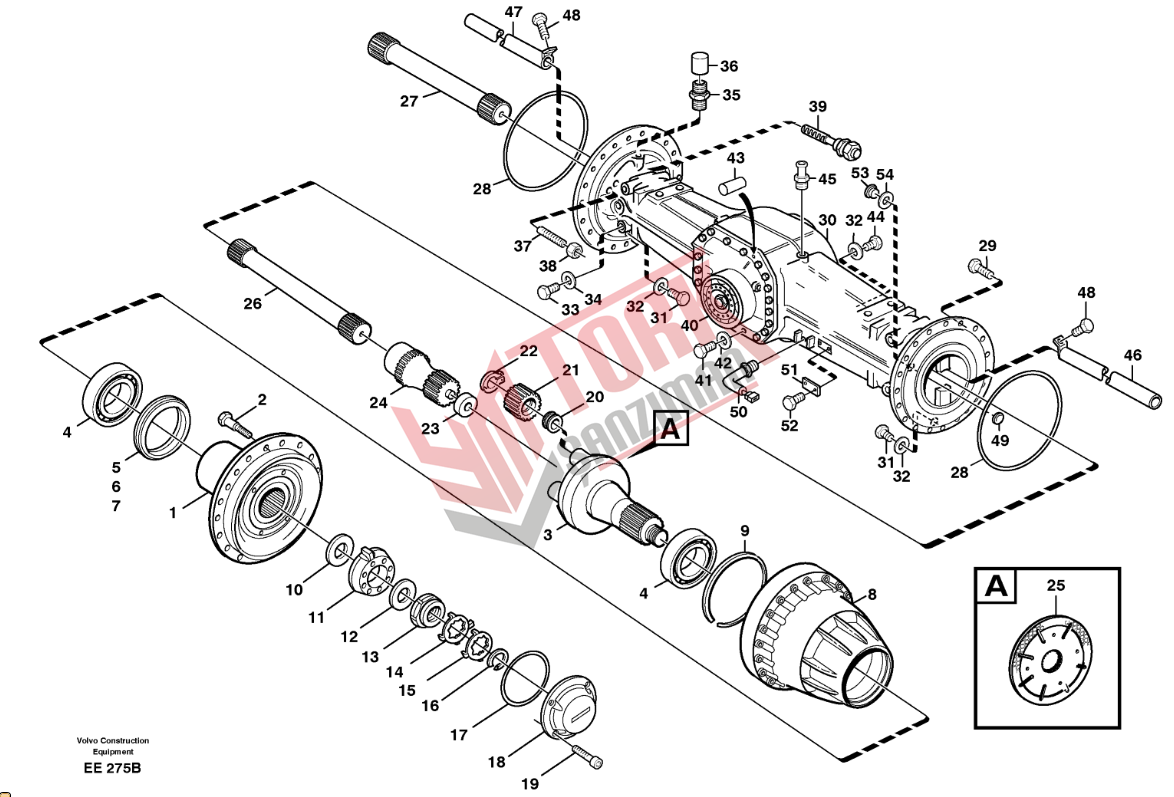

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 23891 |
Planet shaft | 1 | |
| 23892 |
Planet shaft | ||
| 11168152 (11168131) |
•Wheel hub | 2 | |
| 1 | 11168120 |
••Hub | 2 |
| 2 | 15107881 (11102585) |
••Wheel stud | 36 |
| 3 | 11102015 |
•Planet carrier | 2 |
| 17421171 (11102912) |
•Planet carrier | ||
| 4 | 184836 |
•Roller bearing | 4 |
| 5 | 11102533 |
•Sealing ring | 2 |
| 6 | 11704006 |
••O-ring | 2 |
| 7 | 11704007 |
••O-ring | 2 |
| 11168122 |
•Sealing ring | 2 | |
| 8 | 11102617 |
•Hub retainer | 2 |
| 11168129 |
•Hub retainer | 2 | |
| 9 | 976936 |
••Retaining ring | 2 |
| 10 | 11102823 |
•Shim | REQ |
| 11034512 |
•Shim | REQ | |
| 11034513 |
•Shim | REQ | |
| 11034514 |
•Shim | REQ | |
| 11 | 11034507 |
•Washer | 2 |
| 12 | 1523317 |
•Washer | 2 |
| 13 | 1522293 |
•Nut | 2 |
| 14 | 1523319 |
•Lock washer | REQ |
| 15 | 1523318 |
•Lock washer | REQ |
| 16 | 914484 |
•Snap ring | 2 |
| 17 | 13946442 |
•O-ring | 2 |
| 18 | 11102336 |
•Cover | 2 |
| 19 | 959236 |
•Hex. socket screw | 8 |
| 967634 |
•Hex. socket screw | 8 | |
| 20 | 11035001 |
•Bearing | 6 |
| 21 | 11035819 |
•Planet gear | 6 |
| 22 | 914474 |
•Snap ring | 6 |
| 23 | 11035554 |
•Washer | 2 |
| 24 | 11102621 |
•Sun gear | 2 |
| 25 | |
•Brake | 2 |
| 26 | 11102622 (11102807) |
•Drive shaft | 1 |
| 27 | 11102806 |
•Drive shaft | 1 |
| 28 | 11103303 (11034981) |
•O-ring | 2 |
| 29 | 949544 |
•Hex. socket screw | 32 |
| 30 | 11102778 |
•Axle casing | 1 |
| 31 | 11102187 |
•Magnetic plug | 3 |
| 32 | 958228 |
•O-ring | 4 |
| 33 | 13960632 |
•Plug | 2 |
| 34 | 13947624 |
•Plane gasket | 2 |
| 35 | 4871469 |
•Air vent valve | 2 |
| 36 | 11034256 |
••Protecting cap | 2 |
| 37 | 11035450 |
•Screw | 4 |
| 38 | 955793 |
•Hexagon nut | 4 |
| 39 | 11102446 |
•Wear Indicator | 2 |
| 40 | 11102815 |
•Differential carrier | 1 |
| 11102817 |
•Differential carrier | ||
| 41 | 4782860 |
•Hex. socket screw | 16 |
| 42 | 941912 |
•Spring washer | 16 |
| 43 | 950711 |
•Pin | 1 |
| 44 | 11034156 |
•Plug | 1 |
| 45 | 13961653 |
•Nipple | 1 |
| 46 | 11035407 |
•Pipe | 1 |
| 47 | 11035404 |
•Pipe | 1 |
| 48 | 13955294 |
•Screw | 6 |
| 49 | 955102 |
•Expansion plug | 6 |
| 50 | 11419485 |
•Temperature sensor | 1 |
| 51 | |
•Sign | 1 |
| 52 | 950891 |
•Drive screw | 1 |
| 53 | 960630 |
•Plug | 2 |
| 54 | 13969011 |
•Gasket | 2 |
