WHEEL LOADER VOLVO L120C
BASIC MACHINE
PROD NO 33336, SER NO 11319 - 13783
PROD NO 33336, SER NO 61677 - 62625 USA
PROD NO 33336, SER NO 70075 - 70272 BRAZIL
CAB
PROD NO 33250
93505 OPEN ROPS BRAZIL
TRANSMISSION
PROD NO 22500, HT 205
PROD NO 30896, HT 200R, Replacement version
DRIVING AXLE
PROD NO 23846, front, AWB 31
PROD NO 23847, rear, AWB 30
PROD NO 23859, rear, AWB 30 Limited slip diff, 94689
LOADING UNIT
PROD NO 33337
LOAD 1647 - 13780
PROD NO 33352
LOAD 1009 - 2150
ENGINE
Part No 8188120, TD 73KDE, Low exhaust emission

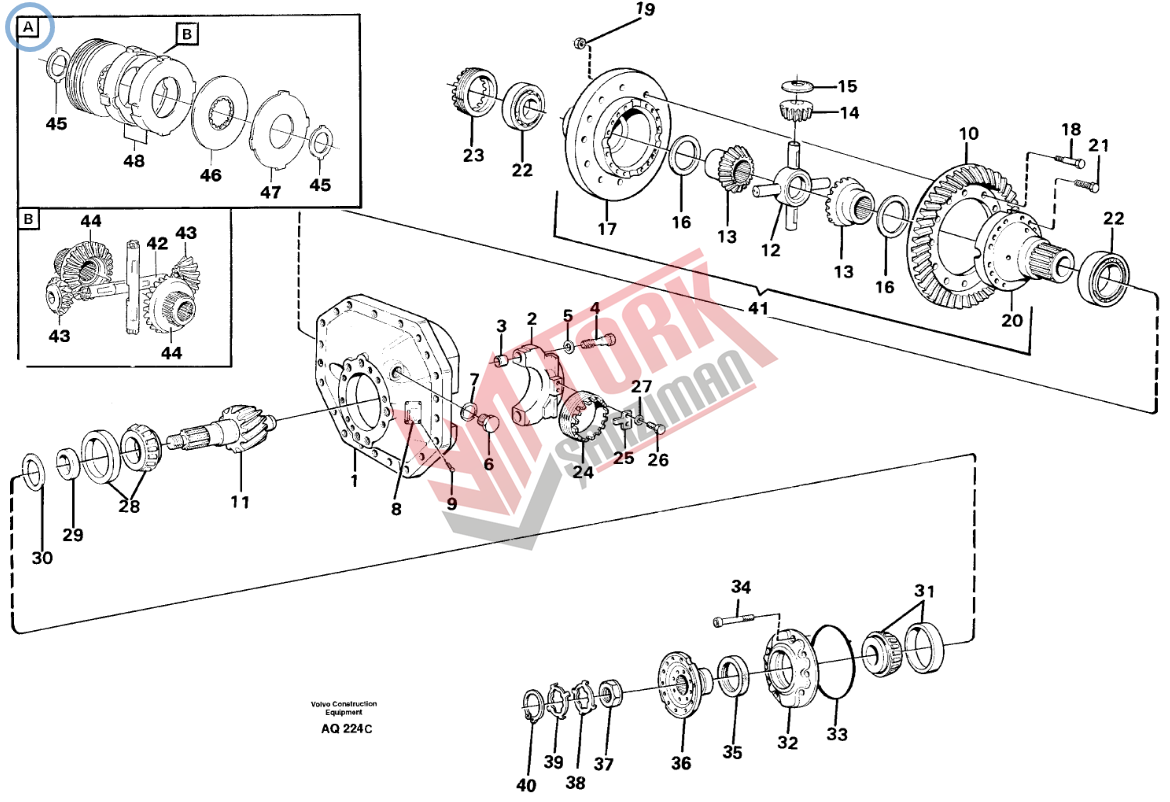

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 23846 |
Planetary Axle | 1 | |
| 23861 |
Planetary Axle | ||
| 11035837 |
Final drive | 1 | |
| 11102007 |
Final drive | ||
| 1 | 11035839 |
•Centre housing | 1 |
| 11102785 |
•Centre housing | ||
| 2 | 1523562 |
••Cap | 2 |
| 3 | 310719 (7310719) |
••Bushing | 4 |
| 4 | 1524242 |
••Screw | 4 |
| 5 | 13946304 |
••Washer | 4 |
| 6 | 941375 |
•Plug | 1 |
| 7 | 958229 |
•O-ring | 1 |
| 8 | |
•Sign | 1 |
| 9 | 950891 |
•Drive screw | 2 |
| 15194310 (11035999) |
•Drive gear set | 1 | |
| 10 | |
••Crown wheel | 1 |
| 11 | |
••Drive pinion | 1 |
| 12 | 11102047 |
•Spider | 1 |
| 11701918 |
•Spider | ||
| 13 | 17415136 (1524588) |
•Differential side gear | 2 |
| 11701920 |
•Differential side gear | ||
| 14 | 1524587 |
•Differential side gear | 4 |
| 11701919 |
•Differential side gear | ||
| 15 | 17203766 (11102049) |
•Thrust washer | 4 |
| 11701922 |
•Friction disc | ||
| 16 | 11102146 |
•Thrust washer | 2 |
| 11701921 |
•Thrust washer | ||
| 17 | 11102046 |
•Differential housing | 1 |
| 18 | 11102062 (11035730) |
•Hexagon screw | 14 |
| 11102062 |
•Hexagon screw | 14 | |
| 19 | 13946008 |
•Lock nut | 14 |
| 20 | 11102145 |
•Differential housing | 1 |
| 21 | 13979275 |
•Hexagon screw | 16 |
| 22 | 183704 |
•Roller bearing | 2 |
| 23 | 1522136 |
•Setting nut | 1 |
| 24 | 1522136 |
•Setting nut | 1 |
| 25 | 1522426 |
•Lock washer | 2 |
| 26 | 13955294 |
•Screw | 4 |
| 27 | 13941907 |
•Washer | 4 |
| 28 | 11035994 |
•Roller bearing | 1 |
| 29 | 11034695 |
•Shim | REQ |
| 11034696 |
•Shim | REQ | |
| 11034697 |
•Shim | REQ | |
| 30 | 11034828 |
•Spacer ring | REQ |
| 11034829 |
•Spacer ring | REQ | |
| 11034830 |
•Spacer ring | REQ | |
| 11034831 |
•Spacer ring | REQ | |
| 4870247 |
•Spacer ring | REQ | |
| 4870248 |
•Spacer ring | REQ | |
| 4870249 |
•Spacer ring | REQ | |
| 4870250 |
•Spacer ring | REQ | |
| 31 | 17221241 (184660) |
•Roller bearing | 1 |
| 32 | 17221242 |
•Cover | 1 |
| 33 | 17221243 |
•O-ring | 1 |
| 34 | 17221244 |
•Hex. socket screw | 8 |
| 35 | 17221245 |
•Sealing ring | 1 |
| 36 | 17221246 |
•Companion flange | 1 |
| 37 | 17221247 |
•Nut | 1 |
| 38 | 17221248 |
•Lock washer | REQ |
| 39 | 17221249 |
•Lock washer | REQ |
| 40 | 17221250 |
•Snap ring | 1 |
| 41 | 17221251 |
•Limited slip differential | - |
| 42 | 17221252 |
••Spider | - |
| 43 | 17221253 |
••Differential side gear | - |
| 44 | 17221254 |
••Differential side gear | - |
| 45 | 17221255 |
••Thrust washer | - |
| 46 | 17221256 |
••Friction disc | - |
| 47 | 17221257 |
••Friction plate | - |
| 17221258 |
••Friction plate | - | |
| 17221259 |
••Friction plate | - | |
| 48 | 17221260 |
••Pressure Plate | - |
