WHEEL LOADER VOLVO L120C
BASIC MACHINE
PROD NO 33336, SER NO 11319 - 13783
PROD NO 33336, SER NO 61677 - 62625 USA
PROD NO 33336, SER NO 70075 - 70272 BRAZIL
CAB
PROD NO 33250
93505 OPEN ROPS BRAZIL
TRANSMISSION
PROD NO 22500, HT 205
PROD NO 30896, HT 200R, Replacement version
DRIVING AXLE
PROD NO 23846, front, AWB 31
PROD NO 23847, rear, AWB 30
PROD NO 23859, rear, AWB 30 Limited slip diff, 94689
LOADING UNIT
PROD NO 33337
LOAD 1647 - 13780
PROD NO 33352
LOAD 1009 - 2150
ENGINE
Part No 8188120, TD 73KDE, Low exhaust emission

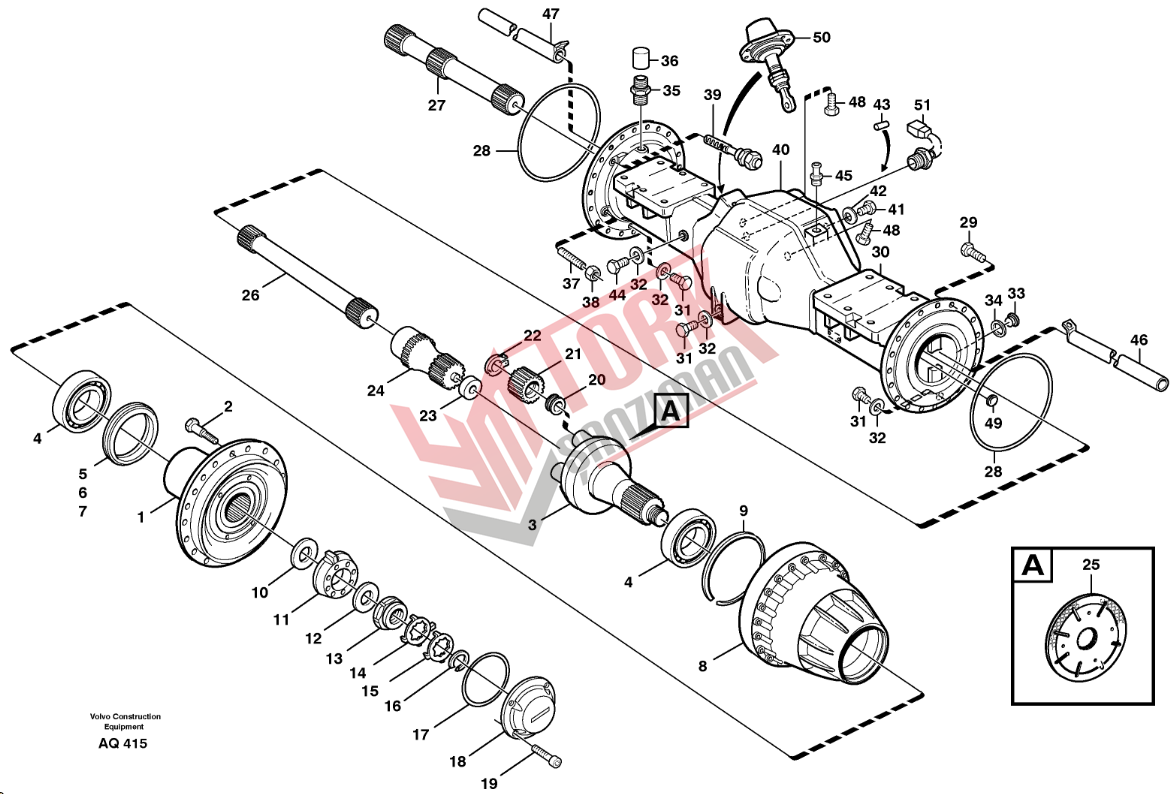

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 23890 |
Planet shaft | 1 | |
| 11168152 (11168053) |
•Wheel hub | 2 | |
| 1 | 11102776 |
••Hub | 2 |
| 2 | 15107881 (11102585) |
••Wheel stud | 36 |
| 3 | 11102015 |
•Planet carrier | 2 |
| 4 | 184836 |
•Roller bearing | 4 |
| 5 | 11102533 |
•Sealing ring | 2 |
| 6 | 11704006 |
••O-ring | 2 |
| 7 | 11704007 |
••O-ring | 2 |
| 8 | 11102617 |
•Hub retainer | 2 |
| 9 | 976936 |
••Retaining ring | 2 |
| 10 | 11102823 |
•Shim | REQ |
| 11034512 |
•Shim | REQ | |
| 11034513 |
•Shim | REQ | |
| 11034514 |
•Shim | REQ | |
| 11 | 11034507 |
•Washer | 2 |
| 12 | 1523317 |
•Washer | 2 |
| 13 | 1522293 |
•Nut | 2 |
| 14 | 1523319 |
•Lock washer | REQ |
| 15 | 1523318 |
•Lock washer | REQ |
| 16 | 914484 |
•Snap ring | 2 |
| 17 | 13946442 |
•O-ring | 2 |
| 18 | 11102336 |
•Cover | 2 |
| 19 | 959236 |
•Hex. socket screw | 8 |
| 20 | 11035001 |
•Bearing | 8 |
| 21 | 11035819 |
•Planet gear | 8 |
| 22 | 914474 |
•Snap ring | 8 |
| 23 | 11035554 |
•Washer | 2 |
| 24 | 11102621 |
•Sun gear | 2 |
| 25 | |
•Brake | 2 |
| 26 | 11102806 |
•Drive shaft | 1 |
| 27 | 11102622 |
•Drive shaft | 1 |
| 28 | 11103303 (11034981) |
•O-ring | 2 |
| 29 | 949544 |
•Hex. socket screw | 32 |
| 30 | 11102777 |
•Axle casing | 1 |
| 31 | 11102187 |
•Magnetic plug | 3 |
| 32 | 958228 |
•O-ring | 4 |
| 33 | 13960632 |
•Plug | 2 |
| 34 | 13947624 |
•Plane gasket | 2 |
| 35 | 4871469 |
•Air vent valve | 2 |
| 36 | 11034256 |
••Protecting cap | 2 |
| 37 | 11035450 |
•Screw | 4 |
| 38 | 955793 |
•Hexagon nut | 4 |
| 39 | 11102446 |
•Wear Indicator | 2 |
| 40 | |
•Diff Carrier | 1 |
| 41 | 4782860 |
•Hex. socket screw | 18 |
| 42 | 941912 |
•Spring washer | 18 |
| 43 | 950711 |
•Pin | 1 |
| 44 | 11034156 |
•Plug | 1 |
| 45 | 13961653 |
•Nipple | 1 |
| 46 | 11035407 |
•Pipe | 1 |
| 47 | 11035404 |
•Pipe | 1 |
| 48 | 13955294 |
•Screw | 2 |
| 49 | 955102 |
•Expansion plug | 2 |
| 50 | |
•Differential lock | 1 |
| 51 | 11039193 |
•Temperature sensor | 1 |
