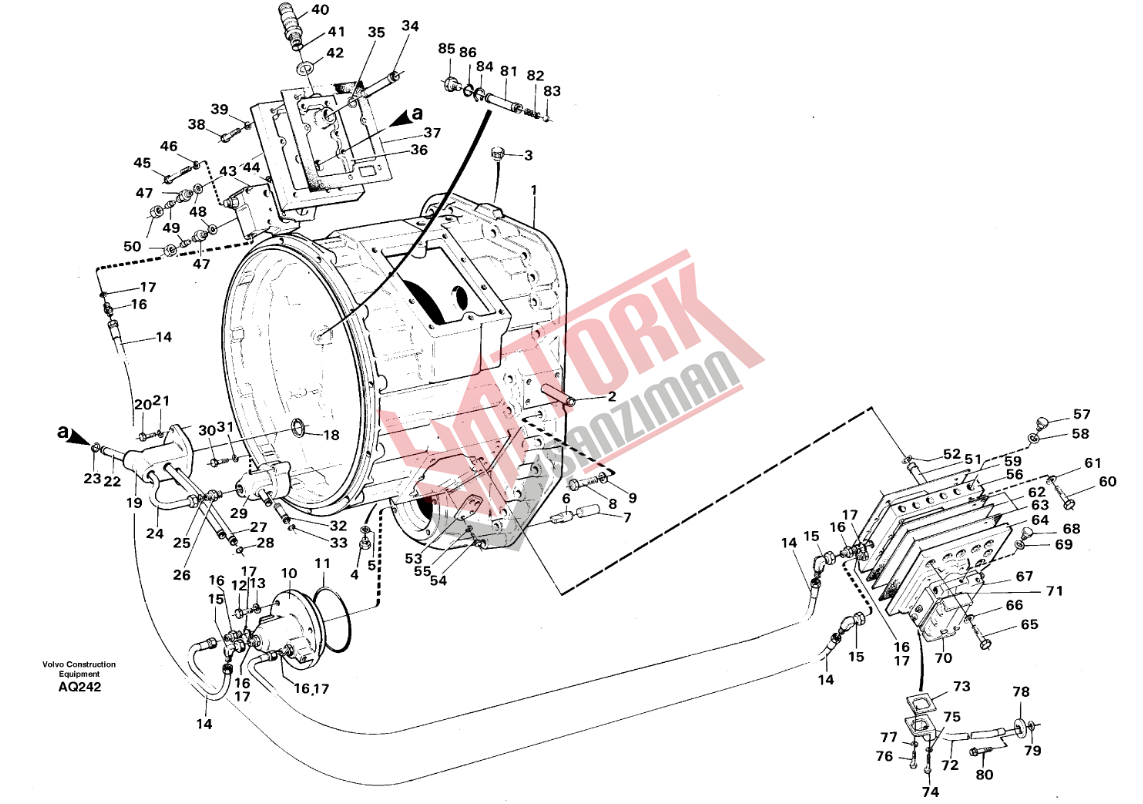

+90 552 671 32 12TRANSMISSION, HYDRAULIC CONTROL > 421/50 Converter housing with fitting parts
WHEEL LOADER VOLVO L120C
BASIC MACHINE
PROD NO 33336, SER NO 11319 - 13783
PROD NO 33336, SER NO 61677 - 62625 USA
PROD NO 33336, SER NO 70075 - 70272 BRAZIL
CAB
PROD NO 33250
93505 OPEN ROPS BRAZIL
TRANSMISSION
PROD NO 22500, HT 205
PROD NO 30896, HT 200R, Replacement version
DRIVING AXLE
PROD NO 23846, front, AWB 31
PROD NO 23847, rear, AWB 30
PROD NO 23859, rear, AWB 30 Limited slip diff, 94689
LOADING UNIT
PROD NO 33337
LOAD 1647 - 13780
PROD NO 33352
LOAD 1009 - 2150
ENGINE
Part No 8188120, TD 73KDE, Low exhaust emission
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 11701681 |
Housing | 1 | |
| 11705113 |
Housing | 1 | |
| 1 | 11701681 |
•Housing | 1 |
| 2 | 4720963 |
•Tube | 1 |
| 3 | 479956 (11987548) |
Plug | 1 |
| 4 | 13968614 |
Plug | 1 |
| 5 | 13968561 |
O-ring | 1 |
| 6 | 4718167 |
Pin | 1 |
| 7 | 950711 |
Pin | 1 |
| 8 | 970978 (13970978) |
Hexagon screw | 25 |
| 970988 (13970988) |
Hexagon screw | 4 | |
| 13970989 |
Hexagon screw | 2 | |
| 9 | 940280 |
Spring washer | 31 |
| 10 | 11037277 |
Oil distributor | 1 |
| 11038395 (11037671) |
Oil distributor | 1 | |
| 11 | 925263 |
O-ring | 1 |
| 12 | 955297 |
Hexagon screw | 4 |
| 946470 |
Flange screw | 4 | |
| 13 | 13941907 |
Washer | 4 |
| 14 | 11145413 (13933708) |
Hose assembly | 3 |
| 15 | 13964016 |
Nipple | 3 |
| 16 | 957031 |
Nipple | 6 |
| 17 | 958226 |
O-ring | 6 |
| 18 | 11037186 |
Snap ring | 1 |
| 19 | 4871012 |
Oil distributor | 1 |
| 20 | 955297 |
Hexagon screw | 2 |
| 21 | 13941907 |
Washer | 2 |
| 22 | 4720956 |
Tube | 1 |
| 23 | 13949656 |
O-ring | 2 |
| 24 | 4720997 |
Pipe | 1 |
| 25 | 968007 |
O-ring | 1 |
| 26 | 931227 |
Nipple | 1 |
| 931211 |
•O-ring | 1 | |
| 931218 |
•Back-up ring | 1 | |
| 27 | 4720952 |
Pipe | 2 |
| 28 | 968007 |
O-ring | 2 |
| 29 | 11037229 |
Oil distributor | 1 |
| 30 | 955299 |
Hexagon screw | 2 |
| 31 | 13941907 |
Washer | 2 |
| 32 | 11144077 (4720955) |
Tube | 2 |
| 33 | 968007 |
O-ring | 4 |
| 34 | 4720956 |
Tube | 1 |
| 35 | 13949656 |
O-ring | 2 |
| 36 | 11037269 |
Connection plate | 1 |
| 37 | 11037009 |
Gasket | 1 |
| 38 | 13955298 |
Screw | 6 |
| 39 | 13941907 |
Washer | 6 |
| 40 | 930032 |
Testing nipple | 1 |
| 41 | 931209 |
•O-ring | 1 |
| 931216 |
•Back-up ring | 1 | |
| 42 | 13947621 |
Plane gasket | 1 |
| 43 | |
Lubricating oil valve | 1 |
| 44 | 11037012 |
Gasket | 1 |
| 45 | 955304 |
Hexagon screw | 2 |
| 13955307 |
Screw | 2 | |
| 46 | 13941907 |
Washer | 4 |
| 47 | 11020547 |
Nipple | 2 |
| 48 | 4881255 |
Plane gasket | 2 |
| 49 | 13964093 |
Closure | 2 |
| 50 | 956990 |
Fitting nut | 2 |
| 51 | 4720933 |
Pipe | 1 |
| 52 | 13949656 |
O-ring | 2 |
| 53 | |
Plate | 1 |
| 54 | 13955294 |
Screw | 2 |
| 55 | 13941907 |
Washer | 2 |
| 56 | 11037232 |
Connection plate | 1 |
| 57 | 941371 |
Plug | 6 |
| 58 | 13949574 |
O-ring | 6 |
| 59 | 11037007 |
Gasket | 1 |
| 60 | 959223 |
Hex. socket screw | 4 |
| 61 | 13941907 |
Washer | 4 |
| 62 | 11037046 (11037235) |
Spacer | 1 |
| 63 | 11037045 (11037234) |
Gasket | 2 |
| 64 | 11037047 (11037236) |
Cover plate | 1 |
| 65 | 955297 |
Hexagon screw | 2 |
| 955301 |
Hexagon screw | 8 | |
| 66 | 13941907 |
Washer | 10 |
| 67 | |
Gear changing unit | 1 |
| 68 | 941371 |
Plug | 1 |
| 69 | 13949574 |
O-ring | 1 |
| 70 | |
Pr limit valve | 1 |
| 71 | 11037048 |
Gasket | 1 |
| 72 | 11037040 |
Oil channel | 1 |
| 73 | 11037062 |
Gasket | 1 |
| 74 | 955282 |
Hexagon screw | 2 |
| 75 | 13949607 |
Washer | 2 |
| 76 | 955275 |
Hexagon screw | 2 |
| 77 | 13949607 |
Washer | 2 |
| 78 | 11037042 |
Flange | 1 |
| 79 | 13976562 |
O-ring | 1 |
| 80 | 13946934 |
Screw | 2 |
| 81 | 11037821 (4720978) |
Tube | 1 |
| 11144013 |
Tube | 1 | |
| 82 | 4720983 |
Spring | 1 |
| 83 | 192619 |
Ball | 1 |
| 84 | 914454 |
Snap ring | 1 |
| 85 | 11034156 |
Plug | 1 |
| 86 | 958228 |
O-ring | 1 |
