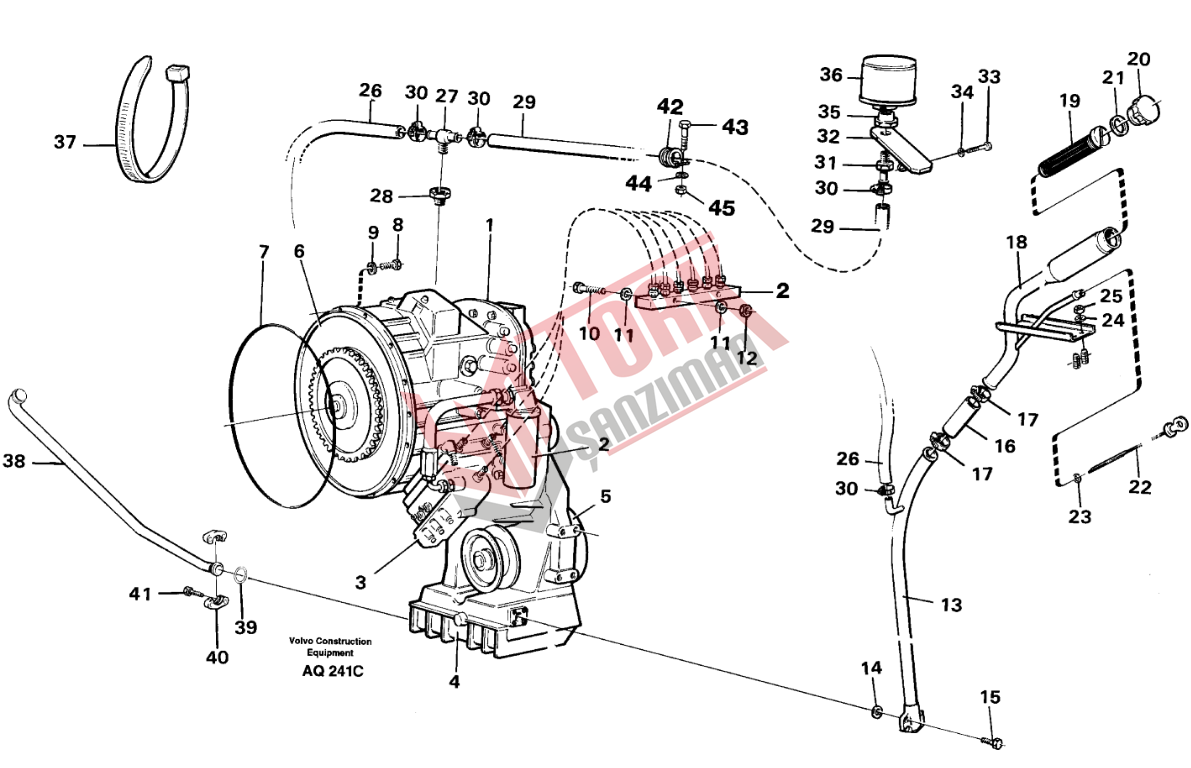

+90 552 671 32 12TRANSMISSION, HYDRAULIC CONTROL > 421/100 Hydraulic transmission with fitting parts
WHEEL LOADER VOLVO L120C
BASIC MACHINE
PROD NO 33336, SER NO 11319 - 13783
PROD NO 33336, SER NO 61677 - 62625 USA
PROD NO 33336, SER NO 70075 - 70272 BRAZIL
CAB
PROD NO 33250
93505 OPEN ROPS BRAZIL
TRANSMISSION
PROD NO 22500, HT 205
PROD NO 30896, HT 200R, Replacement version
DRIVING AXLE
PROD NO 23846, front, AWB 31
PROD NO 23847, rear, AWB 30
PROD NO 23859, rear, AWB 30 Limited slip diff, 94689
LOADING UNIT
PROD NO 33337
LOAD 1647 - 13780
PROD NO 33352
LOAD 1009 - 2150
ENGINE
Part No 8188120, TD 73KDE, Low exhaust emission
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 22500 |
Hydraulic transmission | 1 | |
| 30896 |
Hydraulic transmission | ||
| 1 | |
•Converter shell | 1 |
| 2 | |
•Oil filter | 1 |
| 3 | |
•Gear selector valve | 1 |
| 4 | |
•Transfer case | 1 |
| 5 | |
•Parking brake | 1 |
| 6 | |
•Torque converter | 1 |
| 7 | 968203 |
O-ring | 1 |
| 8 | 13970974 |
Hexagon screw | 12 |
| 9 | 955896 |
Plain washer | 12 |
| 10 | 970952 (13970952) |
Hexagon screw | 2 |
| 11 | 13960143 |
Washer | 4 |
| 12 | 971071 |
Hexagon nut | 2 |
| 13 | 11020332 |
Filler pipe | 1 |
| 14 | 990756 (13948700) |
Sealing ring | 1 |
| 15 | 959239 |
Hex. socket screw | 4 |
| 16 | 941799 |
Hose | REQ |
| 17 | 943476 |
Hose clamp | 2 |
| 18 | 11025937 |
Filler pipe | 1 |
| 19 | 11018236 |
Strainer | 1 |
| 20 | 421753 |
Filler cap | 1 |
| 21 | 1275379 (940096) |
•Gasket | 1 |
| 22 | 11020245 |
Oil dipstick | 1 |
| 23 | 955972 |
O-ring | 1 |
| 24 | 13955894 |
Washer | 2 |
| 25 | 955782 |
Hexagon nut | 2 |
| 26 | 13944075 |
Rubber hose | REQ |
| 27 | 13948092 |
T-nipple | 1 |
| 28 | 11025207 |
Nipple | 1 |
| 29 | 13944075 |
Rubber hose | REQ |
| 30 | 943469 |
Hose clamp | 4 |
| 943470 |
Hose clamp | 4 | |
| 31 | 947502 |
Nipple | 1 |
| 32 | 11019197 |
Retainer | 1 |
| 33 | 13970954 |
Hexagon screw | 1 |
| 34 | 976945 (13960148) |
Washer | 4 |
| 35 | 4854955 |
Nipple | 1 |
| 36 | 11172907 (4881323) |
Air filter | 1 |
| 37 | 14016673 (4881438) |
Strip clamp | 1 |
| 38 | 11173444 (11037283) |
Tube | 1 |
| 39 | 990756 (13948700) |
Sealing ring | 1 |
| 40 | 927947 |
Flange half | 2 |
| 41 | 13970949 |
Hexagon screw | 4 |
| 42 | 952628 |
Clamp | 1 |
| 43 | 13955272 |
Screw | 1 |
| 44 | 955892 |
Plain washer | 1 |
| 45 | 13955781 |
Nut | 1 |
| 11990357 |
Gasket kit | 1 |
