WHEEL LOADER VOLVO L120C
BASIC MACHINE
PROD NO 33336, SER NO 11319 - 13783
PROD NO 33336, SER NO 61677 - 62625 USA
PROD NO 33336, SER NO 70075 - 70272 BRAZIL
CAB
PROD NO 33250
93505 OPEN ROPS BRAZIL
TRANSMISSION
PROD NO 22500, HT 205
PROD NO 30896, HT 200R, Replacement version
DRIVING AXLE
PROD NO 23846, front, AWB 31
PROD NO 23847, rear, AWB 30
PROD NO 23859, rear, AWB 30 Limited slip diff, 94689
LOADING UNIT
PROD NO 33337
LOAD 1647 - 13780
PROD NO 33352
LOAD 1009 - 2150
ENGINE
Part No 8188120, TD 73KDE, Low exhaust emission

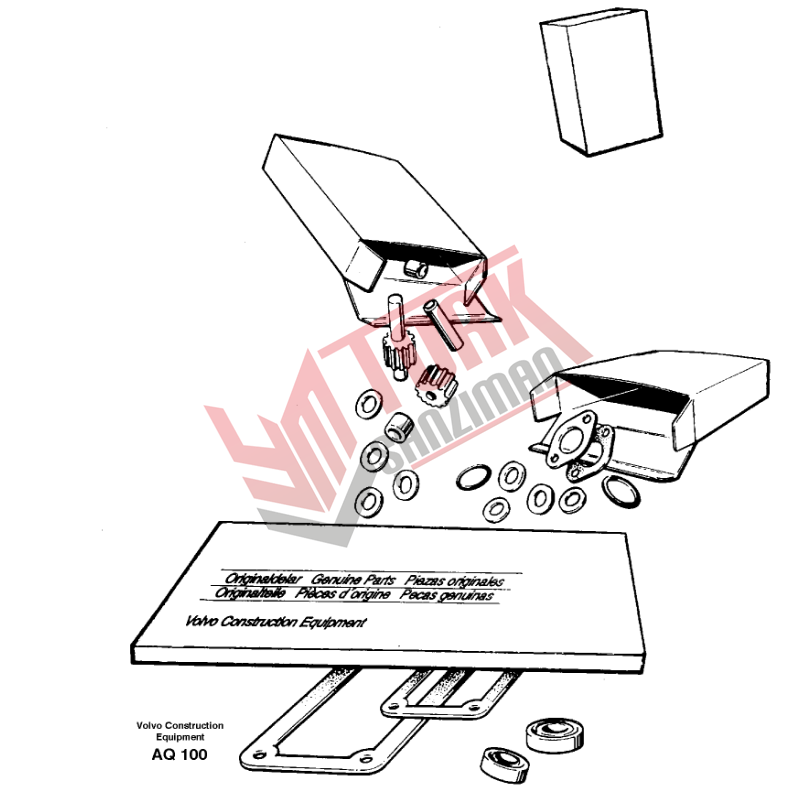

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 276130 |
Repair kit | 6 | |
| |
For cylinder head | ||
| 11997122 |
Overhaul kit | 1 | |
| 276816 |
•Gasket kit | 2 | |
| 276038 |
•De-carbonizing kit | 1 | |
| 8149182 (1676306) |
•Thermostat | 1 | |
| 3829433 (424612) |
•Gasket | 2 | |
| 471650 |
•Gasket | 6 | |
| 420618 |
•Gasket | 1 | |
| 11997123 |
Overhaul kit | 1 | |
| 477657 |
•Valve seat | 6 | |
| 477659 |
•Valve seat | 6 | |
| 3978768 (477447) |
•Inlet valve | 6 | |
| 477443 |
•Exhaust valve | 6 | |
| 477792 |
•Valve guide | 12 | |
| 276130 |
•Repair kit | 6 | |
| 11997124 |
Overhaul kit | 1 | |
| 270115 |
•Big End Brg Kit | 6 | |
| 275641 |
•Cylinder liner kit | 6 | |
| 465815 |
•Screw | 12 | |
| 11030779 |
•Gasket | 1 | |
| 11997128 |
Overhaul kit | 1 | |
| 270432 |
•Main bearing kit | 7 | |
| 276754 |
•Thrust washer | 1 | |
| 477449 |
•Valve cap | 12 | |
| 11997123 |
•Overhaul kit | 1 | |
| 276039 |
•Gasket kit | 1 | |
| 276038 |
De-carbonizing kit | 1 | |
| |
For decarbonizing | ||
| 21501189 (859171) |
•Valve stem seal | 12 | |
| 471520 |
•Gasket | 2 | |
| 469982 |
•Sealing ring | 4 | |
| 471637 |
•Sealing ring | 2 | |
| 471708 |
•Sealing ring | 2 | |
| 471788 |
•Sealing ring | 1 | |
| 471856 |
•Sealing ring | 4 | |
| 477059 |
•O-ring | 2 | |
| 477449 |
•Valve cap | 12 | |
| 1544710 |
•Sealing ring | 1 | |
| 11998685 |
Gasket kit | 1 | |
| |
Inlet - exhaust pipe | ||
| 862620 |
•Gasket | 1 | |
| 3829433 (424612) |
•Gasket | 2 | |
| 471650 |
•Gasket | 6 | |
| 275748 |
•Sealing kit | 1 | |
| 275641 |
Cylinder liner kit | 6 | |
| 276900 |
Cylinder liner kit | 6 | |
| 271159 |
Sealing ring kit | 6 | |
| 276037 |
Piston ring kit | 6 | |
| |
Big end bearing kit | 6 | |
| |
Mn bearing kit | 7 | |
| |
Thrust washer kit | 1 | |
| 276039 |
Gasket kit | 1 | |
| 275748 |
•Sealing kit | 6 | |
| 420618 |
•Gasket | 1 | |
| 420641 |
•Gasket | 1 | |
| 420643 |
•Gasket | 1 | |
| 20591544 (421121) |
•Gasket | 2 | |
| 421158 |
•Sealing ring | 1 | |
| 22194880 (421629) |
•Sealing ring | 1 | |
| 423123 |
•Sealing ring | 1 | |
| 11030779 |
•Gasket | 1 | |
| 925094 (465058) |
•O-ring | 1 | |
| 466405 |
•Sealing ring | 6 | |
| 466874 |
•Sealing ring | 6 | |
| 466922 |
•Sealing ring | 6 | |
| 478712 |
•Sealing ring | 1 | |
| 1556907 (469328) |
•Gasket | 1 | |
| 469455 |
•Sealing ring | 6 | |
| 469846 |
•Sealing ring | 2 | |
| 471321 |
•Sealing ring | 1 | |
| 471467 |
•Sealing ring | 2 | |
| 471626 |
•Sealing ring | 1 | |
| 471629 |
•Sealing ring | 1 | |
| 471816 |
•Sealing ring | 1 | |
| 471856 |
•Sealing ring | 5 | |
| 471956 |
•Sealing ring | 5 | |
| 977015 (925092) |
•O-ring | 1 | |
| 925257 |
•O-ring | 1 | |
| 1275379 (940096) |
•Gasket | 1 | |
| |
•Rubber cushion | 36 | |
| 477118 |
•Sealing ring | 1 | |
| |
•Seal | 1 | |
| |
•Gasket | 1 | |
| 13943353 |
•Rivet | 20 | |
| 13945512 |
•O-ring | 1 | |
| 13947281 |
•Gasket | 2 | |
| 13947282 |
•Gasket | 4 | |
| 947620 |
•Gasket | 16 | |
| 13947622 |
•Plane gasket | 2 | |
| 13947624 |
•Plane gasket | 1 | |
| 947626 |
•Gasket | 4 | |
| 13947627 (947627) |
•Plane gasket | 2 | |
| 13947629 |
•Plane gasket | 1 | |
| 949329 |
•Gasket | 1 | |
| 13949656 |
•O-ring | 5 | |
| 949658 |
•O-ring | 2 | |
| 949659 |
•O-ring | 4 | |
| 13949722 |
•O-ring | 1 | |
| 957173 |
•Gasket | 1 | |
| 968759 |
•O-ring | 1 | |
| |
•O-ring | 1 | |
| 1546221 |
•Sealing ring | 1 | |
| |
•Copper gasket | 24 | |
| |
•O-ring | 1 | |
| 276152 |
Repair kit | 1 | |
| |
Oil pump | ||
| 274122 |
Repair kit | 1 | |
| |
Turbocharger | ||
| 276835 |
Repair kit | 1 | |
| |
Water pump | ||
| 1676432 (421306) |
•Sealing ring | 1 | |
| |
•Pin | 1 | |
| 468249 |
•Shaft | 1 | |
| 958811 (469749) |
•Sealing ring | 1 | |
| 471493 |
•Lock ring | 1 | |
| 471495 |
•Lock spring | 1 | |
| 3183650 (1674237) |
•Cover | 1 | |
| 471497 |
•O-ring | 1 | |
| 471499 |
•Ball bearing | 1 | |
| 471626 |
•Sealing ring | 1 | |
| 469982 |
•Sealing ring | 4 | |
| 471637 |
•Sealing ring | 1 | |
| 471708 |
•Sealing ring | 1 | |
| 477059 |
•O-ring | 1 | |
| 977015 (925092) |
•O-ring | 1 | |
| 967344 |
•O-ring | 1 | |
| 1676432 (1545283) |
•Sealing ring | 1 | |
| 3183683 (1675808) |
•Impeller | 1 | |
| 11990043 |
Repair kit | 1 | |
| |
Water pump | ||
| 276816 |
Gasket kit | 2 | |
| |
Cylinder head | ||
| 11704496 |
Conversion kit | 1 | |
| 8192730 |
•Cylinder block | 1 | |
| 276894 |
•Main bearing | 7 | |
| 276890 |
•Thrust washer | 1 | |
| 8192698 |
•Push rod | 12 | |
| 24424609 (8192695) |
•Crankshaft | 1 | |
| 13965184 |
•Flange screw | 2 | |
| 11032801 |
•Baffle plate | 1 | |
| 843075 |
•Spacer sleeve | 2 | |
| 421750 |
•Washer | 1 | |
| 13965218 |
•Screw | 2 | |
| 946036 |
•Lock nut | 2 | |
| 13945408 |
•Nut | 2 |
