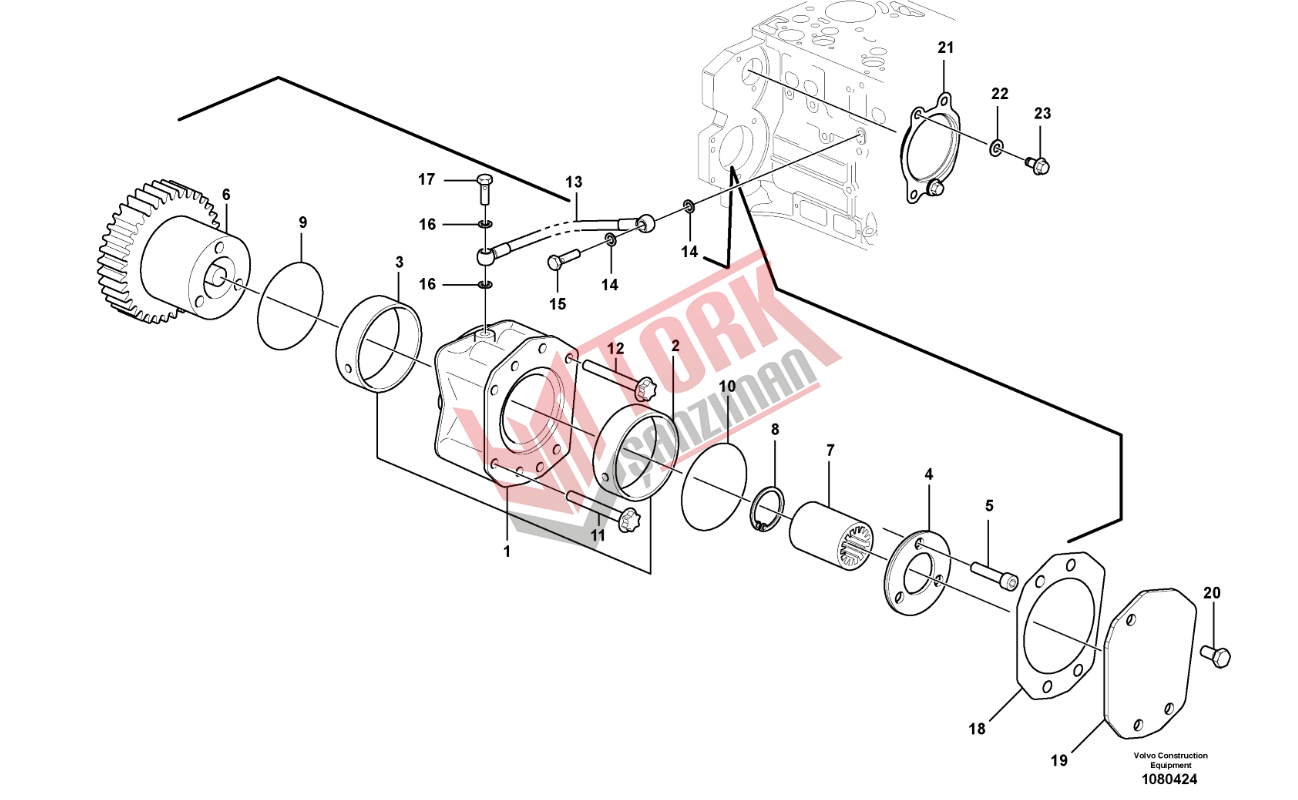

+90 552 671 32 12ENGINE > 215/200 Pump drive power take-off 17211902,17256091,17480978,17480980
WHEEL LOADER VOLVO L110H
BASIC MACHINE
PROD NO 33041, L110H, S/N 11491-
PROD NO 33041, L110H, S/N 631418-
CAB
PROD NO. 11294117
TRANSMISSION
PROD NO. 22726, HTE206E
PROD NO. 22727, HTL206D
DRIVE AXLES
PROD NO. 56005, AWB 31, front
PROD NO. 56006, AWB 30, rear
PROD NO. 56007, AWB 30, rear. 83041
LOADER UNIT
PROD NO. 33028, LU L110H LUB
PROD NO. 33038, LU L110H LB LUB
ENGINE
Part number. 17211902, 85819, D8, EU
Part number. 17256091, 86020, D8, EU
Part number. 17480978, 87254, D8, USA
Part number. 17480980, 87255, D8, USA
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 21250587 |
Hydraulic pump | 1 | |
| 1 | 20450805 |
•Bearing flange | 1 |
| 2 | 20450809 |
••Bushing | 1 |
| 3 | 20450807 |
••Bushing | 1 |
| 4 | 20450811 |
•Thrust washer | 1 |
| 5 | 20450822 |
•Screw | 3 |
| 6 | 21249506 |
•Gear | 1 |
| 7 | 20459123 |
Sleeve | 1 |
| 8 | 20450815 |
•Snap ring | 1 |
| 9 | 20450818 |
O-ring | 1 |
| 10 | 20450819 |
O-ring | 1 |
| 11 | 20450820 |
Screw | 2 |
| 12 | 22316512 (20450821) |
Six point screw | 2 |
| 13 | 21664964 |
Oil line | 1 |
| 14 | 13947621 |
•Plane gasket | 2 |
| 15 | 7025167 |
•Hollow screw | 1 |
| 16 | 13947281 |
•Gasket | 2 |
| 17 | 980973 (20460289) |
•Hollow screw | 1 |
| 18 | 22284380 (21754928) |
Gasket | 1 |
| 19 | |
Cover | 1 |
| 20 | 996781 |
Hexagon screw | 4 |
| 21 | 21721539 |
Cover | 1 |
| 22 | 973495 |
Washer | 2 |
| 23 | 21713747 |
Flange screw | 2 |
