WHEEL LOADER VOLVO L110G
BASIC MACHINE
PROD NO 33008, L110G, S/N 8001 - 9393
CAB
PROD NO. 11294046
TRANSMISSION
PROD NO. 22576, HTE206
DRIVE AXLES
PROD NO. 56005, AWB 31, front
PROD NO. 56006, AWB 30, rear
PROD NO. 56007, AWB 30, rear. 83041
LOADER UNIT
PROD NO. 33028, LU L110G LUB
PROD NO. 33038, LU 110G LB LUB, 84900
ENGINE
Part number 15165679, D8HLBE4, 84881
Part number 15083692, D8HLBE4, 85099
Part number 15165679, 85099
Part number 17230853, 86004
Part number 17231187 (replacement version)
Part number 15083692, 84881
Part number 17230850, 86005
Part number 17231169 (replacement version)

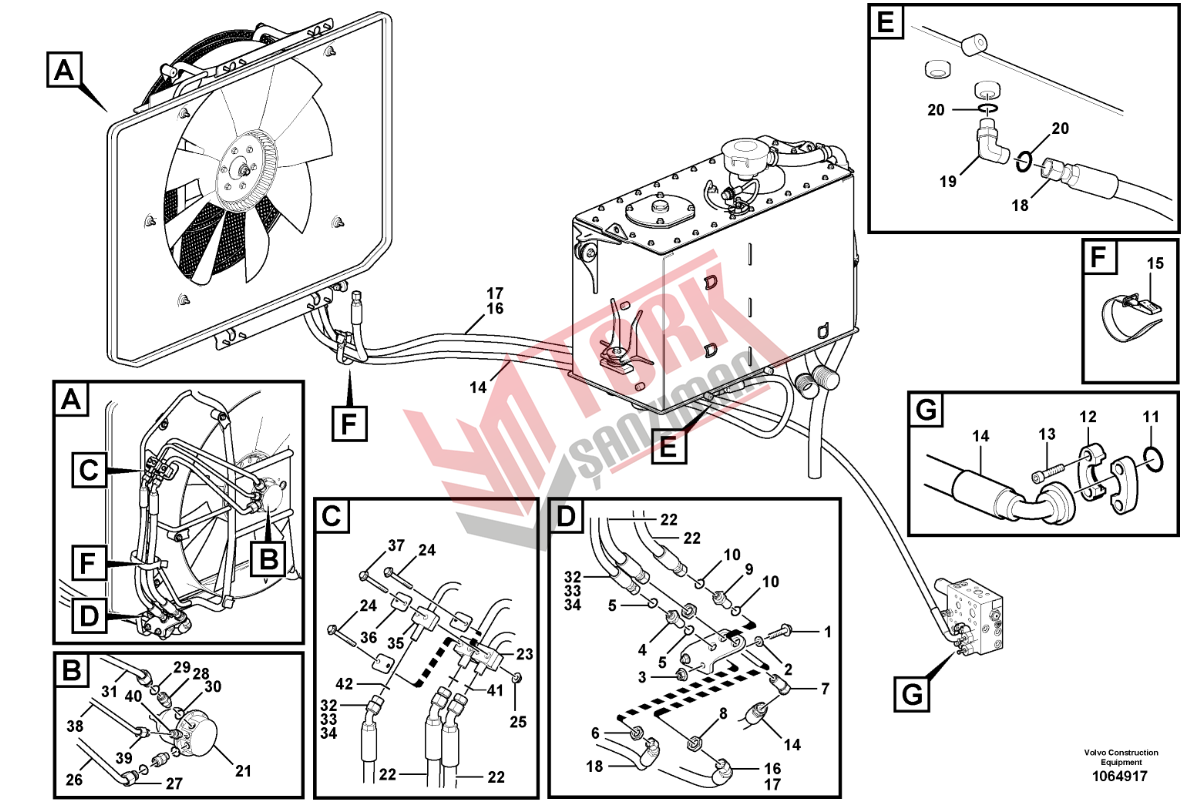

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 13965185 |
Screw | 2 |
| 2 | 930842 |
Plain washer | 2 |
| 3 | 13971095 |
Flange nut | 2 |
| 4 | 935425 |
Nipple | 1 |
| 5 | 990737 |
•O-ring | 2 |
| 6 | 935429 |
Lock nut | 1 |
| 7 | 937275 |
Elbow nipple | 1 |
| 8 | 13933867 |
Lock nut | 2 |
| 9 | 13933922 |
Nipple | 1 |
| 10 | 990738 |
•O-ring | 2 |
| 11 | 990742 |
O-ring | 1 |
| 12 | 935312 |
Flange half | 2 |
| 13 | 13946752 |
Screw | 4 |
| 14 | 16615833 |
Hose assembly | 1 |
| 15 | 11104606 |
Retaining strap | 2 |
| 16 | 11173667 |
Hose assembly | 1 |
| 17 | 927504 |
•Hydraulic hose | REQ |
| 18 | 11410241 |
Hose assembly | 1 |
| 19 | 13933865 |
Elbow nipple | 1 |
| 20 | 990737 |
•O-ring | 2 |
| 21 | |
Hydraulic motor | 1 |
| 22 | 15100056 |
Hose assembly | 2 |
| 23 | 15176944 |
Clamp | 2 |
| 24 | 13965177 |
Screw | 2 |
| 25 | 13949278 |
Flange lock nut | 4 |
| 26 | 16806591 |
Tube | 1 |
| 27 | 935332 |
•Nut | 1 |
| 28 | 936148 |
Nipple | 2 |
| 29 | 990739 |
•O-ring | 2 |
| 30 | 14211863 |
•Sealing ring | 2 |
| 31 | 16806587 |
Tube | 1 |
| 32 | 11163048 |
Hose assembly | 1 |
| 33 | 11148915 |
•Hose nipple | 1 |
| 34 | 927503 |
•Hydraulic hose | REQ |
| 35 | 4785459 |
Clamp | 1 |
| 36 | 11003046 |
Cover plate | 1 |
| 37 | 969981 |
Flange screw | 2 |
| 38 | 16806589 |
Tube | 1 |
| 39 | 13933904 |
•Fitting nut | 1 |
| 40 | 15128820 |
Nipple | 1 |
| 41 | 990738 |
O-ring | 2 |
| 42 | 990737 |
O-ring | 1 |
