WHEEL LOADER VOLVO L110G
BASIC MACHINE
PROD NO 33008, L110G, S/N 8001 - 9393
CAB
PROD NO. 11294046
TRANSMISSION
PROD NO. 22576, HTE206
DRIVE AXLES
PROD NO. 56005, AWB 31, front
PROD NO. 56006, AWB 30, rear
PROD NO. 56007, AWB 30, rear. 83041
LOADER UNIT
PROD NO. 33028, LU L110G LUB
PROD NO. 33038, LU 110G LB LUB, 84900
ENGINE
Part number 15165679, D8HLBE4, 84881
Part number 15083692, D8HLBE4, 85099
Part number 15165679, 85099
Part number 17230853, 86004
Part number 17231187 (replacement version)
Part number 15083692, 84881
Part number 17230850, 86005
Part number 17231169 (replacement version)

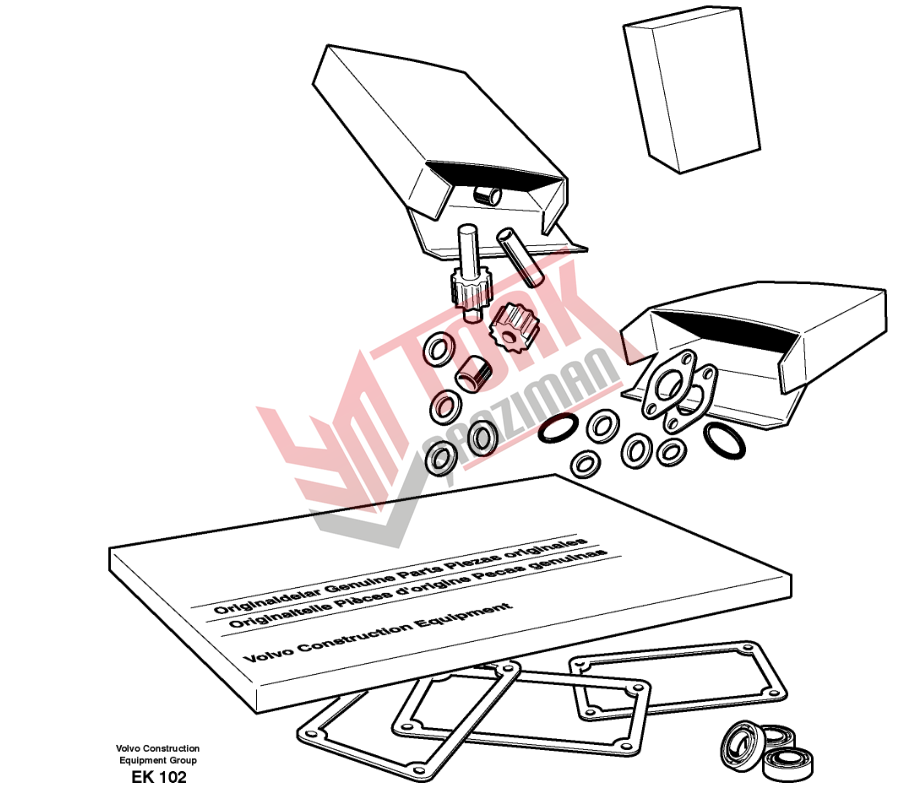

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 21882615 |
Cylinder liner kit | 1 | |
| 17477421 |
Cylinder head overhaul kit | 1 | |
| 21751313 |
•Valve stem seal | 24 | |
| 21714188 |
•Valve guide | 24 | |
| 20792992 |
•Bolt | 6 | |
| 20793002 |
•Bolt | 20 | |
| 20788793 |
•Gasket | 1 | |
| 21038626 |
•Gasket | 1 | |
| 945495 |
•Snap ring | 2 | |
| 993447 |
•Flange screw | 14 | |
| 21061009 |
•Sealing ring | 2 | |
| 22250691 |
•Sealing ring | 2 | |
| 21108676 |
•Sealing ring | 2 | |
| 996449 |
•Gasket | 2 | |
| 968567 |
•O-ring | 2 | |
| 968567 |
•O-ring | 6 | |
| 21775056 |
•Seal | 6 | |
| 22692397 |
•Sealing ring | 6 | |
| 22692397 |
•Sealing ring | 6 | |
| 20939275 |
•O-ring | 6 | |
| 21714224 |
•Fuel pipe | 1 | |
| 21714226 |
•Fuel pipe | 2 | |
| 21714234 |
•Fuel pipe | 2 | |
| 21714242 |
•Fuel pipe | 1 | |
| 20531832 |
•Gasket | 2 | |
| 22262916 |
•Intake gasket | 6 | |
| 21746548 |
•Gasket | 1 | |
60112892 |
•Flange screw | 12 | |
| 21715435 |
•Gasket | 3 | |
| 21242584 |
•Gasket | 1 | |
| 21108673 |
•Sealing ring | 4 | |
| 21242584 |
•Gasket | 1 | |
| 21723873 |
•Gasket | 1 | |
| 21905341 |
•Gasket | 1 | |
| 17477428 |
Engine overhaul kit | 1 | |
| 21882615 |
•Cylinder liner kit | 1 | |
| 17477421 |
•Cylinder head overhaul kit | 1 | |
| 21486084 |
•Lip seal | 1 | |
| 13947621 |
•Plane gasket | 2 | |
| 13947281 |
•Gasket | 2 | |
| 20450784 |
•Labyrinth ring | 1 | |
| 20459994 |
•Sealing ring | 1 | |
| 20450786 |
•Sealing ring | 1 | |
| 993681 |
•Gasket | 1 | |
| 20405915 |
•Gasket | 1 | |
| 20405825 |
•Gasket | 1 | |
| 993600 |
•Gasket | 1 | |
| 21043750 |
•Gasket | 1 | |
| 20793728 |
•Gasket | 1 | |
| 20834438 |
•O-ring | 1 | |
| 21022795 |
•Sealing ring | 2 | |
| 993677 |
•Gasket | 2 | |
| 21108673 |
•Sealing ring | 2 | |
| 993605 |
•Gasket | 2 | |
| 21061009 |
•Sealing ring | 3 | |
| 21632658 |
•Gasket | 1 | |
| 20798938 |
•Sealing ring | 1 | |
| 20794103 |
•Gasket | 1 | |
| 21142470 |
•Gasket | 1 | |
| 21061009 |
•Sealing ring | 2 | |
| 21723241 |
•Ring | 3 |
