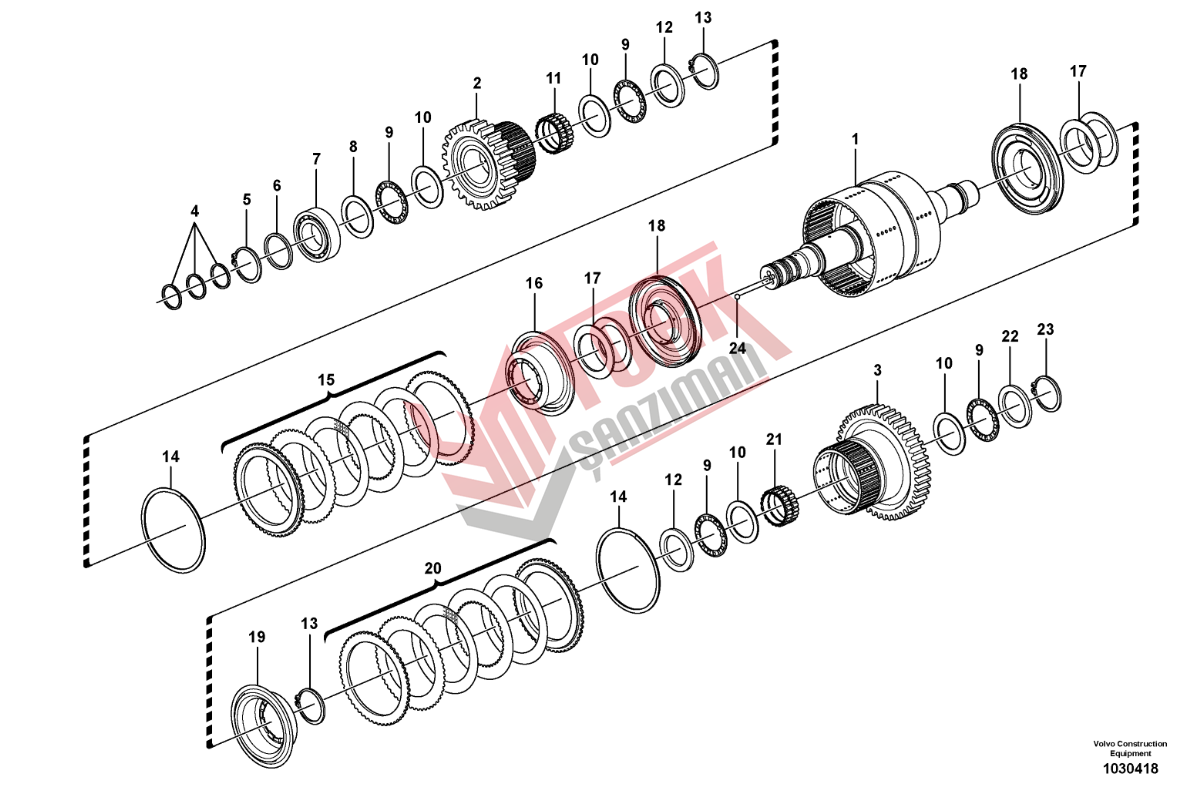

+90 552 671 32 12TRANSMISSION, HYDRAULIC CONTROL > 421/900 Hydraulic clutch, 3rd/4th speed 22585
WHEEL LOADER VOLVO L105
BASIC MACHINE
PROD NO 54500, S/N 1019 - 1245
CAB
PROD NO 54501
TRANSMISSION
PROD NO 54585, HTE203
DRIVING AXLE
PROD NO 54504, LF1701, front
PROD NO 54503, LR1701, rear
LOADING UNIT
PROD NO 54505
ENGINE
PART NO. 17232411, Type D7
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 15192646 |
Hydraulic clutch | 1 | |
| 1 | 15156906 |
•Clutch shaft | 1 |
| 2 | 11418028 |
•Gear | 1 |
| 3 | 11418029 |
•Gear | 1 |
| 4 | 11038835 |
•Piston ring | 3 |
| 5 | 11037179 |
•Snap ring | 1 |
| 6 | 13949851 |
•Washer | 1 |
| 7 | SA7241-00421 |
•Roller bearing | 1 |
| 8 | 15175531 |
•Thrust washer | 1 |
| 9 | 4785772 |
•Needle bearing | 4 |
| 10 | 4871338 |
•Thrust washer | 4 |
| 11 | 11144006 |
•Needle bearing | 1 |
| 12 | 11418206 |
•Thrust washer | 2 |
| 13 | 11037594 |
•Lock ring | 2 |
| 14 | 15069329 |
•Lock ring | 2 |
| 15 | 15017294 |
•Disc kit | 1 |
| 16 | 11418263 |
•Piston | 1 |
| 17 | 11418390 |
•Disc spring | 14 |
| 17 | 15169605 |
•Disc spring | 14 |
| 18 | 11418407 |
•Piston | 2 |
| 19 | 11418262 |
•Piston | 1 |
| 20 | 15017192 |
•Disc kit | 1 |
| 21 | 11145380 |
•Needle holder | 1 |
| 22 | 15175558 |
•Thrust washer | 1 |
| 23 | 11037181 |
•Snap ring | 1 |
| 24 | 11037637 |
•Ball | 2 |
