WHEEL LOADER VOLVO L105
BASIC MACHINE
PROD NO 54500, S/N 1019 - 1245
CAB
PROD NO 54501
TRANSMISSION
PROD NO 54585, HTE203
DRIVING AXLE
PROD NO 54504, LF1701, front
PROD NO 54503, LR1701, rear
LOADING UNIT
PROD NO 54505
ENGINE
PART NO. 17232411, Type D7

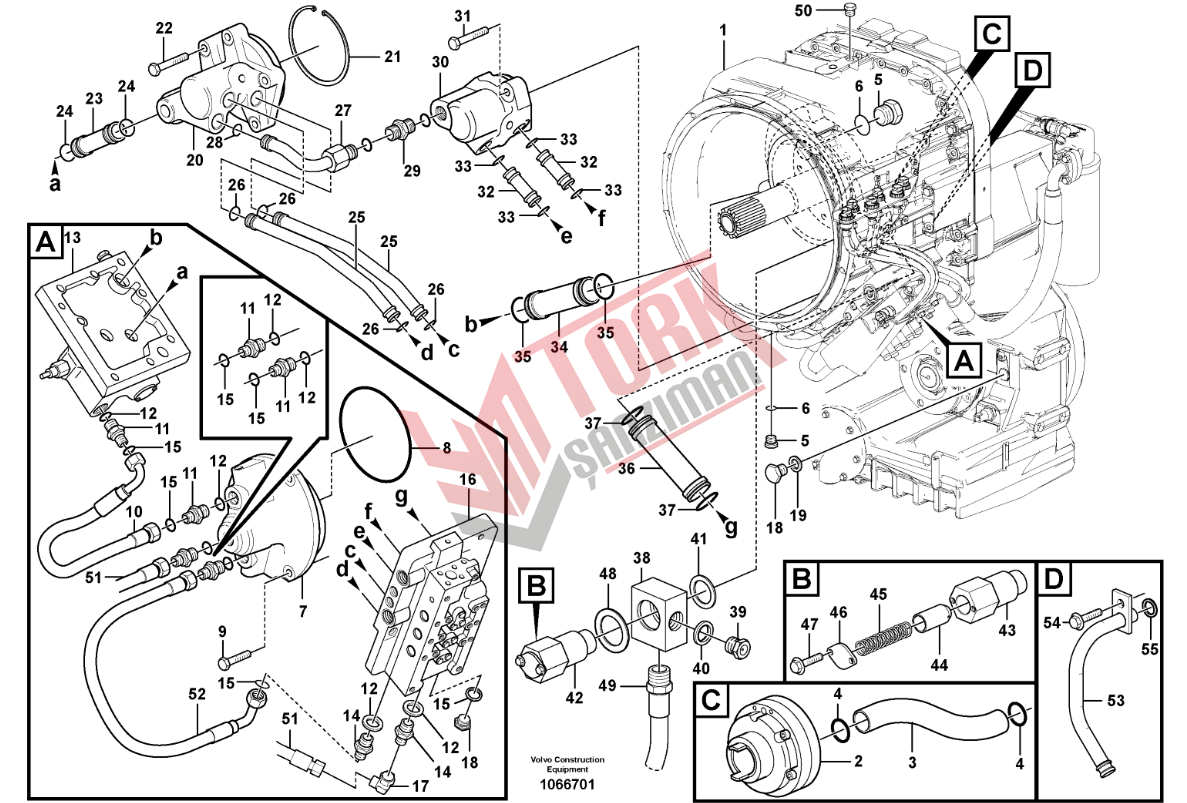

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Housing | 1 |
| 2 | |
Pump | 1 |
| 3 | 11144497 |
Tube | 1 |
| 4 | 976041 |
O-ring | 1 |
| 5 | 13968614 |
Plug | 2 |
| 6 | 13968561 |
O-ring | 2 |
| 7 | 15147262 |
Oil distributor | 1 |
| 8 | 925263 |
O-ring | 1 |
| 9 | 13947760 |
Screw | 4 |
| 10 | 11418052 |
Hose assembly | 1 |
| 11 | 957031 |
Nipple | 4 |
| 12 | 958226 |
O-ring | 4 |
| 13 | 11037252 |
Lub Oil Valve | 1 |
| 14 | 981018 |
Nipple | 2 |
| 15 | 4881251 |
Plane gasket | 4 |
| 16 | 11418453 |
Connection plate | 1 |
| 17 | 13964016 |
Nipple | 1 |
| 18 | 914392 |
Plug | 2 |
| 19 | 4881251 |
Plane gasket | 1 |
| 20 | 15142570 |
Oil distributor | 1 |
| 21 | 11037186 |
Snap ring | 1 |
| 22 | 13947760 |
Screw | 4 |
| 23 | 11144081 |
Tube | 1 |
| 24 | 13949656 |
O-ring | 2 |
| 25 | 11144407 |
Pipe | 2 |
| 26 | 968007 |
O-ring | 4 |
| 27 | 11144406 |
Pipe | 1 |
| 28 | 968007 |
O-ring | 1 |
| 29 | 931227 |
Nipple | 1 |
| 931211 |
•O-ring | 1 | |
| 931218 |
•Back-up ring | 1 | |
| 30 | 15151026 |
Oil distributor | 1 |
| 31 | 13947760 |
Screw | 2 |
| 32 | 11144077 |
Tube | 2 |
| 33 | 968007 |
O-ring | 4 |
| 34 | 11144086 |
Tube | 1 |
| 35 | 944126 |
O-ring | 2 |
| 36 | 11144087 |
Tube | 1 |
| 37 | 944126 |
O-ring | 2 |
| 38 | 11144858 |
Block | 1 |
| 39 | 11144859 |
Plug | 1 |
| 40 | 13947627 |
Plane gasket | 1 |
| 41 | 13960150 |
Washer | 1 |
| 42 | 11144910 |
Safety valve | 1 |
| 43 | |
•Valve housing | 1 |
| 44 | 11036776 |
•Piston | 1 |
| 45 | 11036777 |
•Spring | 1 |
| 46 | 4718062 |
•Cover | 1 |
| 47 | 13946544 |
•Screw | 2 |
| 48 | 120291 |
Washer | 1 |
| 49 | 11144952 |
Hose assembly | 1 |
| 50 | 479956 |
Plug | 1 |
| 51 | 11145413 |
Hose assembly | 1 |
| 52 | 11418052 |
Hose assembly | 1 |
| 53 | 11418456 |
Pipe | 1 |
| 54 | 946440 |
Flange screw | 1 |
| 55 | 968007 |
O-ring | 1 |
