WHEEL LOADER VOLVO L105
BASIC MACHINE
PROD NO 54500, S/N 1019 - 1245
CAB
PROD NO 54501
TRANSMISSION
PROD NO 54585, HTE203
DRIVING AXLE
PROD NO 54504, LF1701, front
PROD NO 54503, LR1701, rear
LOADING UNIT
PROD NO 54505

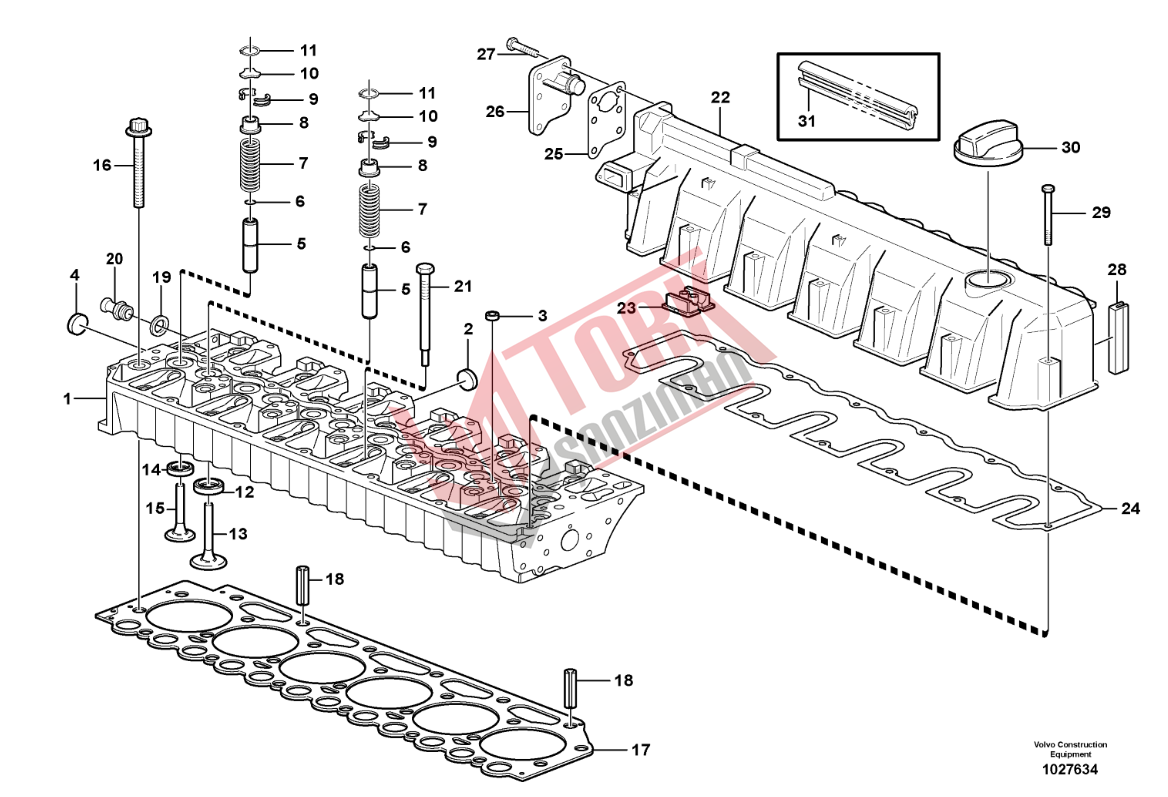

ENGINE
PART NO. 17232411, Type D7
| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 20799762 |
Cylinder head | 1 |
| 2 | 20799722 |
•Plug | 5 |
| 3 | 20412733 |
•Core plug | 5 |
| 4 | 20914266 |
•Core Plug | 2 |
| 5 | 20405897 |
•Valve guide | 12 |
| 6 | 11700348 |
•O-ring | 12 |
| 7 | 11700347 |
•Valve spring | 12 |
| 8 | 20847155 |
•Retainer | 12 |
| 9 | 11700345 |
•Valve sleeve | 24 |
| 10 | 20840807 |
•Thrust washer | 12 |
| 11 | 20840772 |
•Lock ring | 12 |
| 12 | 20459962 |
•Valve seat | 6 |
| 13 | 20758481 |
•Inlet valve | 6 |
| 14 | 20845144 |
•Valve seat | 6 |
| 15 | 21739130 |
•Exhaust valve | 6 |
| 16 | 11700334 |
Screw | 26 |
| 17 | 20943385 |
Cylinder head gasket | 1 |
| 20949868 |
Cylinder head gasket | 1 | |
| 20943389 |
Cylinder head gasket | 1 | |
| 18 | 20405521 |
Guide pin | 2 |
| 19 | 993358 |
Gasket | 1 |
| 20 | 20805523 |
Sealing kit | 1 |
| 21 | 20405895 |
Plug | 6 |
| 22 | 21455720 |
Valve cover | 1 |
| 23 | 20412600 |
•Cap | 1 |
| 24 | 20792871 |
•Gasket | 1 |
| 25 | 20840801 |
•Gasket | 1 |
| 26 | 20933359 |
•Oil Separator | 1 |
| 27 | 20797542 |
•Hexagon screw | 6 |
| 28 | 20847667 |
•Sealing | 1 |
| 29 | 22278501 (21145471) |
Hexagon screw | 13 |
| 30 | 20412589 |
Filler cap | 1 |
| 31 | 20996748 |
Sealing strip | 1 |
