A60H
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

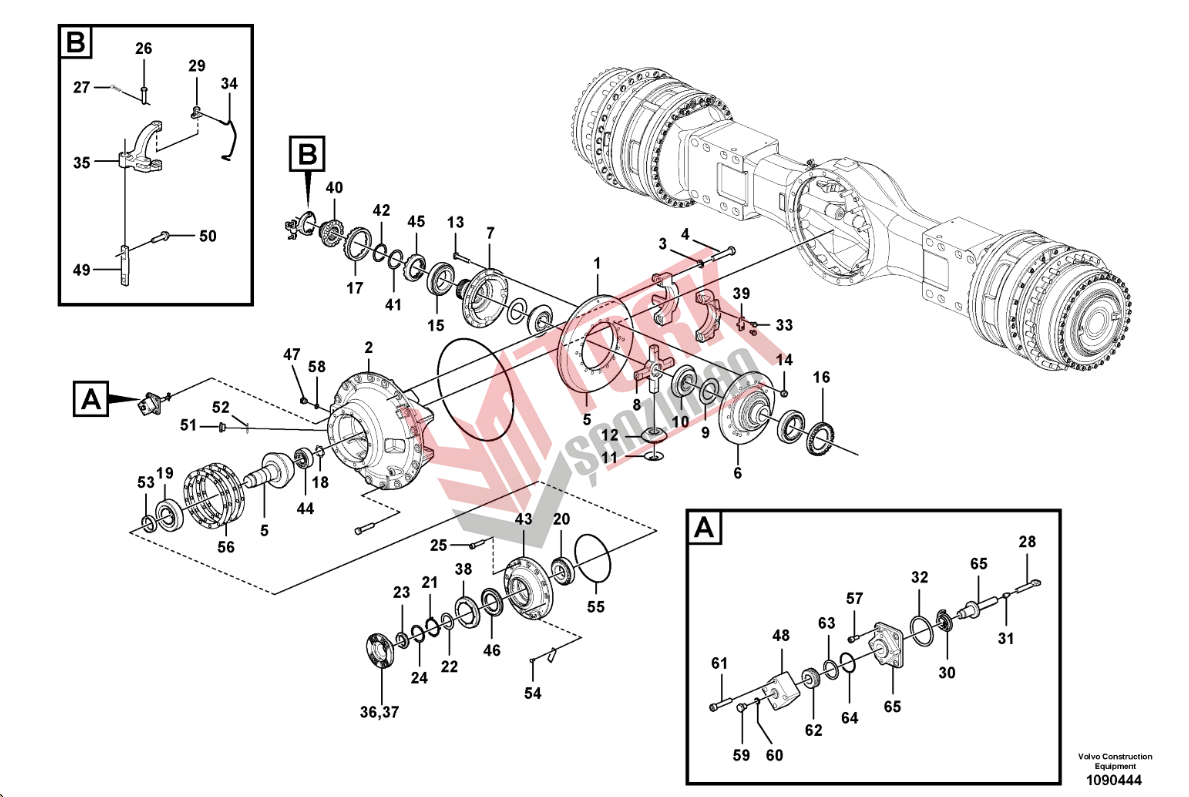

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | 17260015 |
Differential carrier | 1 |
| 2 | 11168118 |
•Centre housing | 1 |
| 3 | 930853 |
••Plain washer | 4 |
| 5 | 13963364 |
••Hexagon screw | 4 |
| 5 | 17247717 |
•Drive gear set | 1 |
| 6 | 15155278 |
•Differential housing | 1 |
| 7 | 15156306 |
•Differential housing | 1 |
| 8 | 17467166 |
•Spider | 1 |
| 9 | 15156391 |
•Thrust washer | 2 |
| 10 | 15155458 |
•Differential side gear | 2 |
| 11 | 17203642 |
•Thrust washer | 4 |
| 12 | 11103175 |
•Differential side gear | 4 |
| 13 | 1524673 |
•Screw | 16 |
| 14 | 13946363 |
•Lock nut | 16 |
| 15 | 184637 |
•Roller bearing | 2 |
| 16 | 1523736 |
•Setting nut | 1 |
| 17 | 11102411 |
•Bearing adjuster | 1 |
| 18 | 81241285 |
•Snap ring | 1 |
| 19 | 1523666 |
•Roller bearing | 1 |
| 20 | 11035994 |
•Roller bearing | 1 |
| 21 | 1523318 |
•Lock washer | 1 |
| 21 | 1523319 |
•Lock washer | 1 |
| 22 | 1523317 |
•Washer | 1 |
| 23 | 1522293 |
•Nut | 1 |
| 24 | 914484 |
•Snap ring | 1 |
| 25 | 949544 |
•Hex. socket screw | 12 |
| 26 | 13964846 |
•Clevis pin | 1 |
| 27 | 907822 |
•Split pin | 1 |
| 28 | 11102129 |
•Selector bar | 1 |
| 29 | 1523087 |
•Pin | 2 |
| 30 | 17262158 |
•Return Spring | 1 |
| 31 | 13962985 |
•Set screw | 1 |
| 32 | 925074 |
•O-ring | 1 |
| 33 | 996328 |
•Flange screw | 4 |
| 34 | 17421759 |
•Lock brace | 1 |
| 35 | 11102421 |
•Selector fork | 1 |
| 36 | 11102881 |
•Companion flange | 1 |
| 37 | 11036504 |
••Companion flange | 1 |
| 38 | |
••Dust cover | 1 |
| 39 | 1524631 |
•Lock plate | 2 |
| 40 | 11102410 |
•Companion flange | 1 |
| 41 | 1522102 |
•Washer | 1 |
| 42 | 945506 |
•Snap ring | 1 |
| 43 | 17258937 |
Pinion bearing sleeve | 1 |
| 44 | 17466235 |
Roller bearing | 1 |
| 45 | 11102409 |
Companion flange | 1 |
| 46 | 17264219 |
Sealing ring | 1 |
| 47 | 11168092 |
Plug | 1 |
| 48 | 17246273 |
Cover | 1 |
| 49 | 11102128 |
Selector rail | 1 |
| 50 | 996704 |
Flange screw | 2 |
| 51 | 914396 |
Plug | 1 |
| 52 | 13947630 |
Gasket | 1 |
| 53 | 1523232 |
Spacer sleeve | REQ |
| 53 | 1523233 |
Spacer sleeve | REQ |
| 53 | 1523234 |
Spacer sleeve | REQ |
| 53 | 1523235 |
Spacer sleeve | REQ |
| 53 | 1523236 |
Spacer sleeve | REQ |
| 53 | 1523237 |
Spacer sleeve | REQ |
| 53 | 1523623 |
Spacer sleeve | REQ |
| 53 | 1523624 |
Spacer sleeve | REQ |
| 54 | 950891 |
Drive screw | 2 |
| 55 | 60112503 |
O-ring | 1 |
| 56 | 1523190 |
Shim | REQ |
| 56 | 1523192 |
Shim | REQ |
| 56 | 1523193 |
Shim | REQ |
| 57 | 13967630 |
Allen Hd Screw | 4 |
| 58 | 13947622 |
Plane gasket | 1 |
| 59 | 960629 |
Plug | 1 |
| 60 | 13947282 |
Gasket | 1 |
| 61 | 959244 |
Allen Hd Screw | 4 |
| 62 | 17246312 |
Piston head | 1 |
| 63 | 17406753 |
O-ring | 1 |
| 64 | 983499 |
O-ring | 1 |
| 65 | 17304489 |
Bracket | 1 |
| 66 | 17304833 |
Piston | 1 |
| |
Allen Hd Screw | ||
| |
Part Plate | ||
| |
Drive Screw | ||
| |
O-ring | ||
| |
O-ring | ||
| |
O-ring | ||
| |
Washer | ||
| |
Snap Ring | ||
| |
Differential Si | ||
| |
Differential Pi | - |
