A60H
Aradığınızı bulamıyor musunuz?
Hemen bizi arayın yardımcı olalım
+90 552 671 32 12

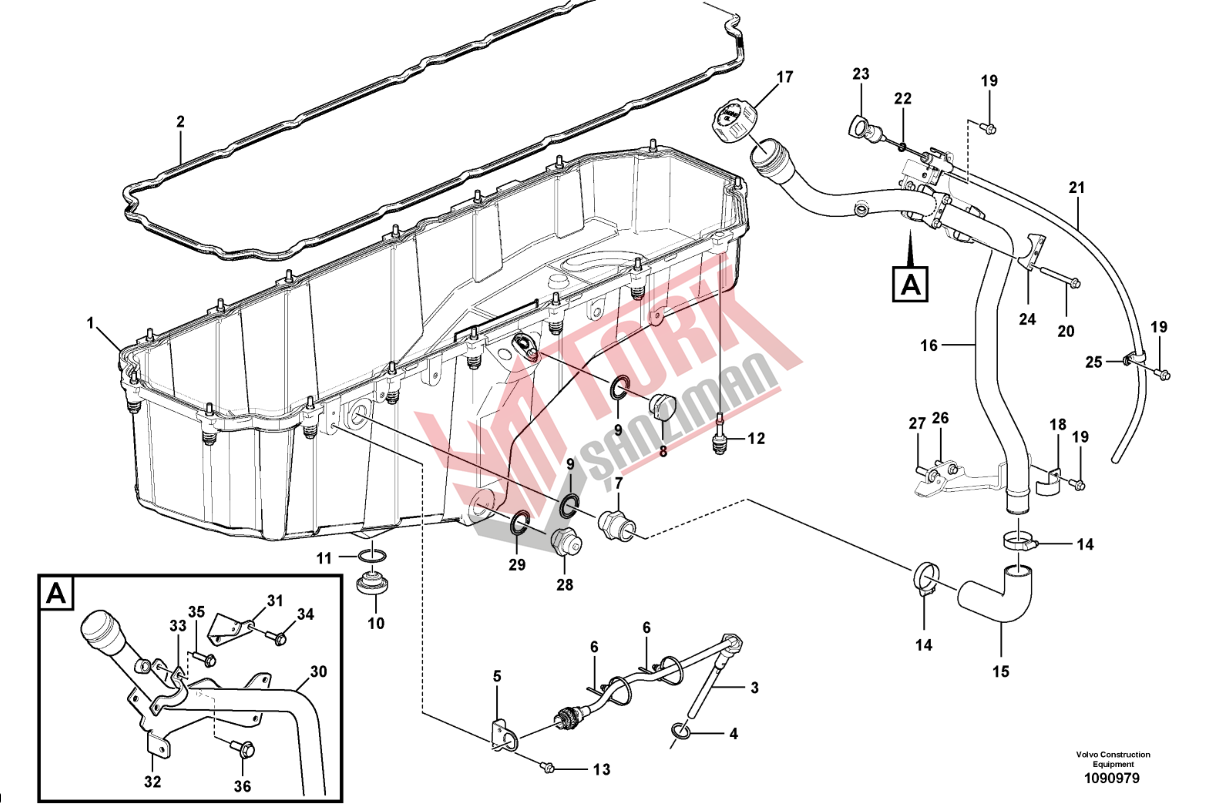

| SEÇ/NO | PARÇA KOD | PARÇA ADI | PARÇA SAYISI |
|---|---|---|---|
| 1 | |
Oil Pan | 1 |
| 2 | 20734156 |
Sealing strip | 1 |
| 3 | 11423761 |
Oil level sensor | 1 |
| 4 | 949329 |
Gasket | 1 |
| 5 | 3988328 |
Bracket | 1 |
| 6 | 980881 |
Cable tie | 1 |
| 7 | 11162582 |
Nipple | 1 |
| 8 | 13960638 |
Plug | 1 |
| 9 | 982509 |
Gasket | 2 |
| 10 | 11127354 |
Plug | 1 |
| 11 | 13948610 |
O-ring | 1 |
| 12 | 22859764 (21035968) |
Flange screw | 16 |
| 13 | 984733 |
Flange screw | 1 |
| 14 | 994561 |
Hose clamp | 2 |
| 15 | 17233199 |
Hose | 1 |
| 16 | 17221067 |
Oil filler pipe | 1 |
| 17 | 20807510 |
Oil filler cap | 1 |
| 20365079 |
•Rubber washer | 1 | |
| 18 | 967943 |
Clamp | 1 |
| 19 | 984734 |
Flange screw | 2 |
| 20 | 994388 |
Flange screw | 4 |
| 21 | 17215824 |
Tube | 1 |
| 22 | 944124 |
•O-ring | 1 |
11129411 |
•Anchorage | 1 | |
| 23 | 17215824 |
Tube | 1 |
| 944124 |
•O-ring | 1 | |
| 980833 |
•Tube | REQ | |
11129411 |
•Anchorage | 1 | |
| 24 | 15161227 |
Clamp | 4 |
| 25 | 13949746 |
Clamp | 1 |
| 26 | 984736 |
Flange screw | 1 |
| 27 | 984754 |
Flange screw | 1 |
| 28 | 15128018 |
Valve | 1 |
| 29 | 982509 |
•Gasket | 1 |
| 30 | 17480800 |
Oil filler pipe | 1 |
| 31 | 17481071 |
Bracket | 1 |
| 32 | 17480801 |
Bracket | 1 |
| 33 | 15148247 |
Clamp | 2 |
| 34 | 984734 |
Flange screw | 2 |
| 35 | 984735 |
Flange screw | 4 |
| 36 | 984813 |
Flange screw | 2 |
